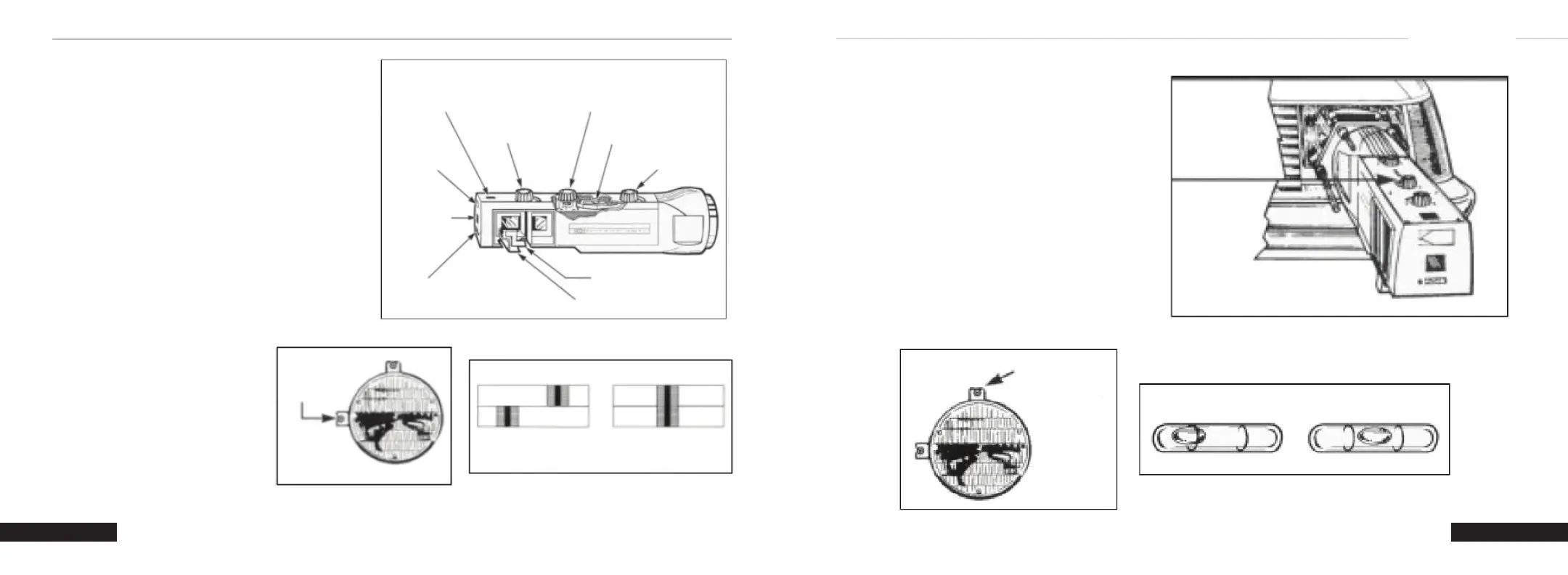

TO SET HEADLIGHT HORIZONTAL AIM
1. Set the horizontal aim knob to zero, and
check that the split image target lines are
visible in the horizontal aim port hole. If
necessary, rotate each aimer slightly to locate
the target.
2. Turn the horizontal adjusting screw at side
of headlight until the split image of target line
appears in mirrors as one solid line. To
remove “backlash”, make a nal adjustment
by turning the screw in a clockwise direction.
3. Repeat these steps with the
opposite side aimer and
headlight.
HORIZONTAL AIM PORT HOLE VERTICAL AIM KNOB
VERTICAL AIM VIALHORIZONTAL AIM KNOB
UNIT
IDENTIFICATION
FLOOR LEVEL DIAL
FLOOR SLOPE
PORT HOLE
FLOOR SLOPE LEVEL VIAL
VACUUM RELEASE BUTTON
PISTON HANDLE
B4A AIMER
HORIZONTAL
ADJUSTING
SCREW
SPLIT IMAGE
NOT ALIGNED
SPLIT IMAGE
ALIGNED
1.
2.
2.
Page 41
Page 42
TO SET HEADLIGHT VERTICAL AIM
1. Set the vertical aim knob to zero.
2. Turn vertical adjusting screw at the top of the
headlight until the level bubble is centered
between the lines. To remove “backlash”, make
nal adjustment by turning screw in a clockwise
direction.
3. Repeat these steps with the opposite side aimer
and headlight.
4. Recheck target alignment on both aimers and
readjust horizontal aim if necessary.
5. Remove aimer by holding aimer securely and
pressing “Vacuum Release” button located on the
piston handle.
1.
VERTICAL
AIM KNOB
VERTICAL
ADJUSTING
SCREW
2.
2.
C250 HEADLIGHTS
