SETTING PERFORATORS
Upper and lower hubs can be positioned on the shaft by unscrewing the 2mm-grub screw.
Slide the hub with the blade attached along, the shaft into position to correspond to the
work using the scale as a guide. For example, to perforate 20mm from the edge of an A4
sheet, you would set the blade at 190mm (210 minus 20). When positioned re-tighten the
2mm-grub screw. Important - Do Not Over Tighten This Grub Screw
Slide the hub with the anvil, up to the perforator blade and the remaining upper and lower
hubs, set as the drawing, remembering to spread them to support the sheet fully across its
width.
Clip the perforator stripper adjacent to the upper hub as shown. Plug the unit into
position, fit the sheet smoother into position to hold the sheets down and run the machine
at the slow speed to check position.
Adjust the backstop and side guide to suit the work.
For work longer than the backstop will allow, remove the backstop and use the extended
backstop that is located underneath the catch tray.
There is a full range of perforator blades available as follows:
For fine perforation 56 tooth - Part Number 1.99-41
For Paper 28 tooth - Part Number 1.99-12
For heavier Stock 20 tooth - Part Number 1.99-10
For use with blades Anvil - Part Number 1.99-35
Slitter set for cutting - Part Number 1.99-13
SCORING

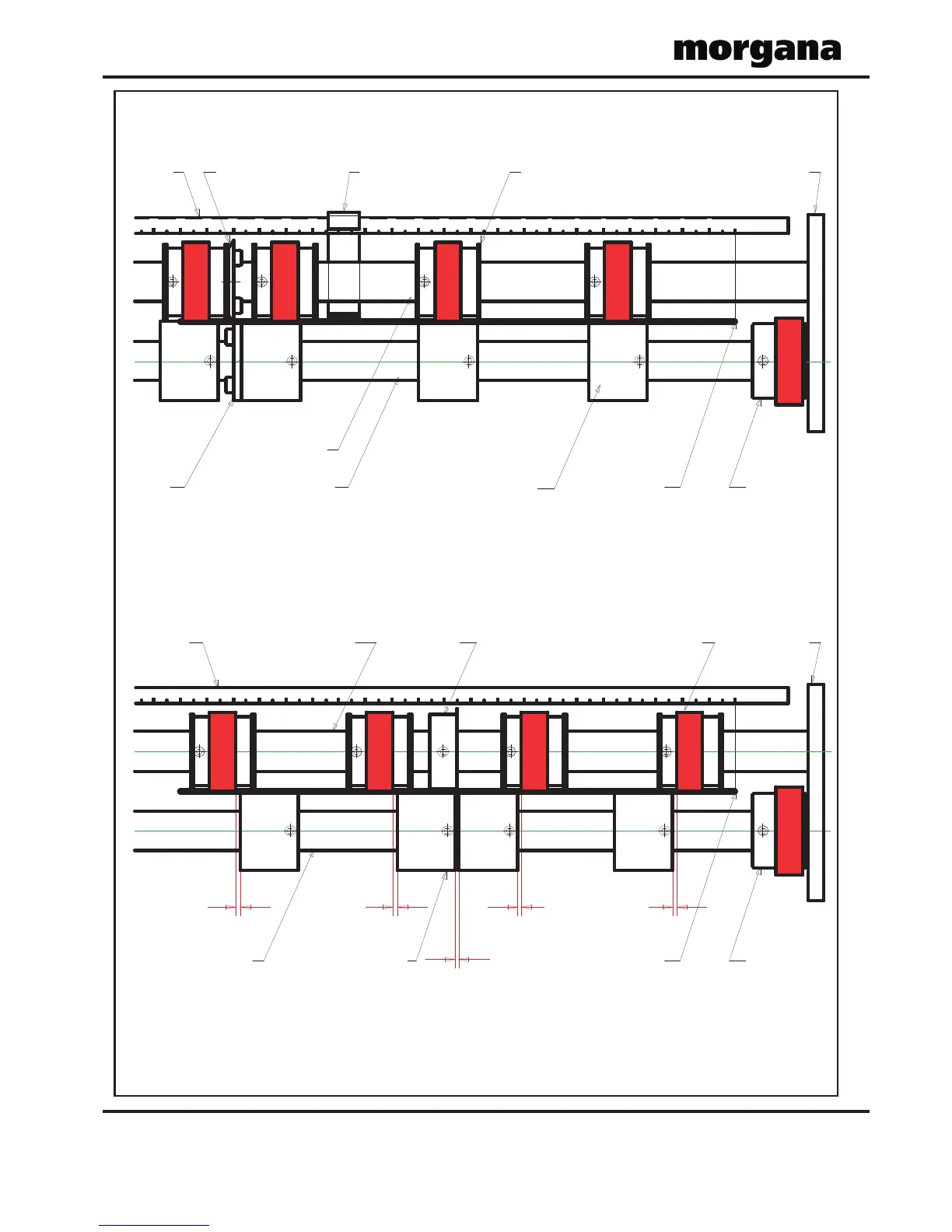

It is possible to score work using the plug in perforator. The scorers are split in two
halves, fitted to the upper shaft and set as shown in the drawing using the scale on the
unit as a guide to position. The lower hubs are moved up to but just clear of the scoring
blade. The actual gap is critical and may require some experimentation to obtain a
satisfactory score line. As with perforating, the remaining hubs must be spread to support
the sheet fully across its width.
Scorers available:
Type A Part Number 6.99-05 for most card
Type B Part Number 6.99-06 for deep score
Type D Part Number 6.99-09 for paper
