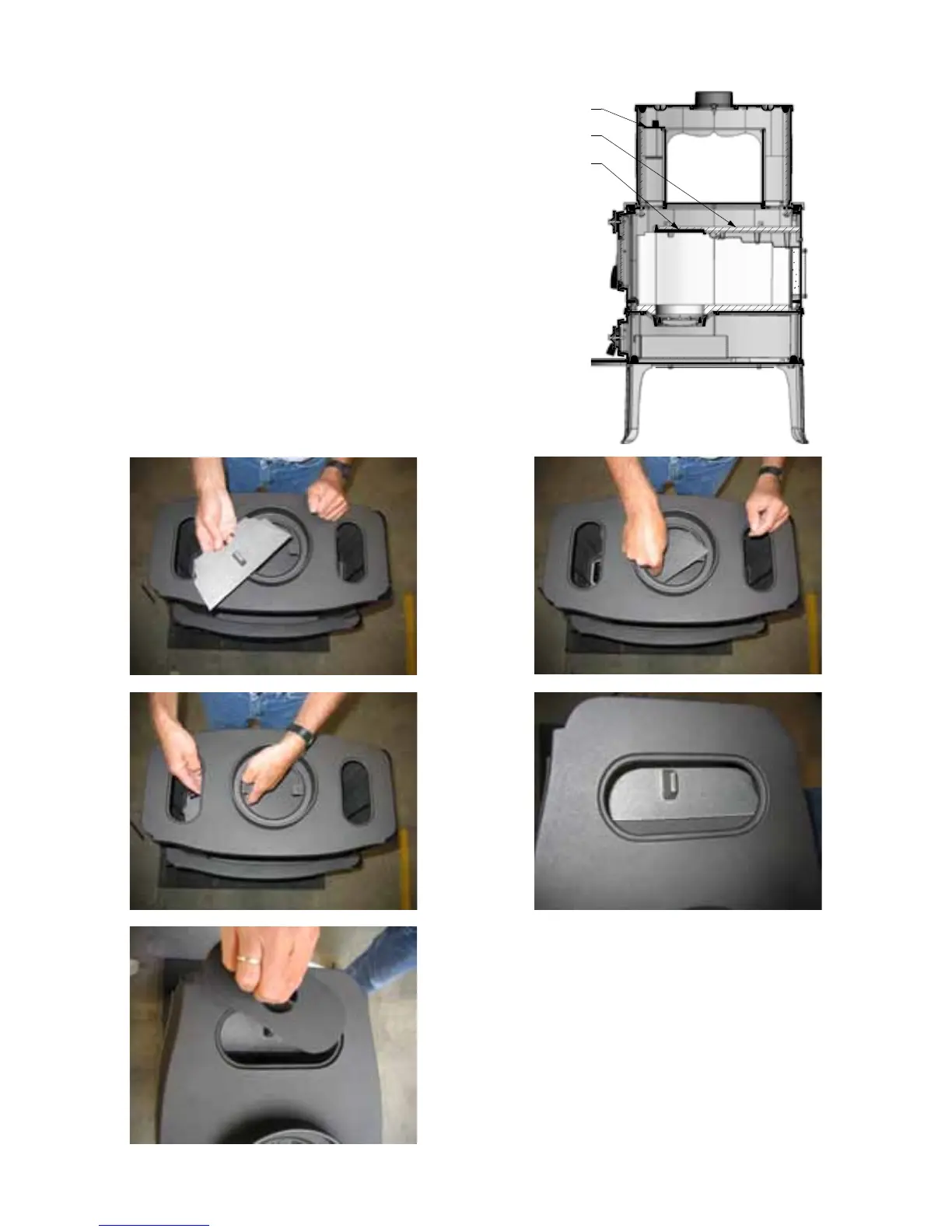

Positioning the inside Smoke Cover
Place the inside smoke cover (3) marked 2118, by the smoke
vent in front of the stove. This is done by leading it down
through the flue collar before fitting the pipe, as per the
drawing and pictures below.
