56 Appendices

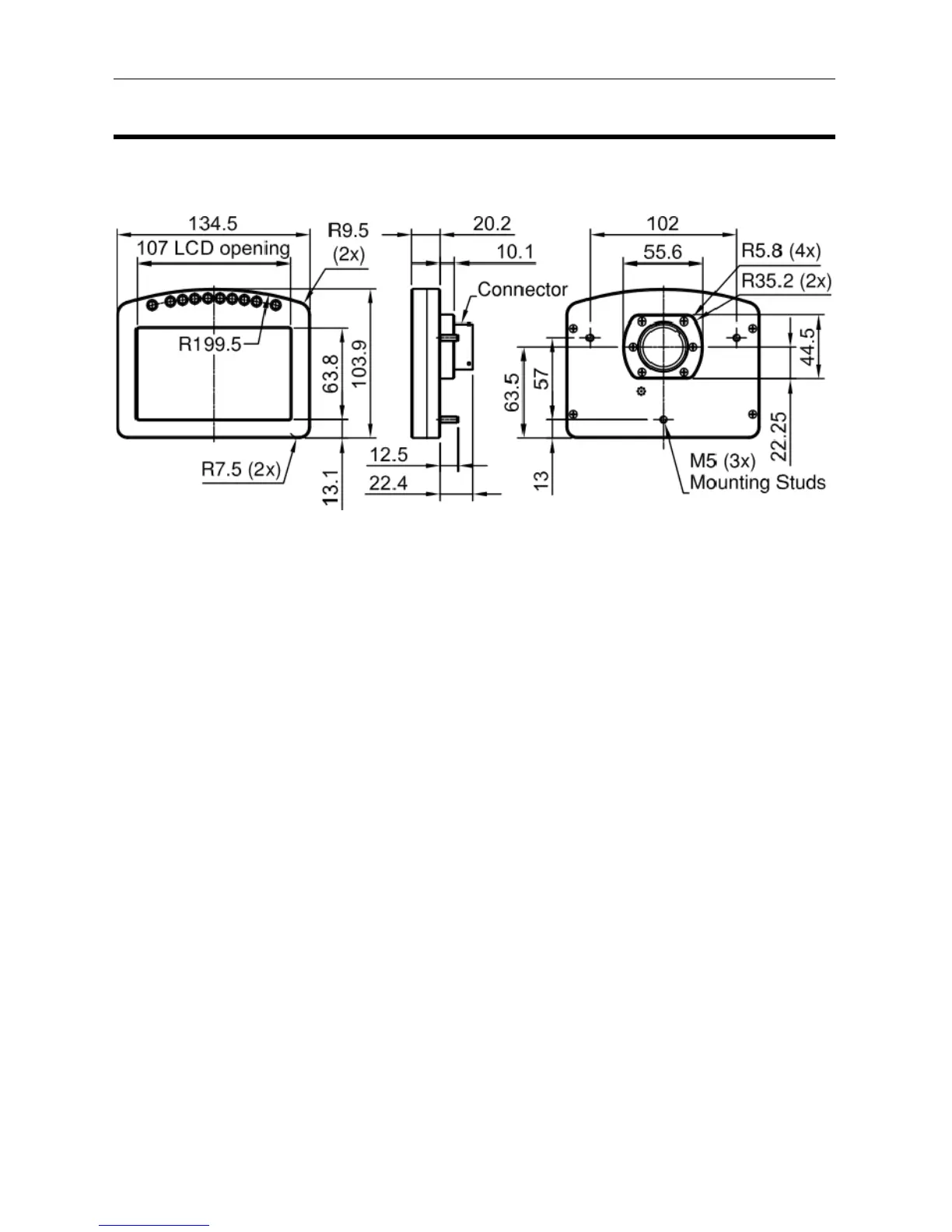

Mounting Dimensions
C185
Note:
• All dimensions in [mm]
• Ensure product is not stressed when mounted
• Dimensions indicate actual product size, allow for clearance when
mounting
