10 Outputs

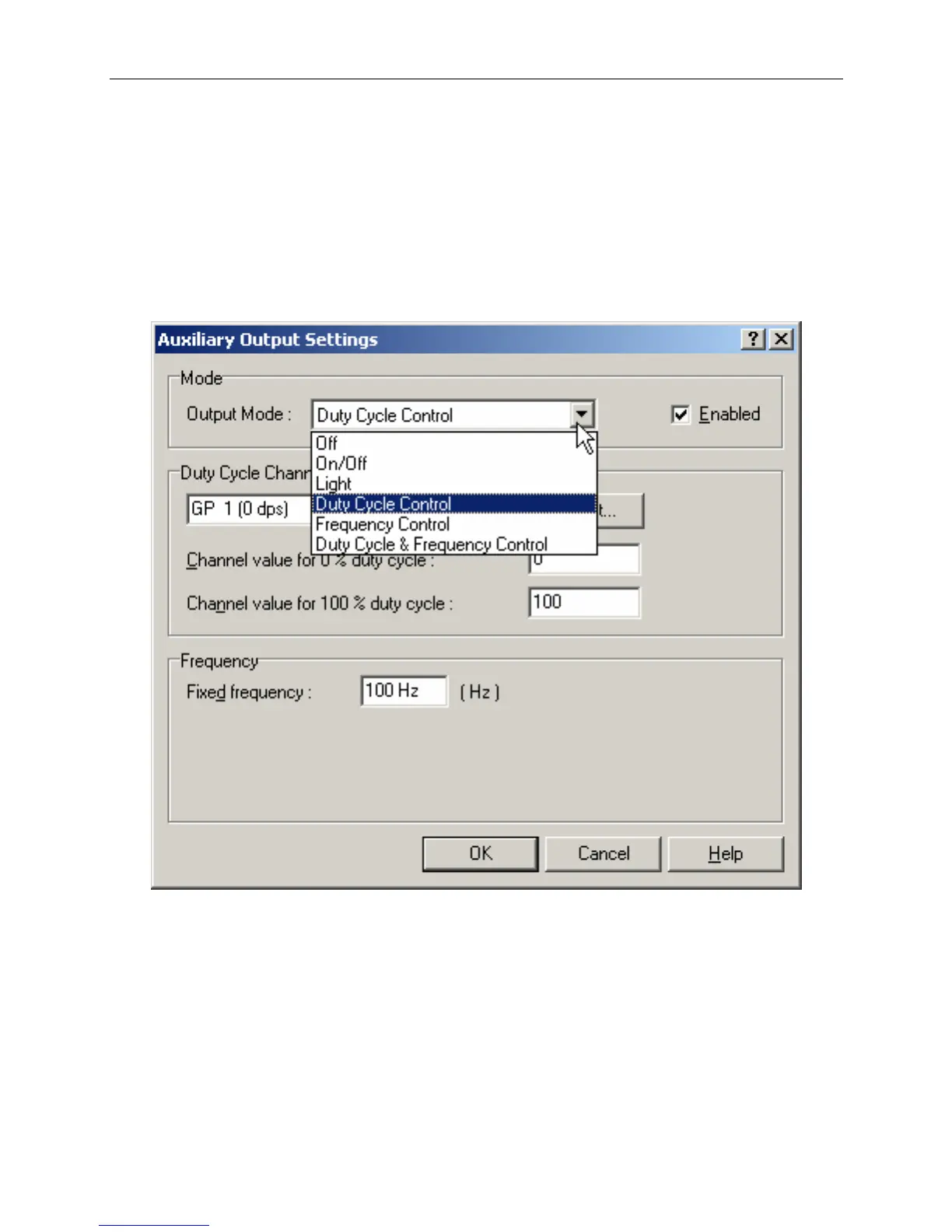

The E8xx outputs can now be configured the same way as the ADL Auxiliary
outputs by selecting an output and then setting the control channels and
parameters.
Ie: Outputs can be on/off, controlled by frequency, duty cycle or a combination
of frequency and duty cycle. Note that appropriate control channels will need to
be generated for these functions. See the ADL Manual for more details on
configuring outputs.
