MoTeC E8xx Diagnostic Information 11
E8xx Diagnostic Information
Additional status information is available from the E8xx along with the state of
the 2 Switch Inputs and the temperatures measured on the 2 thermistor inputs.
This information can be accessed by selecting an additional CAN template in
the Dash Manager communications setup.

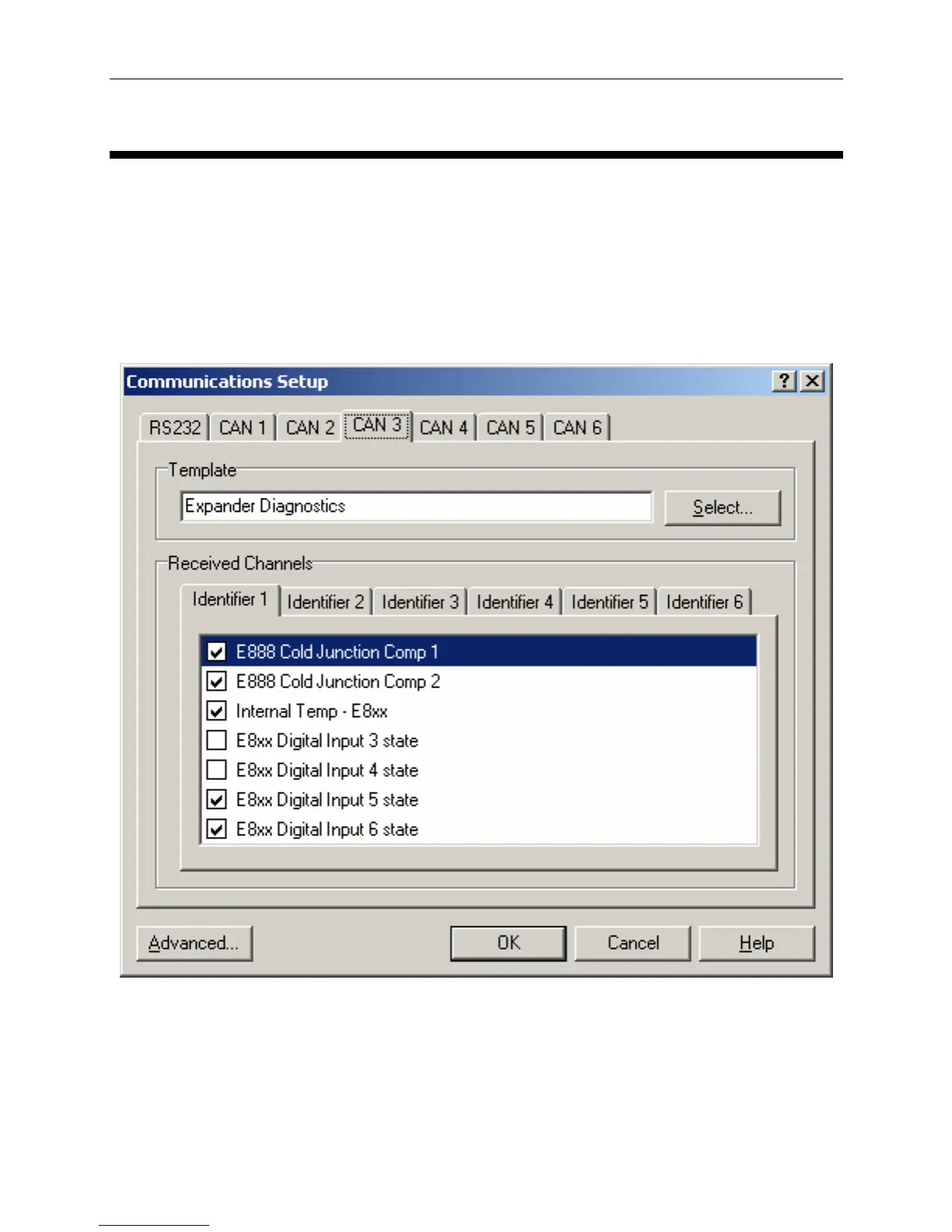

Go to ‘Inputs – Communications’ and click on a blank CAN tab. Then ‘Select’
the template “Expander Diagnostics”.
