Motec Systems E888 - Overview

2 Overview
Overview
The E888 has the following inputs and outputs:
• 8 Analog voltage inputs (AV 1-8)
• 8 Thermocouple inputs (TC 1-8)
• 2 Cold junction compensation thermistor inputs (CJC 1-2)
• 4 Digital inputs (DIG 1-4)
• 2 Switch inputs (DIG 5-6)
• 8 PWM outputs (Aux 1-8)
The E816 has the following inputs and outputs:
• 16 Analog voltage inputs (AV 1-16)
• 2 Thermistor inputs (CJC1-2)
• 4 Digital inputs (DIG 1-4)
• 2 Switch inputs (DIG 5-6)
• 8 PWM outputs (Aux 1-8)
The E888 uses the two part 60 pin connector also used by the M400, M600
and M800 ECUs.

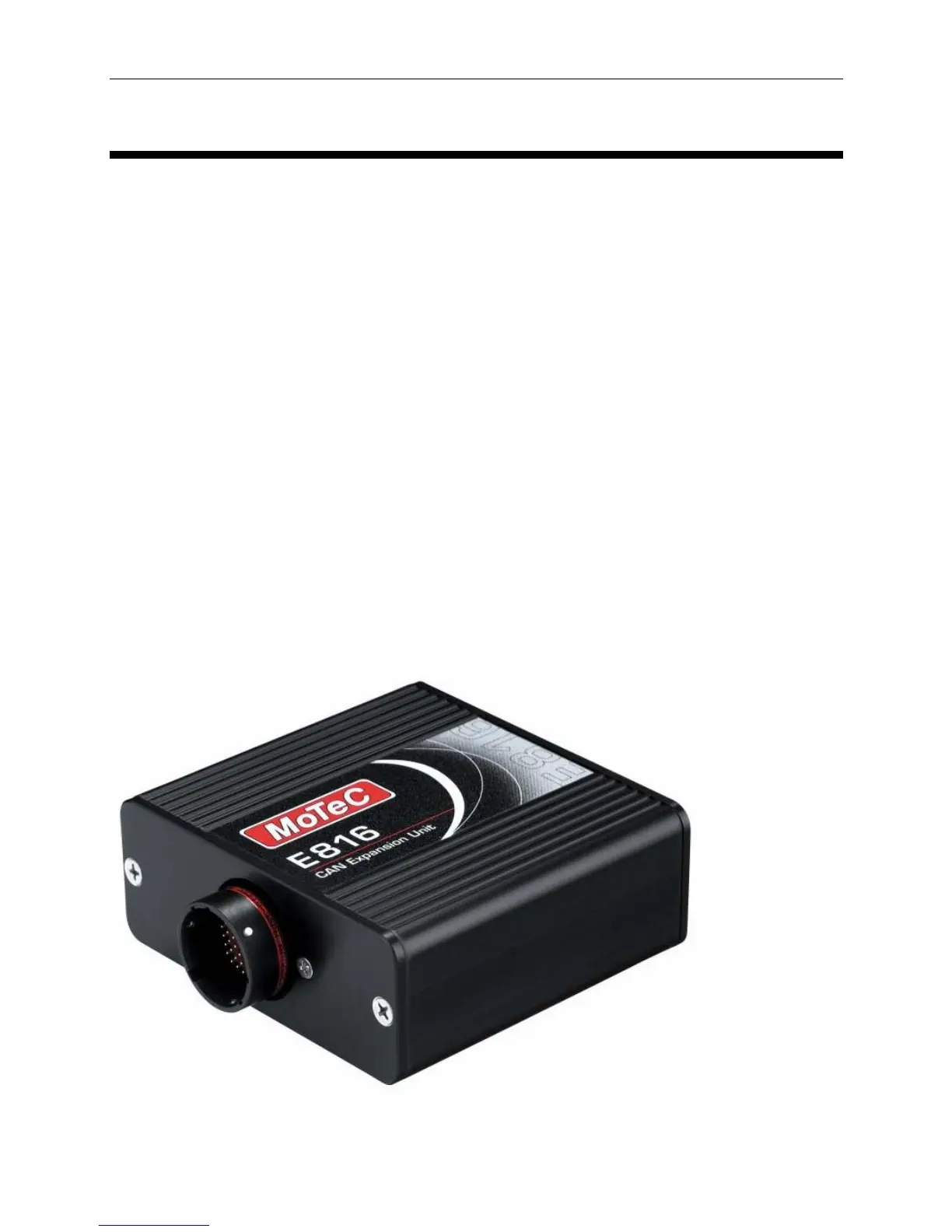

The E816 uses a 66 pin Autosport connector, the same as that used by the
M880 ECU.
