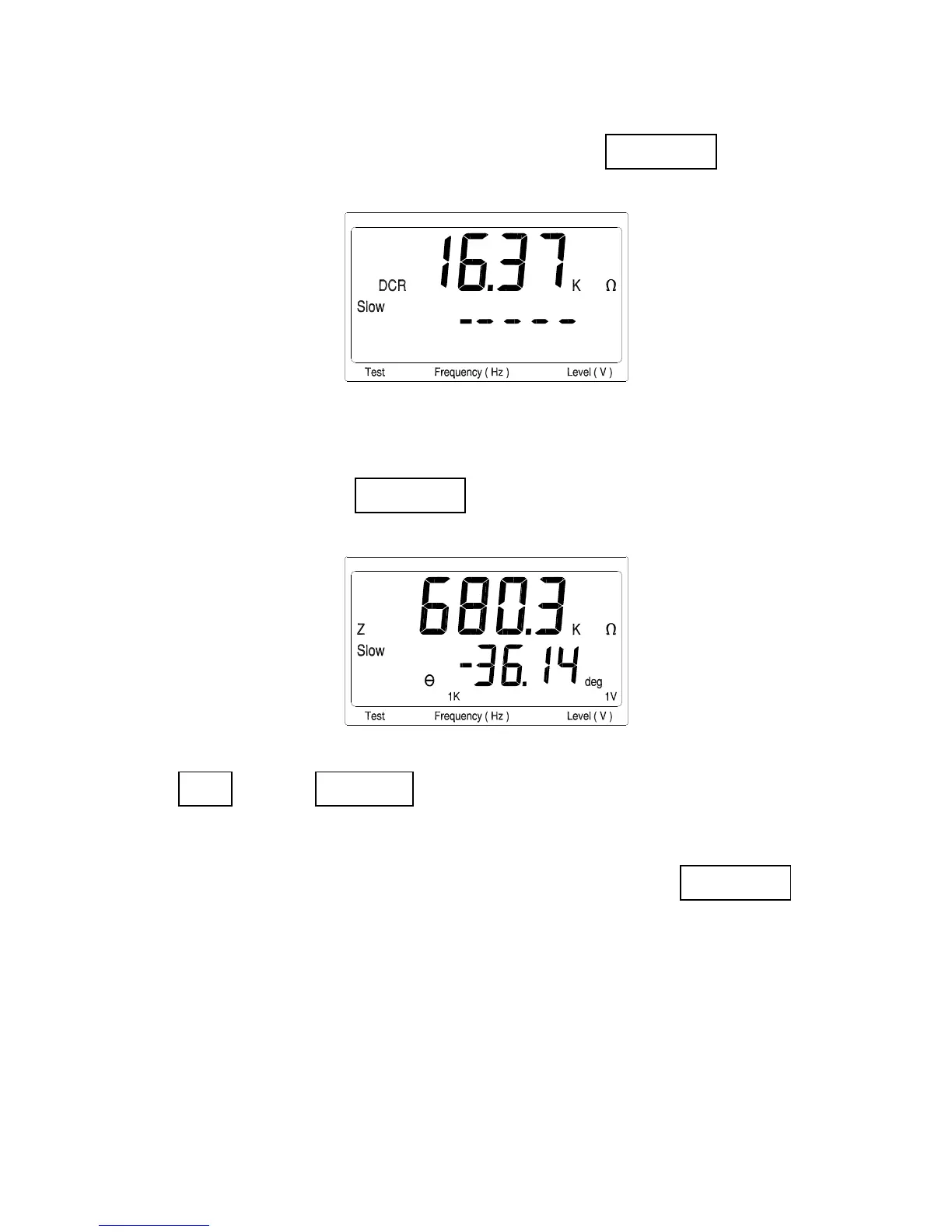

2.2.7 DC Resistance Measurement
The DC resistance measurement measures the resistance of an
unknown component by 1VDC. Select the L/C/Z/DCR key to
make the DCR measurement. The LCD display:
2.2.8 AC Impedance Measurement
The AC impedance measurement measures the Z of an unknown
device. Select the L/C/Z/DCR key to make the Z measurement.
The LCD display:
The testing level and frequency can by selected by pressing the
Level key and Frequency key, respectively.
2.2.9 Capacitance Measurement
To measure the capacitance of a component, select the L/C/Z/DCR
key to Cs or Cp mode. Due to the circuit structure, there are two
modes can by selected (Serial Mode – Cs and Parallel Mode – Cp).
If the serial mode (Cs) is selected, the D, Q and ESR can be shown
on the secondary display. If the parallel mode (Cp) is selected, only
