external conductor (shield). The 4TP connection increases the
measurement range from 1m
Ω to 10M Ω .

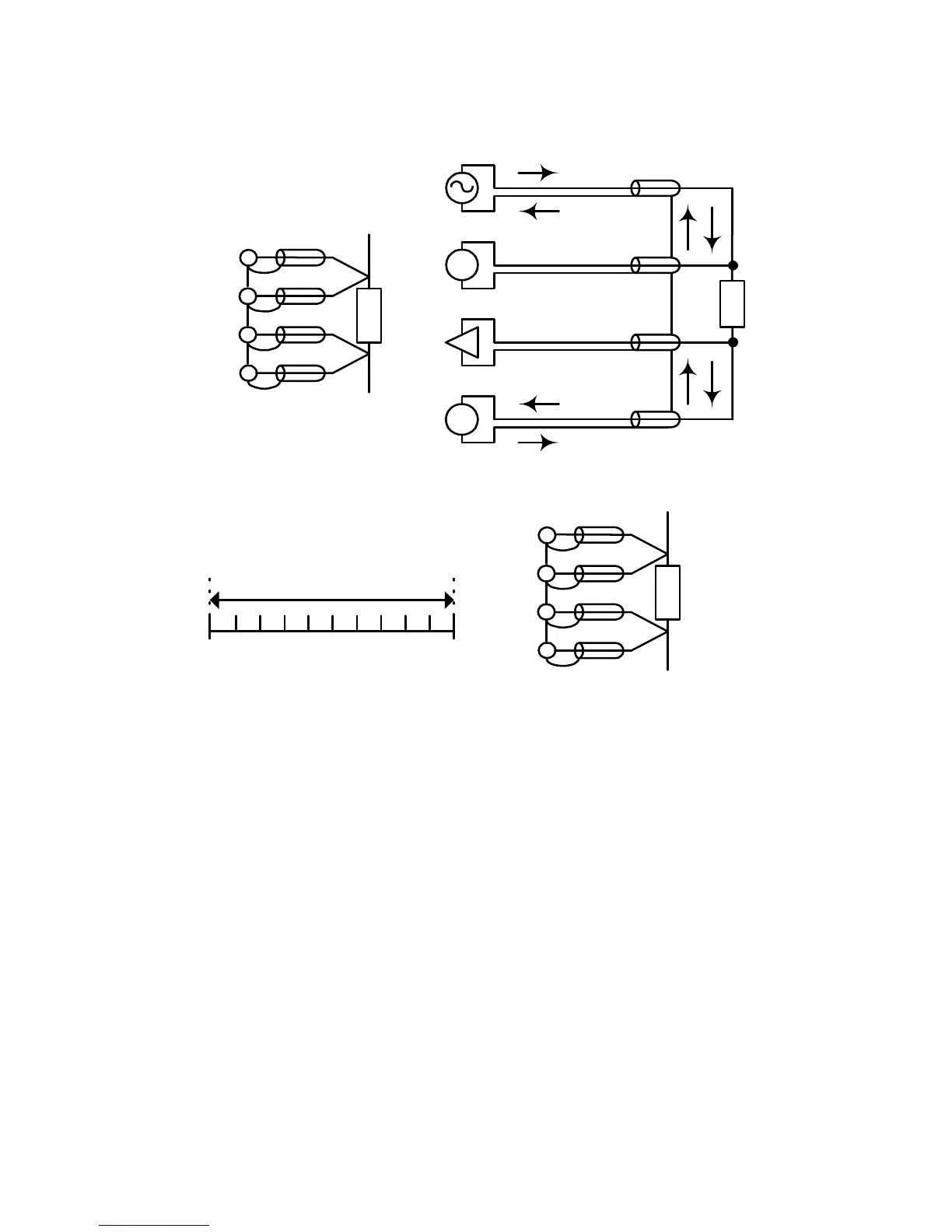

(b) BLOCK DIAGRAM
(a) CONNECTION
DUT
V
A
(c) TYPICAL IMPEDANCE
MEASUREMENT RANGE(£[)
4T
1m 10m100m 1 10 1K 10K 100K 1M100 10M
H POT
DUT
H CUR
L CUR
L POT
H POT
DUT
H CUR
L CUR
L POT
(d) 4T CONNECTION WITH SHILDING
Figure 3.5
 Eliminating the Effect of the Parasitic Capacitor
When measuring the high impedance component (i.e. low
capacitor), the parasitic capacitor becomes an important issue
(Figure 3.6). In figure 3.6(a), the parasitic capacitor Cd is
paralleled to DUT as well as the Ci and Ch. To correct this
problem, add a guard plane (Figure 3.6(b)) in between H and L
terminals to break the Cd. If the guard plane is connected to
instrument guard, the effect of Ci and Ch will be removed.
