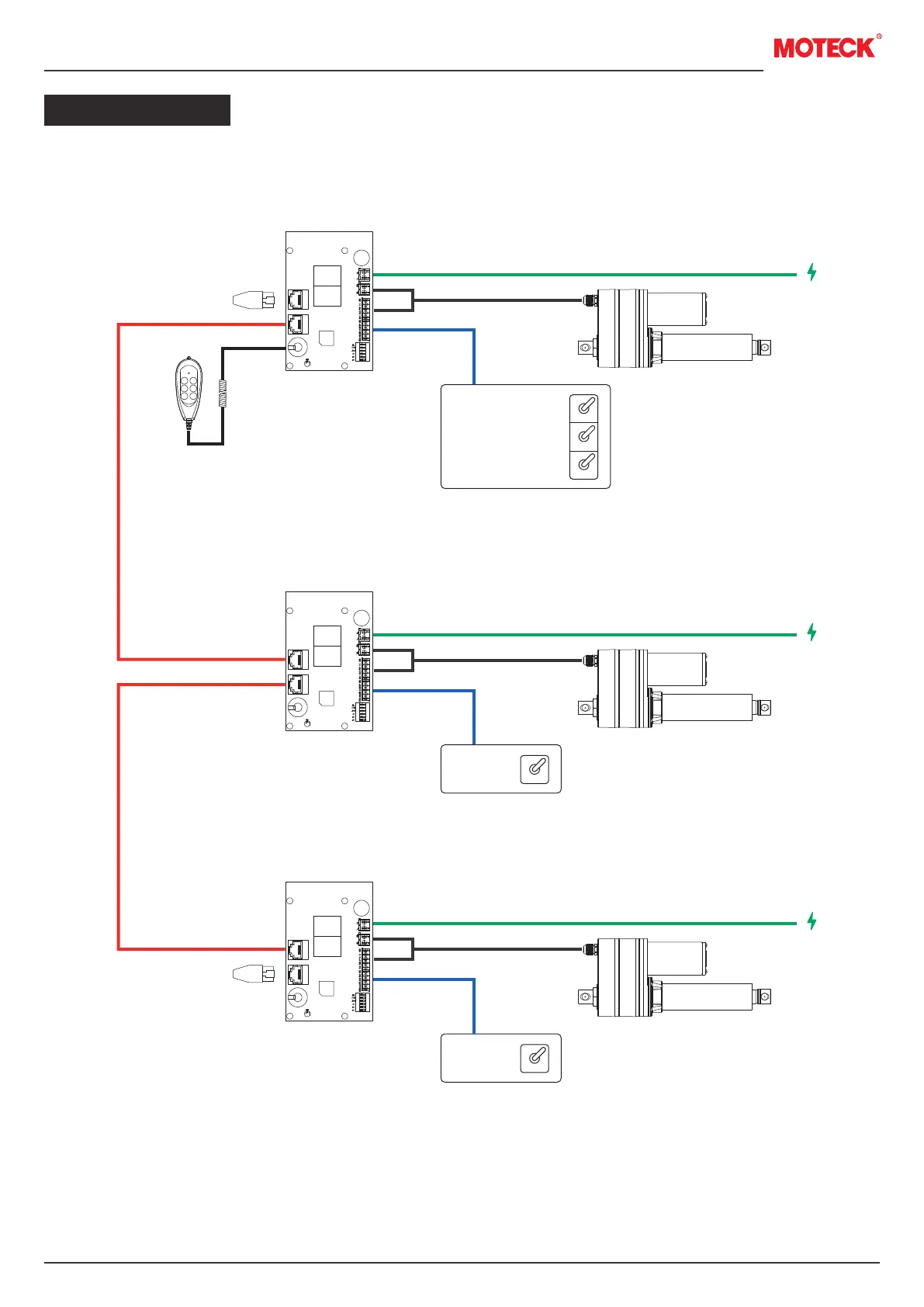

System Diagram
Master CI73
Learning
ON
OFF
ON
OFF
EXT/STOP/RET
Override
Control switch
(prepared by customer)
Power
Power and signal
ON
OFF
Override
(the switch is prepared by customer)
Follower CI73
Power
Power and signal
ON
OFF
Override
(the switch is prepared by customer)
Follower CI73
Power
Power and signal
Hand control
Terminal resistor
Terminal resistor
Communication cable Communication cable
