ADJUSTMENTS AND MAINTENANCE – FOLDING WHEELCHAIRS | USER MANUAL
NOTE: If you ignore these warnings or fail to inspect or maintain your wheelchair as directed in the manual, you may fall, tip over or lose control of the wheelchair and seriously injure yourself or others and damage the
wheelchair.
22

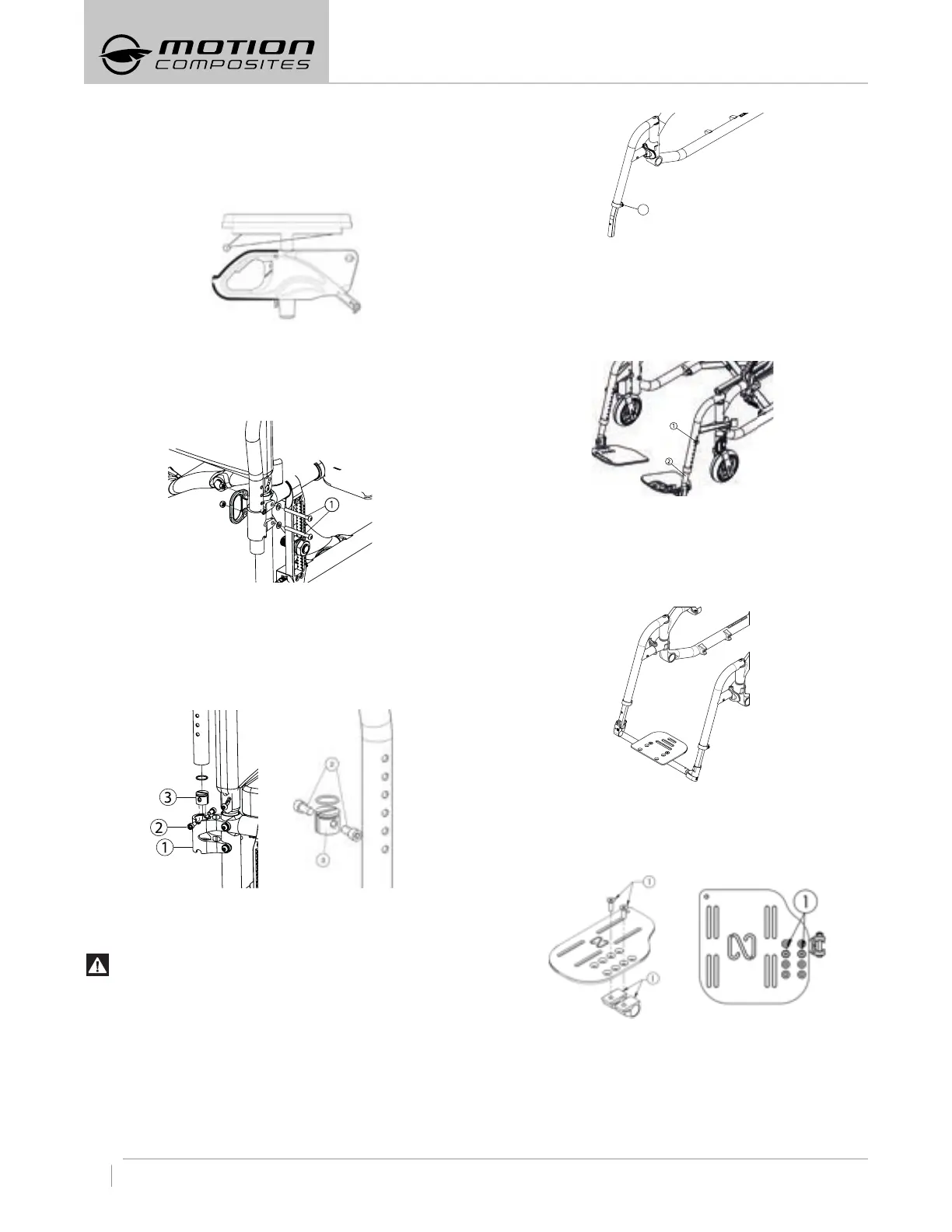

8.6.5 REPLACING ARMREST PAD
– Remove screws (1) located under the pad (through the tube).
– Replace with new armrest pad.
– Reinstall screws (1) and tighten firmly.
8.6.6 INSTALLING THE SWING AWAY ARMREST RECEIVER
– Remove the two bolts (1).
– Align the armrest receiver with the mounting holes and the
backrest frames.
– Reinstall the bolts and tighten firmly.
8.6.7 ADJUSTING SWING AWAY ARMREST HEIGHT
– Pull the armrest out of the receiver (1) (Fig. a).
– Unscrew and remove screws (2) (Fig. b).
– Inside the armrest tube, slide the dowel nut with a long flat
screwdriver at the desired height (3).
– Reinstall screws (2).
– Reinsert armrest in the receiver.
Fig. a Fig. b
8.7 FOOTREST LENGTH
WARNING
Never adjust the footrest length while the wheelchair is
occupied.
8.7.1 ADJUSTING FOOTREST LENGTH
– Slightly loosen screw (1).
– Slide the tube to the desired position, within the limits.
– Tighten screw (1) firmly.
1
8.7.2 ADJUSTING FOOTREST LENGTH (SWING AWAY TYPE)
– Remove screws on footrests (1).
– Slide the extension tube inside the footrest at the desired
length.
– Reinstall screws at desired length.
– Tighten screws firmly.
8.7.3 ADJUSTING FOOTREST LENGTH (SINGLE FOOTPLATE
TYPE)
– Loosen screws of 5 mm at the bottom of the footrest structure.
– Slide the tube to the desired position, within the limits.
– Tighten screws firmly.
8.7.4 ADJUSTING FOOTPLATE ANGLE
– Loosen screws (1).
– Rotate the footplate at the desired angle.
– Tighten screws (1) firmly.
