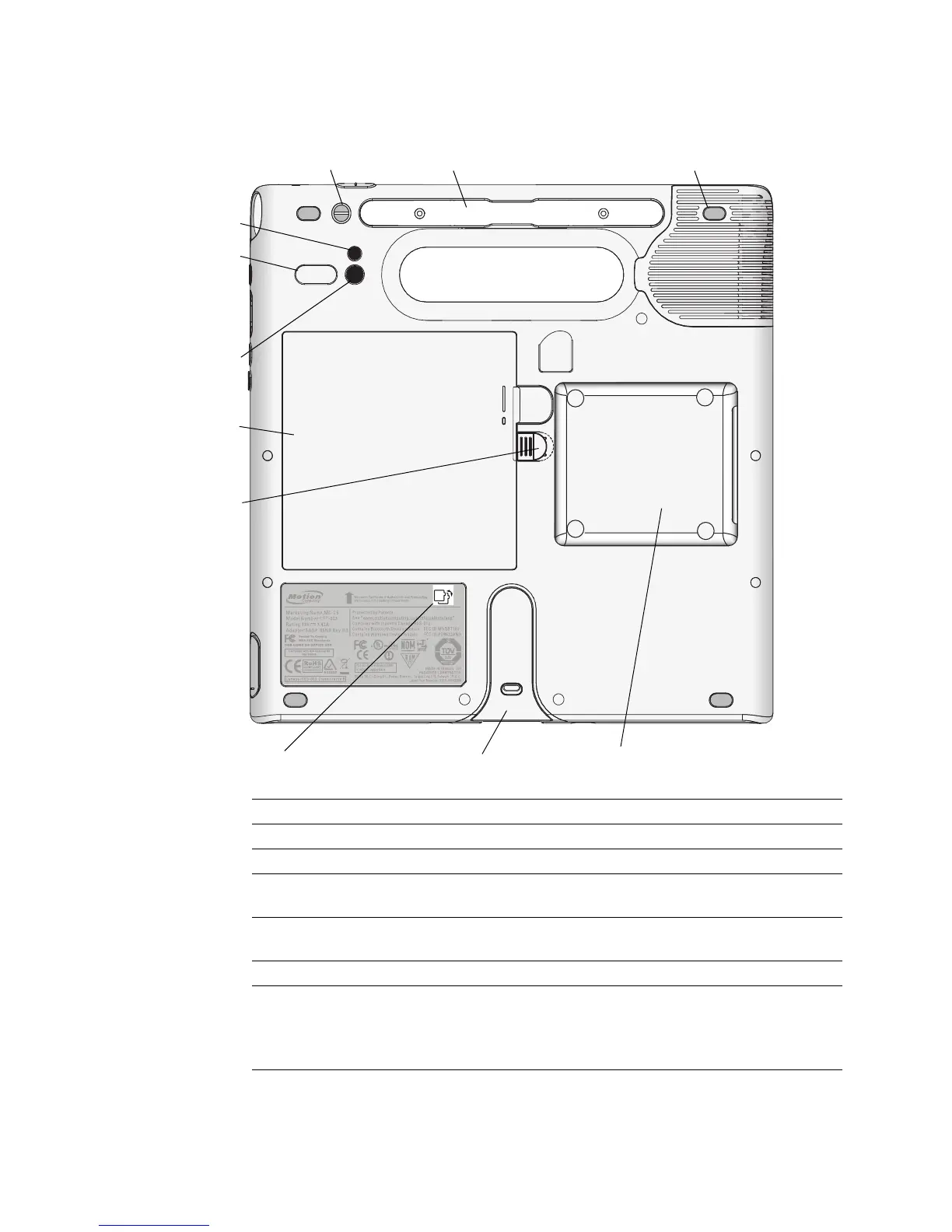

Back side
0560
Pen tether Pen holder Fan cover
Camera light
Camera lens
Battery
Docking guide
Speaker
Smart card reader
Battery latch
Hot-swap logo
Pen tether Attach the pen tether.
Pen holder Store the pen when not in use (page 10).
Fan cover Protects the fan assembly.
Camera (optional)
lens
Capture images to the hard disk drive from the
documentation camera (page 15).
Camera (optional)
light
Provides light for the documentation camera (page 15).
Speaker Listen to audio (page 18).
Battery Powers the system when it is not plugged in or docked
(page 20).
Note: The Microsoft
® Windows® Certificate of Authenticity is
under the battery.
