Chapter 3
Radio Controls
This chapter explains the buttons and functions to control the radio.
3.1

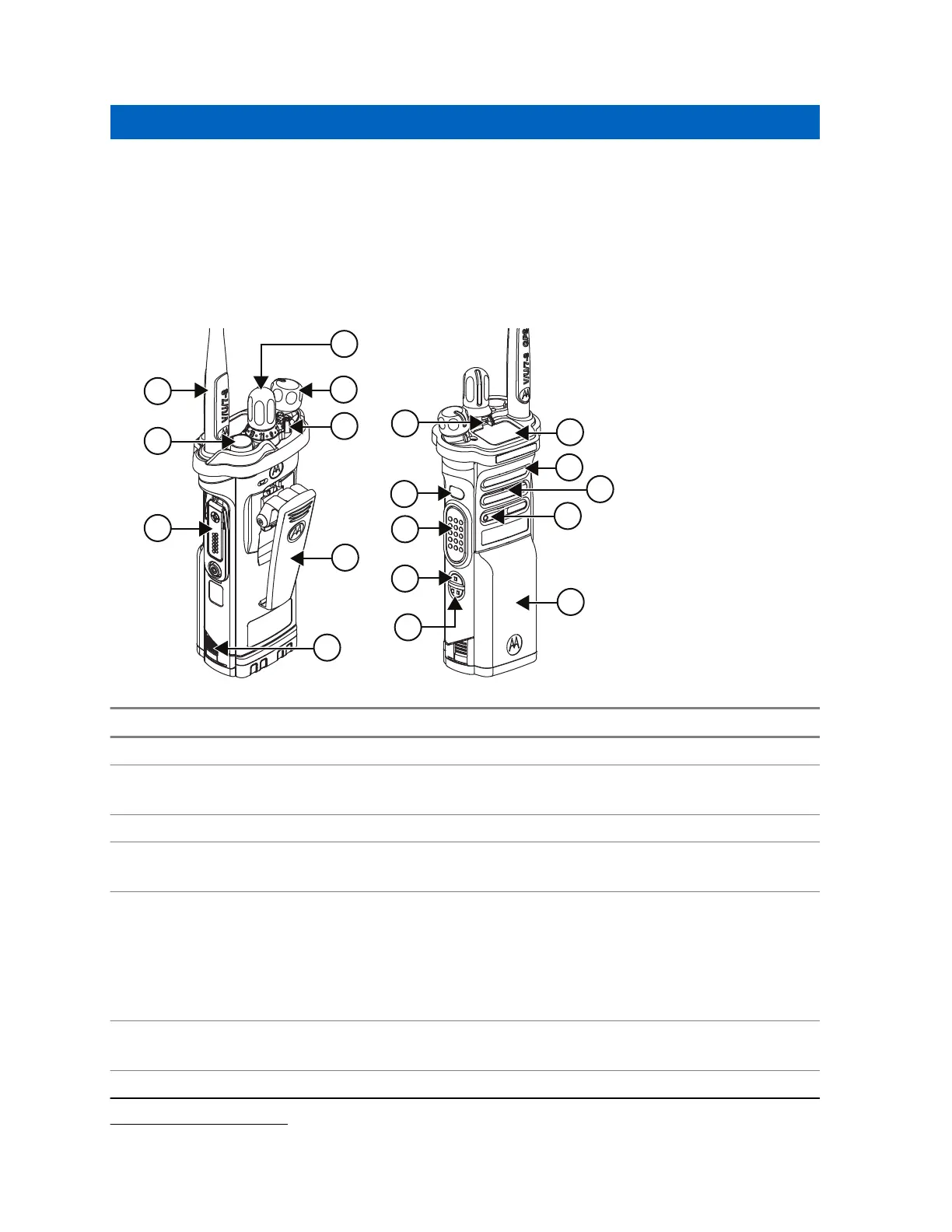

Radio Parts and Controls
1
9
11
10
12
2
3
8
7
14
15
16
17
18
6
5
4
13
No. Description
1 Antenna
2
*
Top (Orange) Button
This button is usually programmed as the Emergency button.
3 Accessory Connector
4
*
16-Position Select Knob
This knob is usually programmed for channel selection.
5 On/Off/Volume Control Knob
Rotate clockwise until you hear a click to turn on the radio.
Rotate counterclockwise until you hear a click to turn off the radio.
Rotate clockwise to increase the volume.
Rotate counterclockwise to decrease the volume.
6
*
3-Position A/B/C Switch
This switch is usually programmed for zone selection.
7 Belt Clip
*
These radio controls/buttons are programmable.
MN006727A01-AE
Chapter 3 : Radio Controls
18
