e. Attach the power supply line cord to a power supply.
12. Verify the behavior of the access point LED light pipe. For more information, see
“
LED Indicator” on page 15.
13. Place the ceiling tile back in its frame and verify it is secure.
14. The access point is ready to configure. For information on basic access point device
configuration, see “
Using the Initial Setup Wizard” on page 17.
2.7 LED Indicator

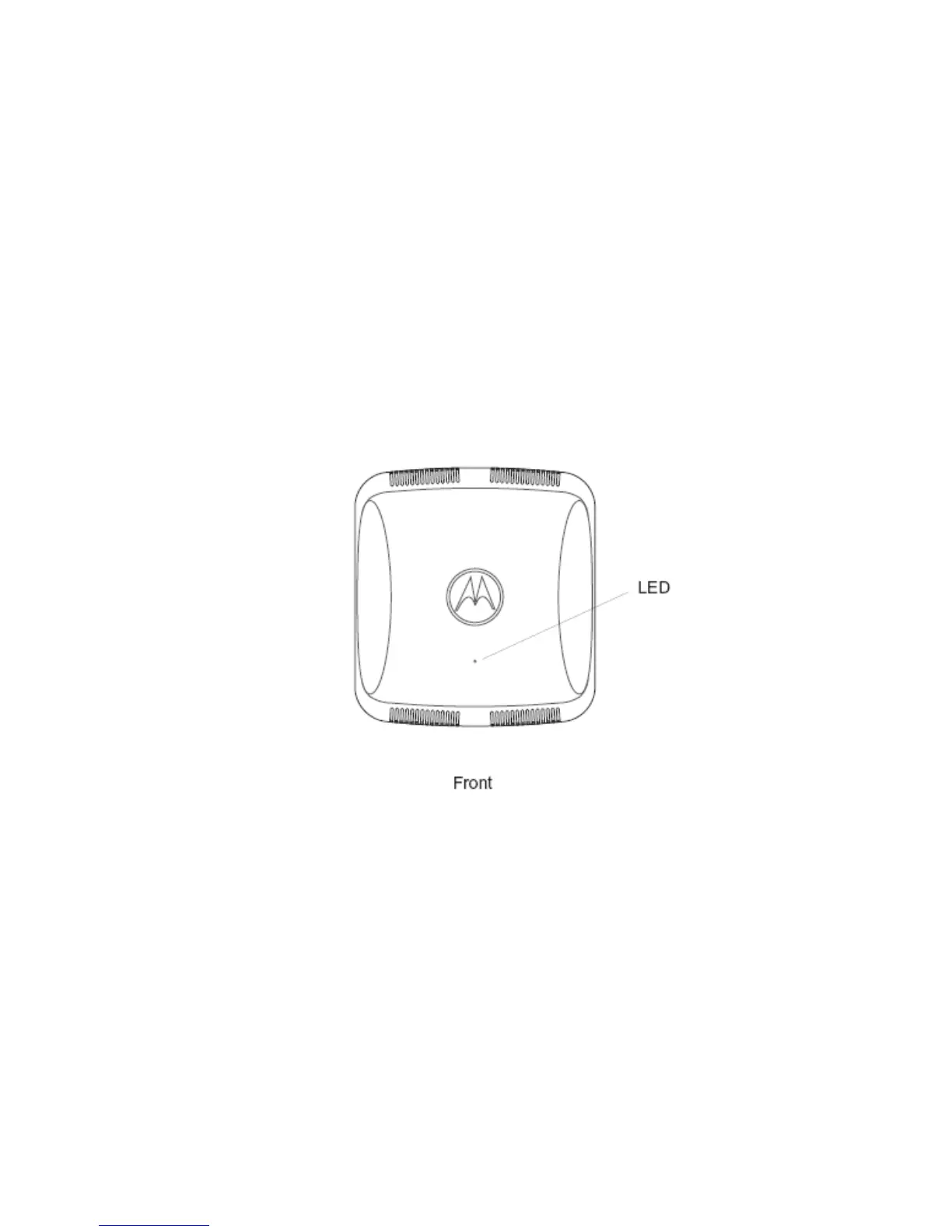

An AP-621 Series access point has a single LED activity indicator on the front of the access point.
The LED provides a status display indicating error conditions, transmission, and network activity for
the 5 GHz 802.11a/n (amber) radio or the 2.4 GHz 802.11b/g/n (green) radio.
