AP-6511 Access Point Installation Guide
20

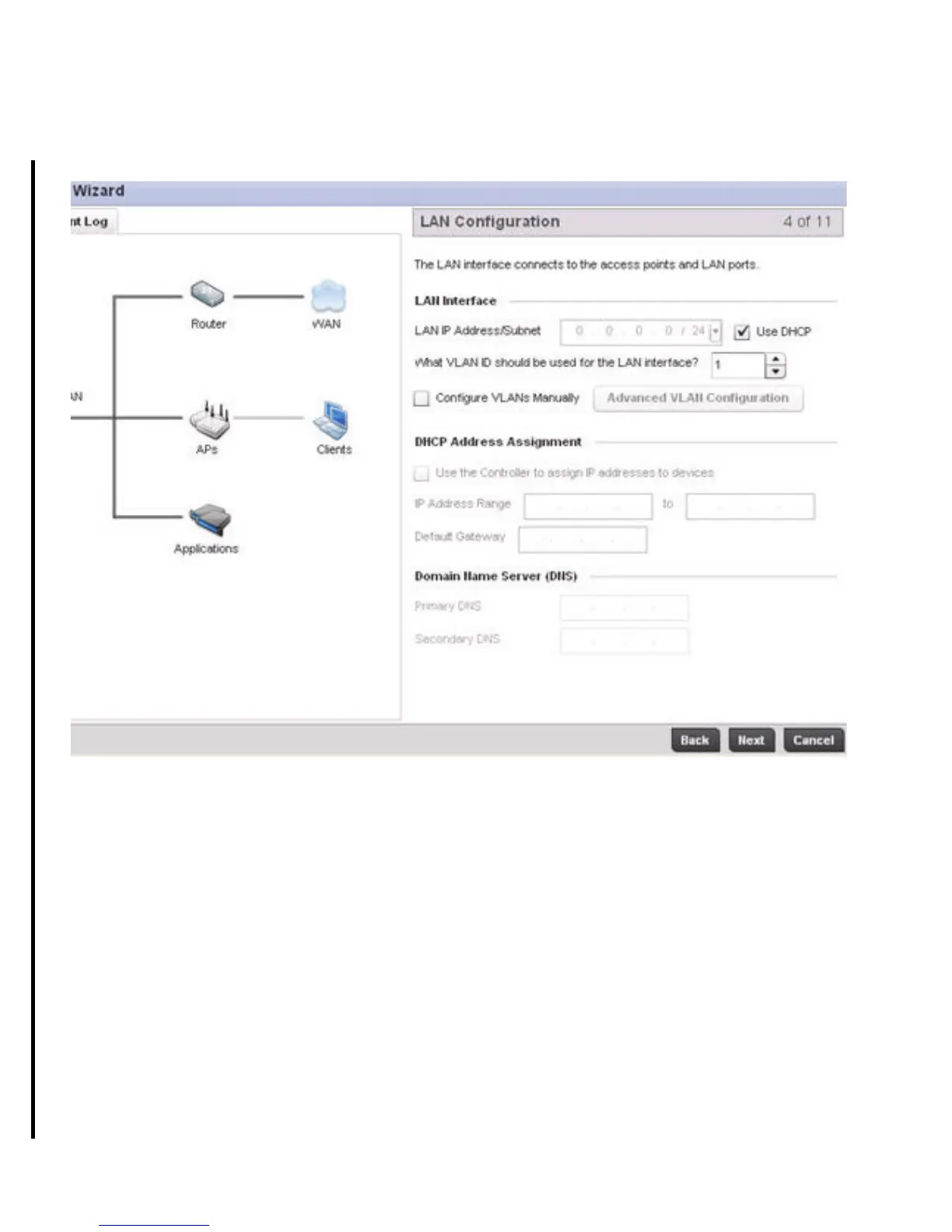

The LAN Configuration screen is partitioned into LAN Interface, DHCP Address
Assignment and Domain Name Server (DNS) fields.
15. Set the following LAN Interface information:
• LAN IP Address/Subnet - Enter an IP Address and a subnet for the AP-6511’s LAN
interface. If the Use DHCP checkbox is selected, this field is not available.
• Use DHCP - Select the checkbox to enable an automatic network configuration using a
DHCP server. If this option is enabled, the LAN IP Address/Subnet, DHCP Address
Assignment and Domain Name fields are populated by the DHCP server.
• What VLAN ID should be used for the LAN interface? - Use the spinner to select the
VLAN ID to associate with the LAN Interface. The default setting is VLAN 1.
• Configure VLANs Manually - Select the checkbox to enable an advanced manual VLAN
configuration.
