Installing the MoCA Adapters
SBM1000 SMART Video Adapter Kit • User Guide
24
590631-001-a
ο If the Coax LED does not turn ON within five minutes, disconnect and then reconnect
the power adapters on the SBM1100 and SBM1400. If the Coax LEDs still fail to turn
ON, see Troubleshooting Solutions for more information.
14. Power ON your Smart TV, set-top box, laptop, and any other Ethernet-connected devices.
You can now configure your Smart TV and other Ethernet-enabled devices for Internet access
through their related user interfaces.
See Configure_MoCA_Adapters for more information on setting up the MoCA adapters.
2.3 Installing for AT&T U-verse with an Ethernet-connected
Set-top Box

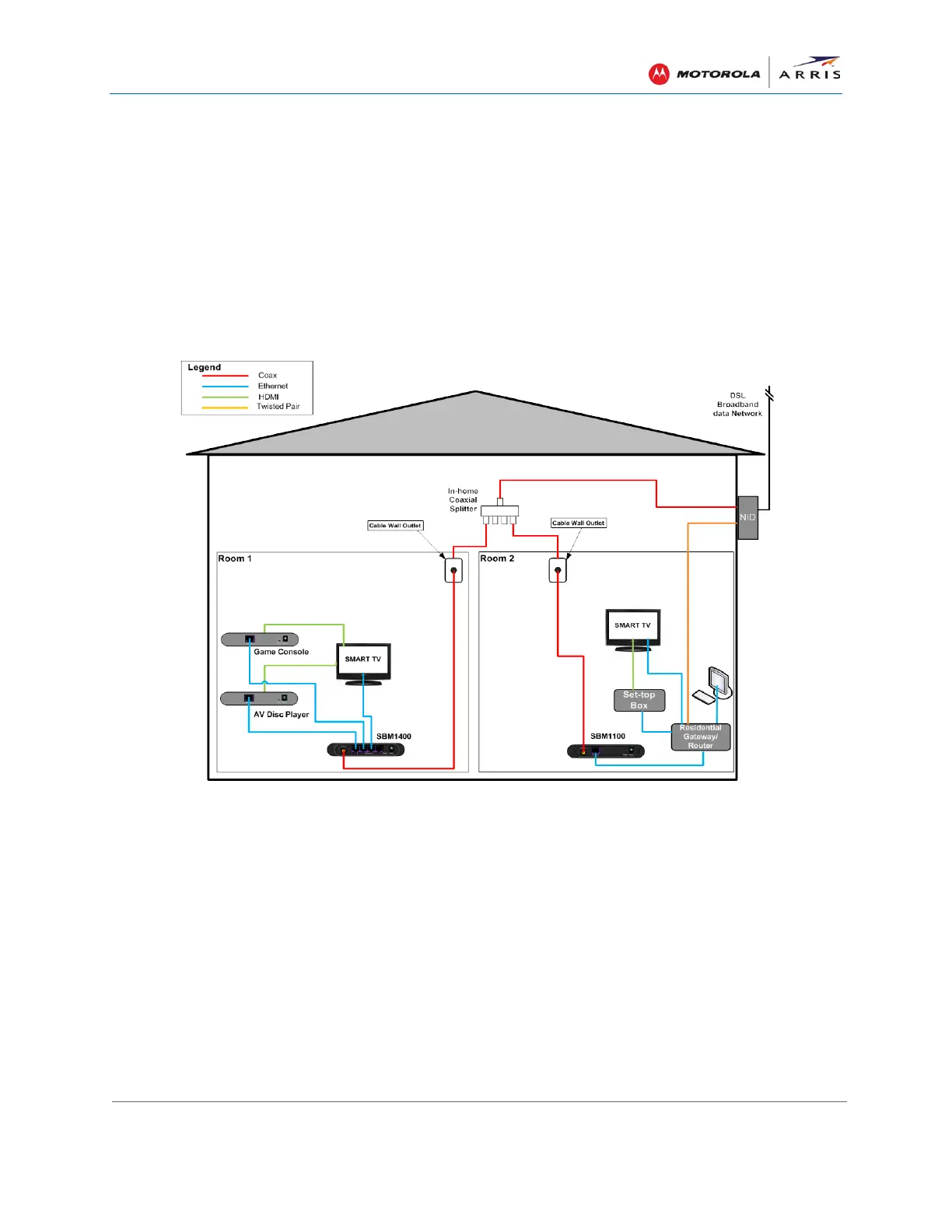

Figure 20 – AT&T U-verse Installation with Ethernet-connected Set-top Box
1. Identify the rooms that you want to add to your home network and make sure there is a
coaxial cable connection in each room.
2. Locate the cable wall outlet (or RF splitter) and electrical wall outlet in the first room (see
Room 1 in Figure 20).
Note: Although the SBM1100 and SBM1400 adapters are interchangeable, the SBM1400 is
typically located where more than one Ethernet connection is required (see Room 1 above).
3. Connect one of the coaxial cables (included) to the Coax In connector on the SBM1400 and
the RF port on the cable wall outlet (see Figure 21).
