1. Unlock the orange locking latch on the camera base if it is already locked. The lens should be
pointing in the general direction of the intended view.
The arrow indicator between the optical window and the camera base indicates the top of the view.

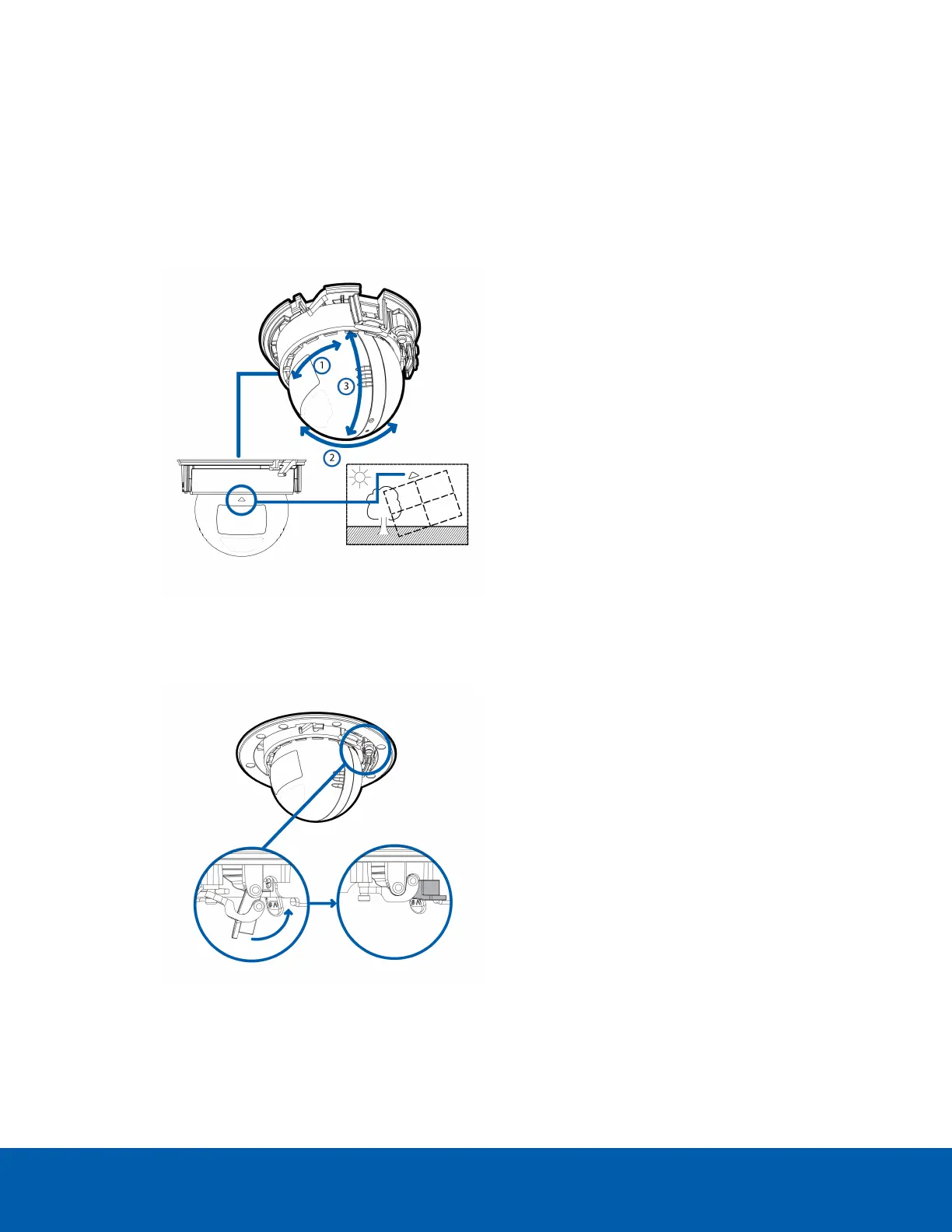

2. Start with the arrow indicator as close to the mounting adapter as possible. Make pan adjustments
(see number 1 in the image below) until the lens is pointed in the intended direction. Then make the
necessary tilt (see number 2 in the image below)and azimuth (see number 3 in the image below)
adjustments until the live view is adjusted to your satisfaction.
3. Swivel the locking latch to lock it into the closed position.
4. In the camera web browser interface or the Avigilon Control Center software, adjust the camera’s
Image and Display settings.
Aiming the Camera 15
