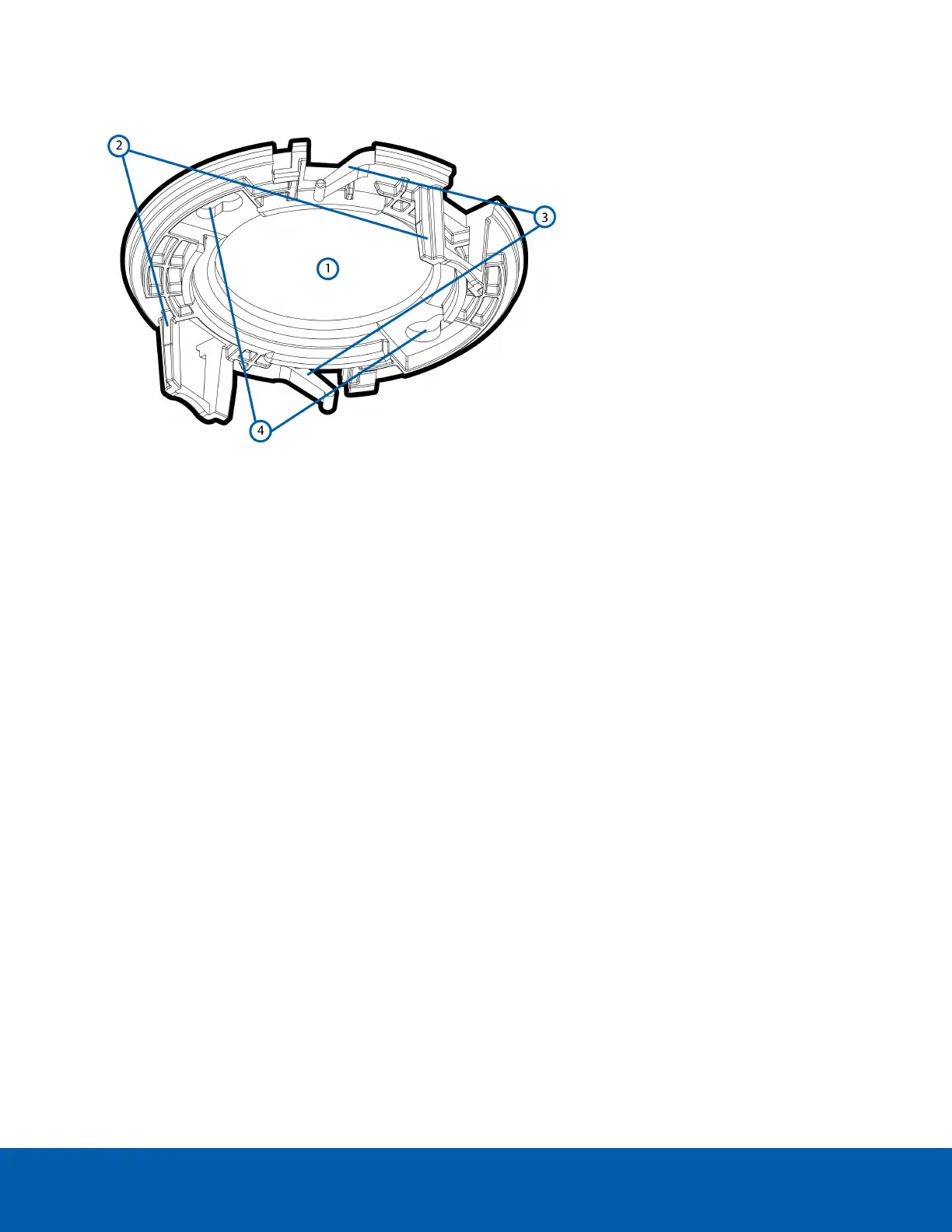

Surface Mounting Adapter View
1.
Cable entry hole
An entry hole for the cables required for camera operation.
2.
Camera attachment slots
Slots that the camera housing clips are inserted into to attach the camera body to the surface
mounting adapter.
3.
Bezel attachment clips
Clips to hold the bezel in place.
4.
Mounting holes
Holes for mounting the surface mounting adapter to the ceiling or wall.
Surface Mounting Adapter View 7
