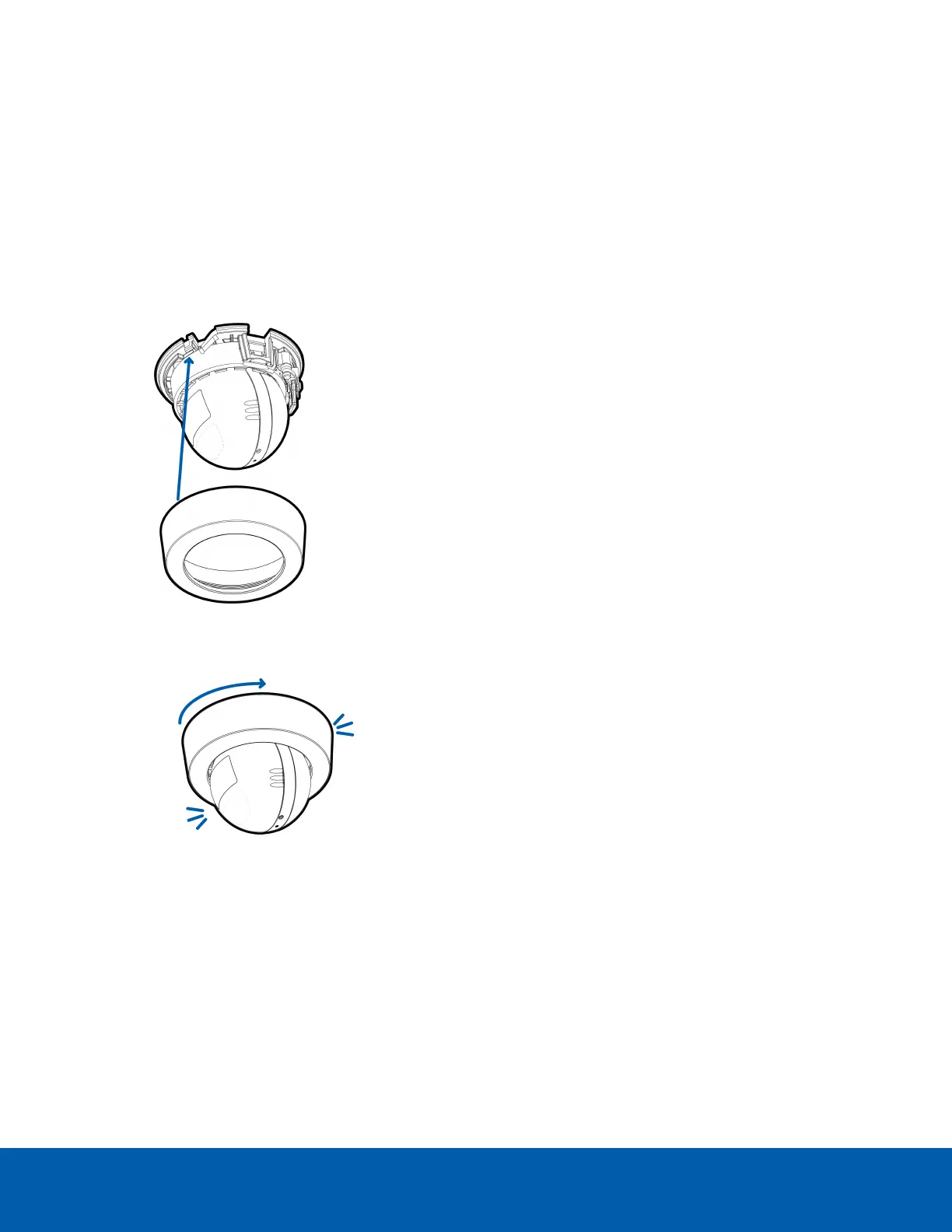

Attaching the Bezel
After you lock the camera in place, attach the bezel to the mounting adapter, by completing the following
steps:
1. Locate the two raised slots on the inner side of the bezel.
2. Place the bezel up against the mounting adapter with the raised slots slightly to the left of the bezel
mounting clips on the mounting adapter.
3. Place the bezel up against the mounting adapter with the raised slots slightly to the left of the bezel
mounting clips on the mounting adapter.
4. Rotate the bezel clockwise until it snaps into place.
Configuring the Camera
Once installed, use one of the following methods to configure the camera:
Attaching the Bezel 16
