3-4 MAINTENANCE
6.0 Radio Disassembly - Detailed
The procedure to remove and replace a Control Head, Top Cover or Transceiver Board is similar for
all models of radio. A typical procedure is therefore shown followed by specific disassembly
procedures for Control Heads on radio models without a display and radio models fitted with a
display.
6.1 Control Head Removal
1. Insert the dismantling tool in the groove between the control head and the radio assembly as
showninFigure3-1.
2. Press on the dismantling tool until the snap connectors on the side of the control head
release from the radio assembly.

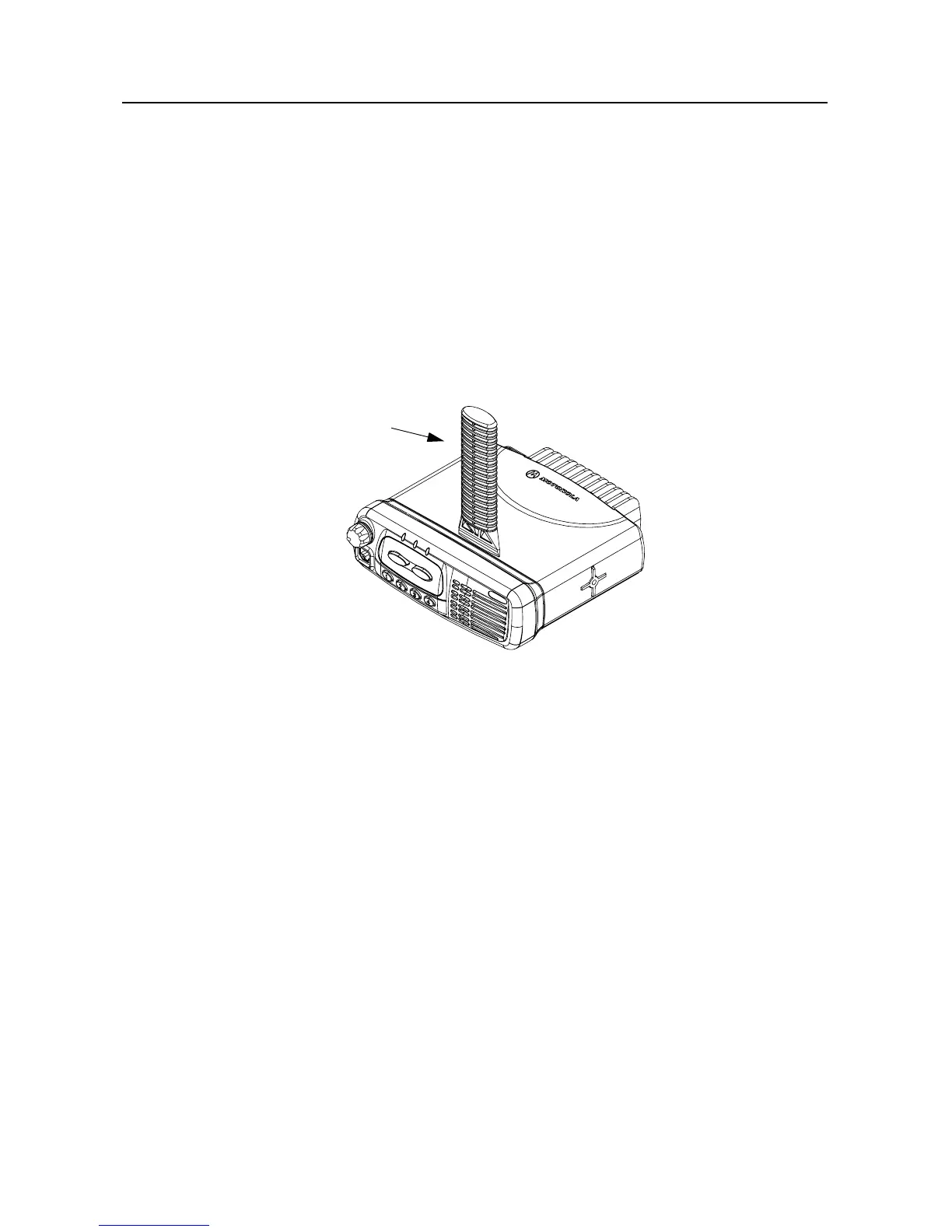

Figure 3-1 Typical Control Head Removal.
3. Pull the control head away from the radio assembly as shown in Figure 3-2.
Dismantling
Tool
ZWG0130209-O
