3-12 MAINTENANCE
8.2 Radio Assembly - 60W Models

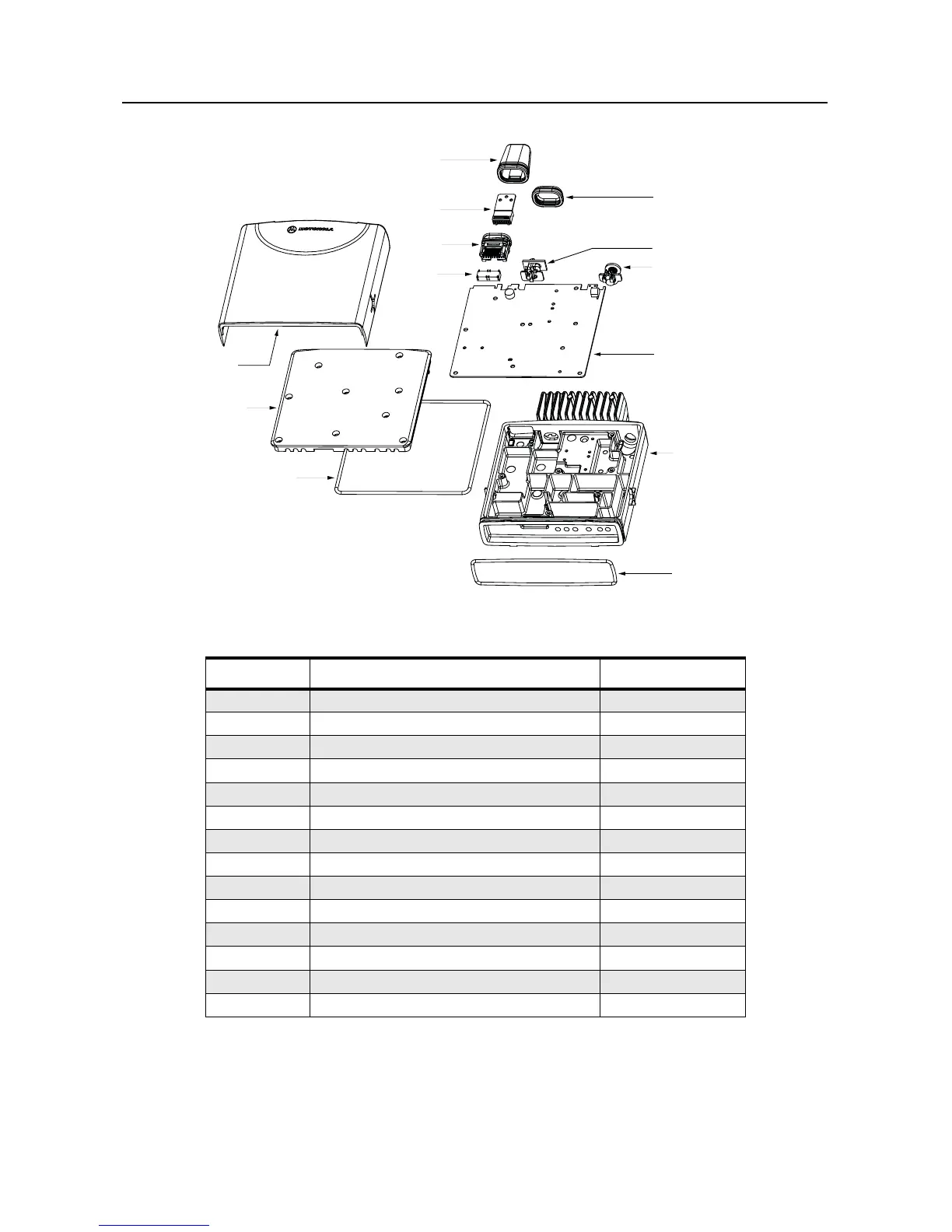

Figure 3-11 Radio Assembly 60W Models
Table 3-2 Radio Assembly Parts List - 60W Models
Item No. Description Part Number
1 Chassis 60W 2786149B01
2 Gasket, Controlhead 3202620Y01
3 Main PCB (items 4, 5 and 8 included)
4 Antenna Connector, Mini UHF 0986166B02
5 Power Connector 0986165B01
6 Connector 20 PIN 0986105B01
7 Connector Assembly 2886122B01
8 Gasket Cover, Connector 3202607Y01
9 Connector 1580922V01
10 Gasket Accessory Connector 3202606Y01
11 Gasket Cover 60W 3286152B01
12 Cover 60W 1586150B01
13 Cover, Plastic 60W 1586151B01
Screw T20, 9x (not shown) 0310911A30
ZWG0130203-A
11
12
13
9
10
1
2
3
4
5
6
7
8
