Motorola GM300 Series - Radio Exploded Mechanical Views and Parts Lists; Radio Assembly - 25 W Models

Radio Exploded Mechanical Views and Parts Lists 3-11
8.0 Radio Exploded Mechanical Views and Parts Lists
8.1 Radio Assembly - 25W Models

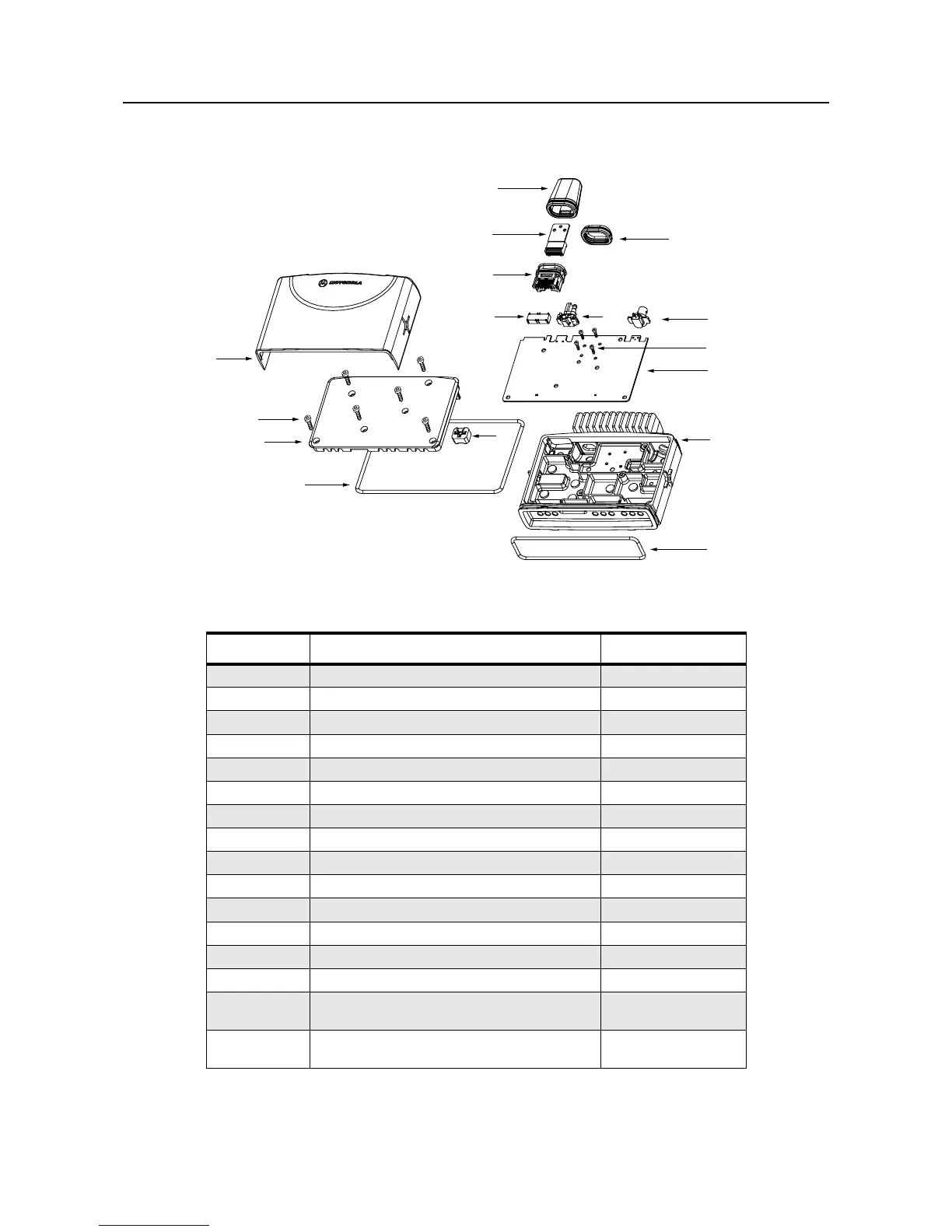

Figure 3-10 Radio Assembly - 25W Models
Table 3-1 Radio Assembly Parts List - 25W Models
Item No. Description Part Number
1 Chassis 25W 2786082B02
2 Gasket, Controlhead 3202620Y01
3 Main PCB (items 4 to 10 included)
4 Antenna Connector with Gasket, BNC 0986166B01
5 Power Connector 0986165B01
6 Connector 20 PIN 0986105B01
7 Connector Assembly 2886122B02
8 Gasket Cover 3202607Y01
9 Connector 1580922V01
10 Gasket Accessory Connector 3202606Y01
11 Gasket Cover 25W 3286086B01
12 Cover 25W 1586084B01
13 Cover, Plastic 25W 1586083B01
14 Screw T20, 6x (M4) 0310911A30
15 Screw T8 Power Device Fastner
(some models only)
0310911A12
16 Silicon Pressurepad, Power devices
(25W cover only)
7586187B01
ZWG0130202-A
11
12
13
9
10
1
2
3
4
56
7
8
14
15
16
