February 1997 68P02948C90-O 1-3
GTX/GTX LTR/LTS 2000 Portable Radios Service Manual Radio Disassembly/Assembly
Radio Reassembly
6. Separate the flexible circuit tail by undoing the
ZIF connector latch (Figure 1-7).
Front Housing Board Removal
1. Place the front housing assembly with the
front facing down on a padded flat surface.
This is to avoid the lens from being scratched.
2. Remove the front housing shield using
tweezers or sharp end screwdriver by undoing
the four side catches (Figure 1-8).

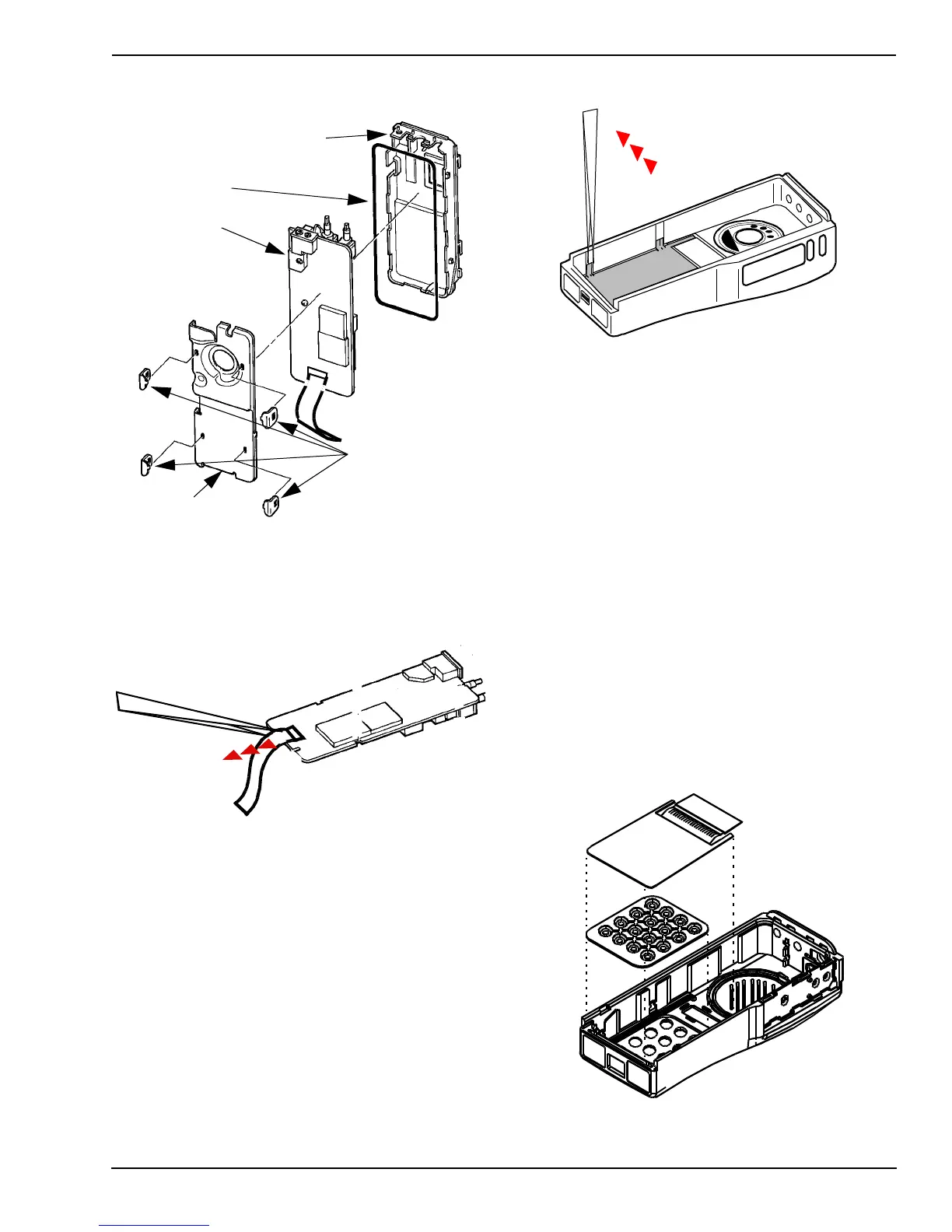

Figure 1-6. Separate Main Board From Chassis
Locking clips
Main board
Chassis
Gasket
Shield
Figure 1-7. Separate Flexible Circuit Tail
3. .Separate the front housing board from the
front housing.
Radio Reassembly
Front Housing Reassembly
1. Place the front housing on a cushioned flat
surface with the front facing down.
2. Place the keypad into the front housing
(Figure 1-9).
3. Place the board on the keypad in the housing
(Figure 1-9).
Figure 1-8. Remove Front Housing Shield
Figure 1-9. Place Keypad Into Front Housing
To Next Page
