INSTALLATION MTM800 Enhanced Mobile Terminal Installation Manual 39

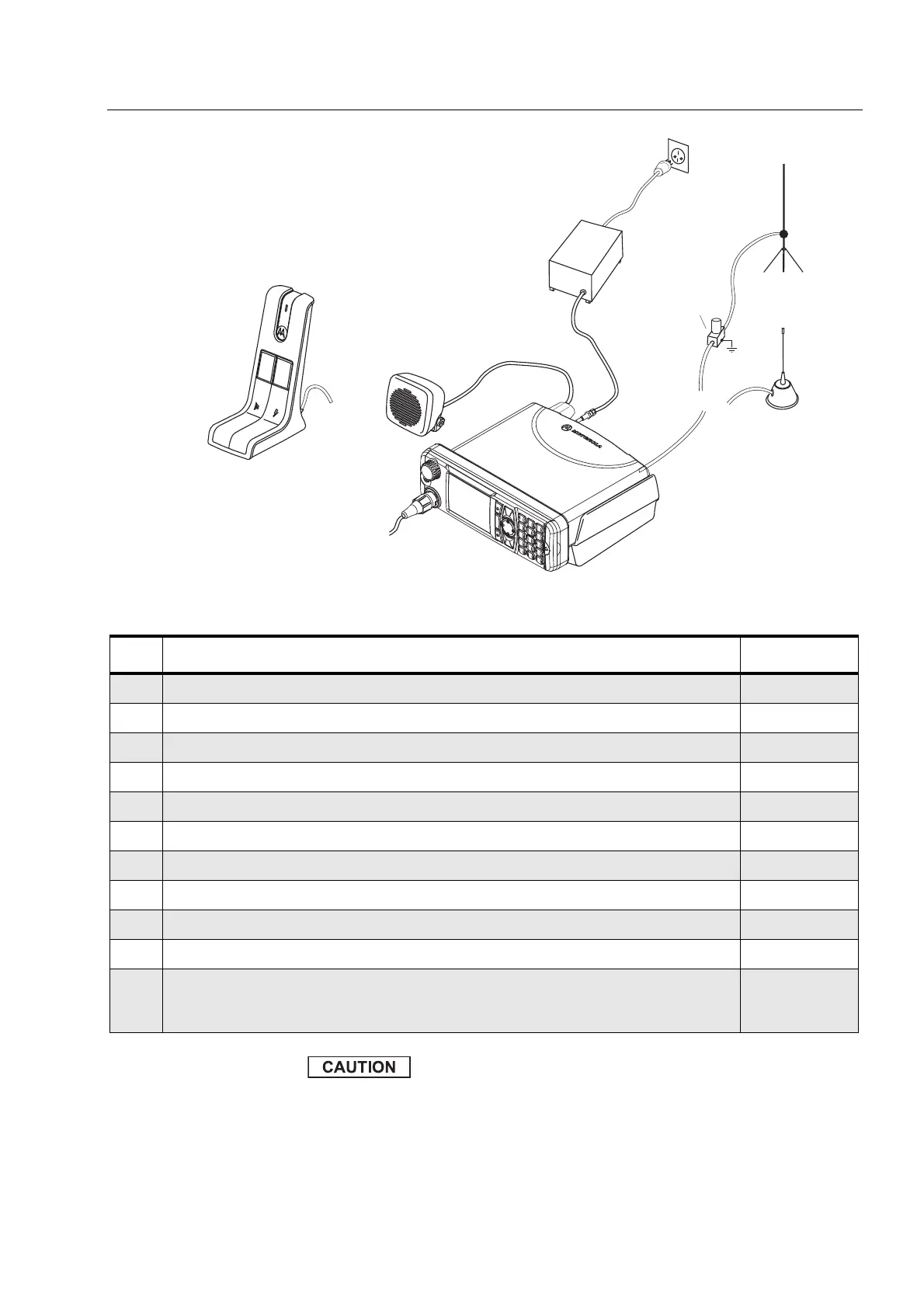

Figure 10 Desktop Mounting (See Table 4 for Part Numbers)
Table 4 Associated Components
Item Description Part Number
1 Desktop Microphone RMN5106
2 External Speaker 13 W GMSN4066
3 Small Loudspeaker 5 W GMSN4078
4 Desktop Tray w/o speaker GLN7318
5 12 V Desktop Power Cable GKN6266
6 Power Supply Unit PSU GPN6145
7 110 V PSU Line Cord US NTN7373R
8 230 V PSU Line Cord Euro NTN7374R
9 240 V PSU Line Cord UK NTN7375R
10 220 V PSU Line Cord Argentina NTN9246
11 Lightning Protector with Quarter-Wave Stub Protector in the appropriate frequency range
(for example, HUBER+SUHNER

: type 3400.17.0389 (UHF) or type 3400.17.0277
(800 MHz)
5W speaker (GMSN4078B) cannot sustain the maximum
audio output power of 13 W coming from the radio when
the volume is set to the maximum in Loudspeaker Volume
Max code plug. This causes the speaker cone to dislocate.
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
Speaker
Desk
Microphone
Power Supply
Wall
Outlet
Indoor Antenna
Radio in
Desktop Tray
Line Cord
with Ground
12 V Desktop
Power Cable
Antenna
Cable
Antenna Connector BNC
Outdoor Antenna
Lightning Protector
with Quarter-Wave
Shorting Stub
