42 MTM5400 Mobile Terminal Installation Manual INSTALLATION
Installing the Remote Mount Enhanced Control Head in a DIN Mount Bracket
1. Slide the Remote Mount Enhanced Control Head onto the DIN Mount Bracket until it snaps
into place.
2. Tighten the screws at both sides of the DIN Mount Bracket.

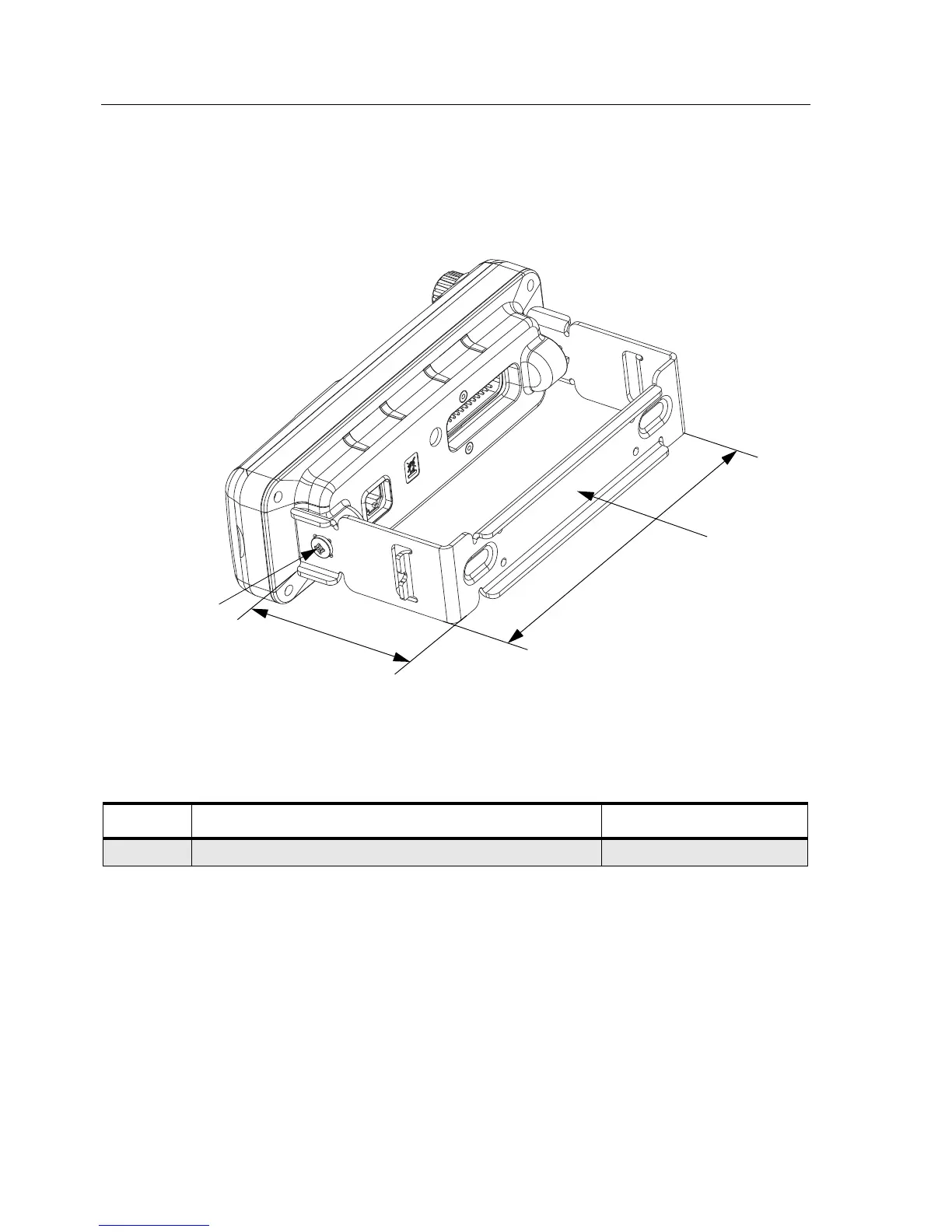

Figure 12 Remote Mount Enhanced Control Head Installation with DIN Mount Bracket
Table 6 Remote Mount Enhanced Control Head Installation with DIN Mount Bracket
- Mechanical Parts List for Installation
Item Description Part Number
1 & 2 DIN Mount Bracket Kit PMLN5093
