6 - 6 MTM700 Mobile Terminal / Basic Service Manual MAINTENANCE

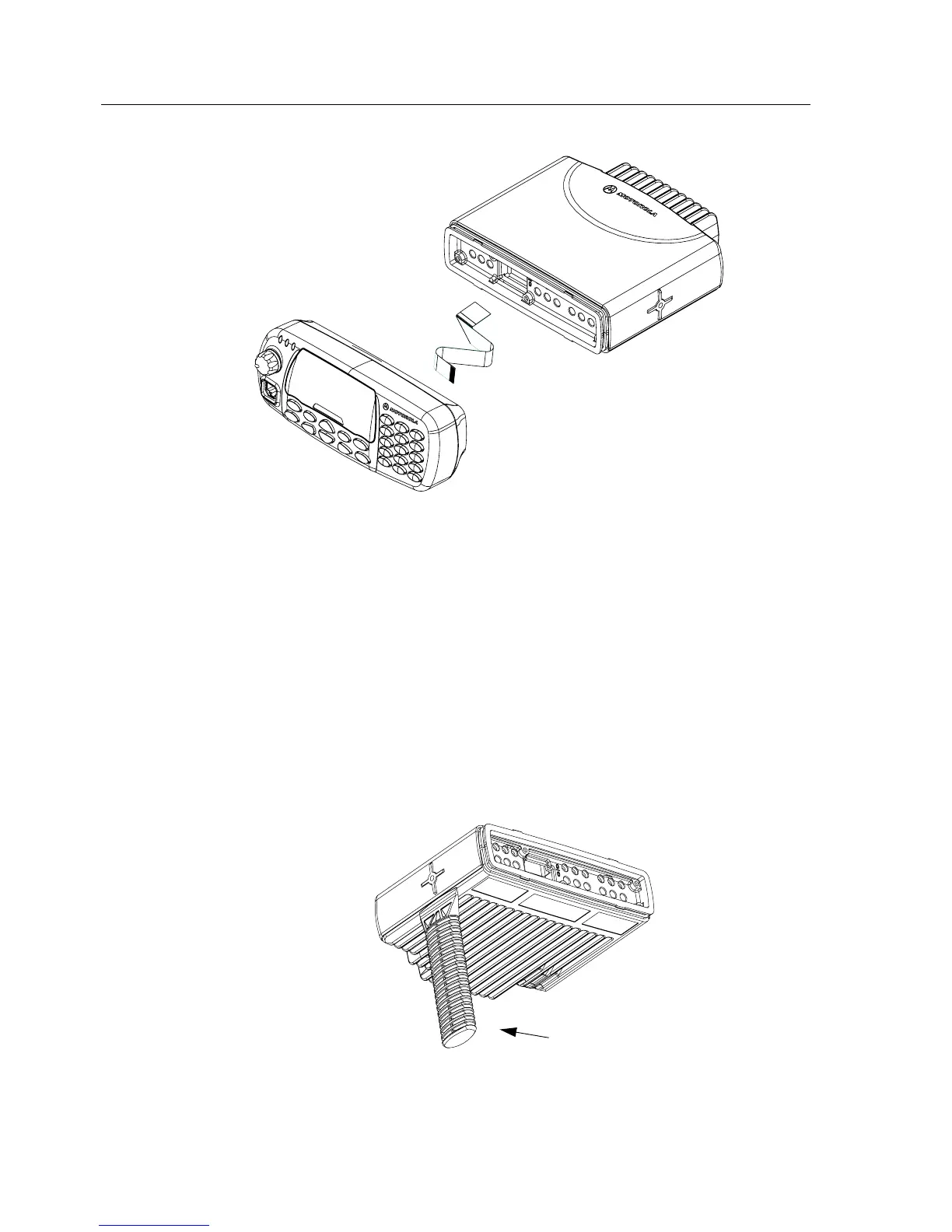

Figure 2 Flexible Connection Removal
4. Remove the flexible connection from the socket on the control head board.
Top Cover Removal
1. Insert the dismantling tool in the middle of the radio assembly side groove as shown in
Figure 6 - 3.
2. Press on the dismantling tool until the snap connectors on the side of the cover release from
the radio chassis.
3. Lift the top cover from the chassis.
Figure 3 Top Cover Removal.
CH_D__FLEX__M_CHAS
Dismantling
ZWG0130211-O
Too l
