Chapter 3: Site Preparation
3.2
Cabinets Installation Considerations
The equipment cabinets are not approved or intended for outdoor use.
3.2.1
MTS LiTE Cabinet Considerations
The equipment cabinet dimensions are: 450 mm (width)/480 mm (depth)/380 mm (height) as shown in
the following figure.

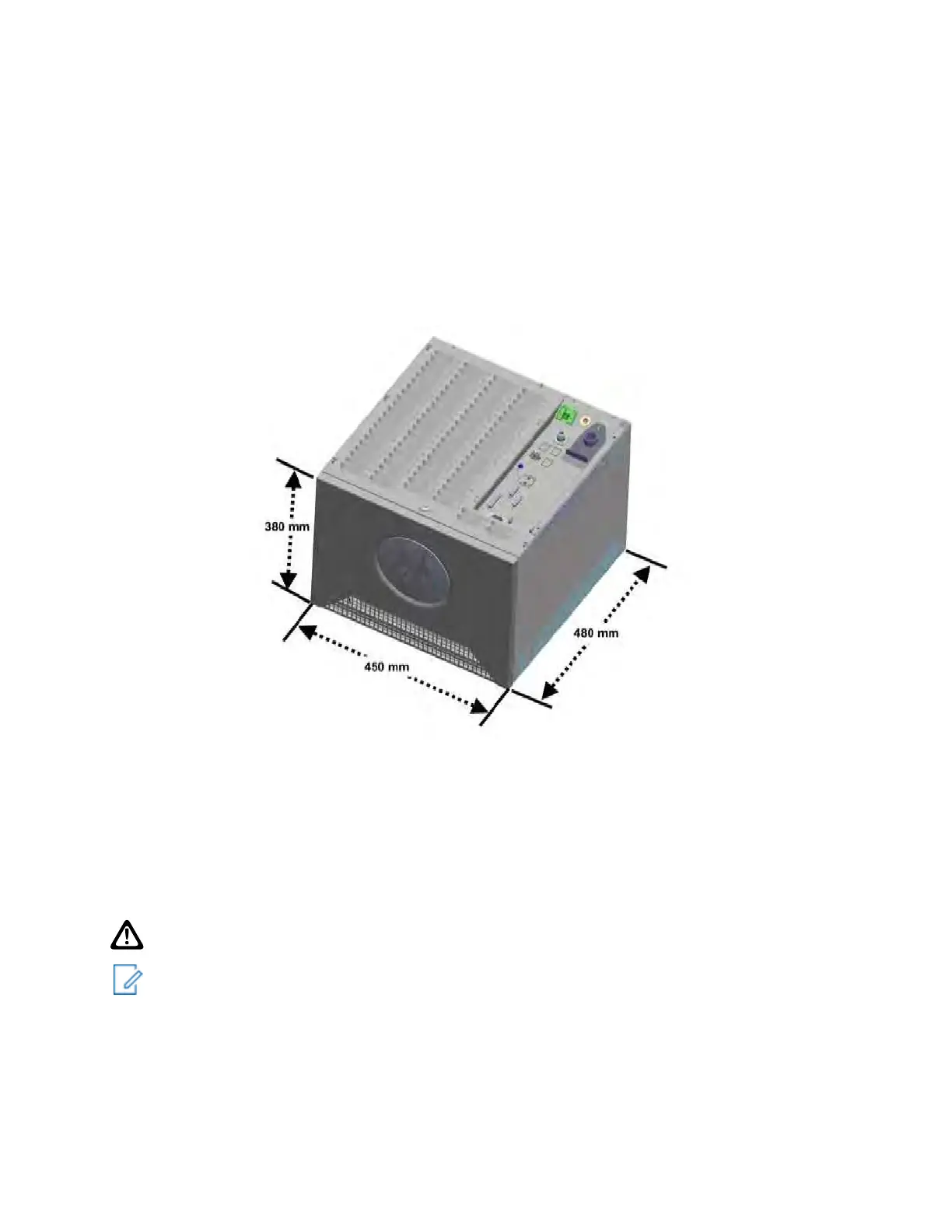

Figure 5: MTS LiTE Cabinet Dimensions
The equipment cabinet may be installed against adjacent equipment, however the following minimal
distances must be retained:
• 45 mm on both sides of the cabinet
• 800 mm of free space in front of the cabinet
The cabinet front door is removable. Figure 6: Suggested MTS LiTE Site Layout on page 65 shows
the cabinet layout within a suggested site. Additional free space is recommended at the front of the
cabinet to allow the service personnel to access the equipment easily.
CAUTION: To enable service access and assure the passive cooling ventilation, the free space
above the cabinet must be at least 20 cm. The antenna cabling may require additional space.
NOTICE: Enable the opening of all doors to the equipment room to at least 90 degree. The
cabinet has a removable door.
