Chapter 3: Site Preparation
CAUTION: To enable service access and assure the passive cooling ventilation, the free space
above the cabinet must be at least 20 cm. The antenna cabling may require additional space.
NOTICE: Enable the opening of all doors to the equipment room to at least 90 degree. The
cabinet has a removable door.

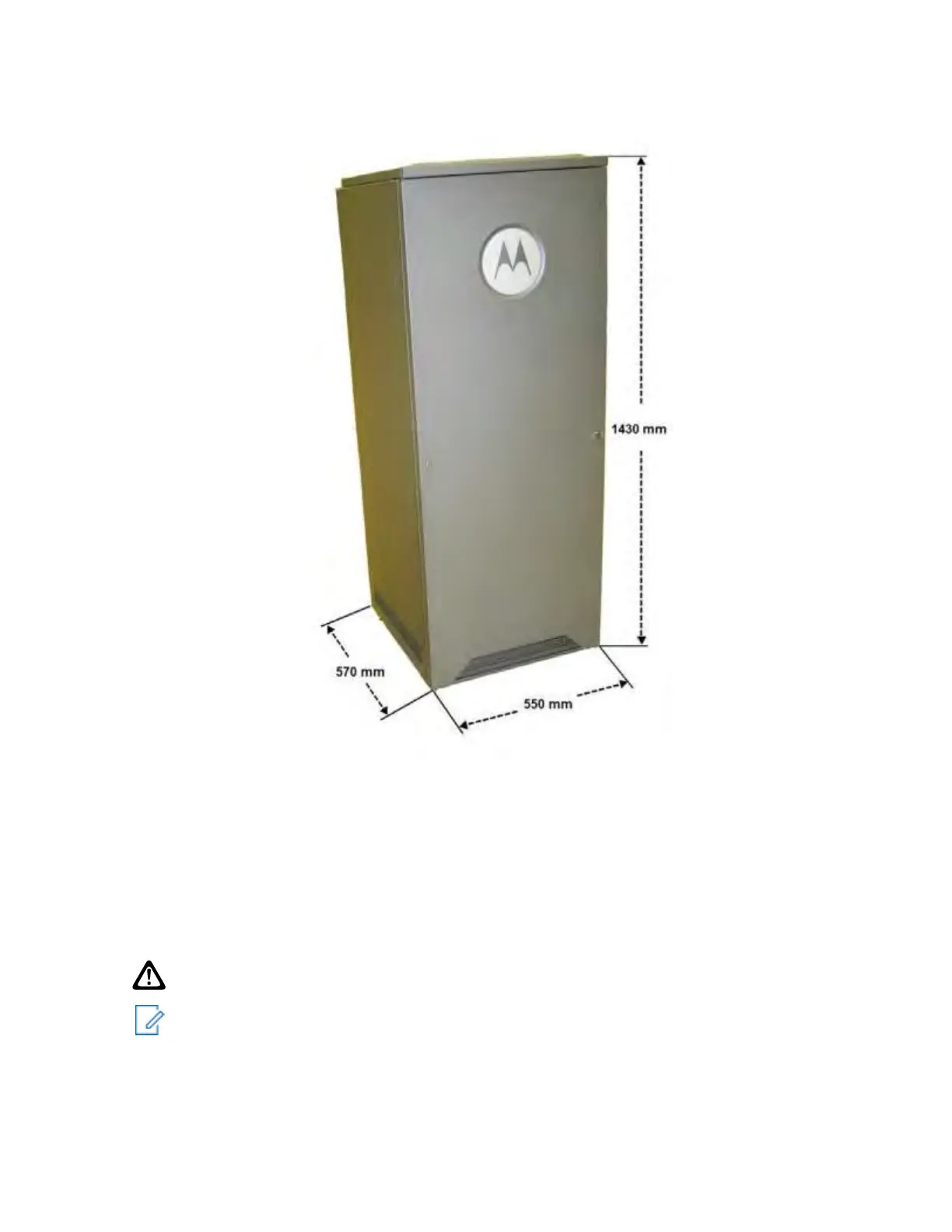

Figure 9: MTS 4 Cabinet Dimensions
The equipment cabinet may be installed against adjacent equipment, however the following minimal
distances must be retained:
• 25 mm on both sides of the cabinet
• 800 mm of free space in front of the cabinet
The cabinet front door has hinges on both sides and it can be opened right, left, or removed. Figure 10:
Suggested MTS 4 Site Layout on page 68 shows the cabinet layout within a suggested site.
Additional free space is recommended at the front of the cabinet to allow service personnel easy
access to the equipment.
