Volume Control
To increase the volume, push volume lever towards the . To decrease
the volume, push lever towards the .
To mute, hold lever to the for 2 seconds. To unmute, push lever to
the or press the PTT button. Volume returns to the previous level.

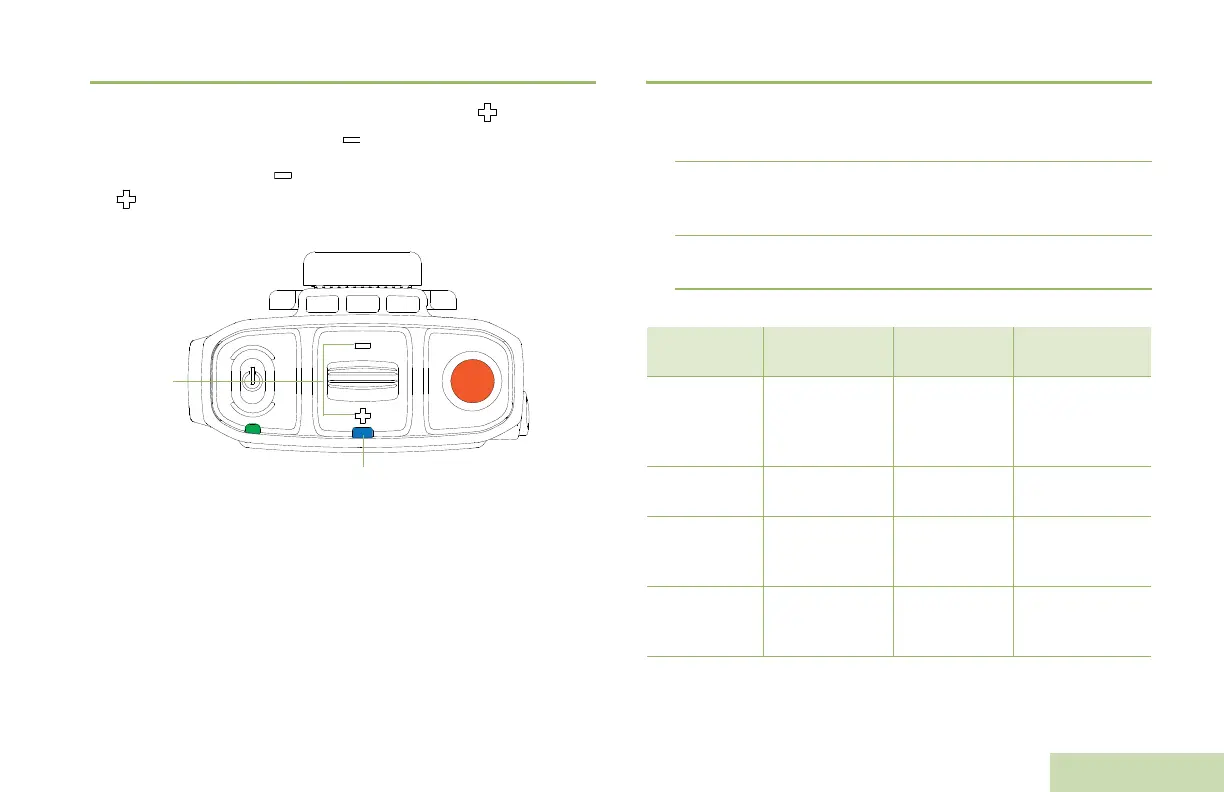

Figure 2 9: Volume Control
The color of the Audio Indicator LED changes according to Table 2.3 .
Pairing Your WRSM
Procedure:
1 Ensure both the radio and WRSM are powered on.
2 Place the blue dot (secure pairing spot) on the WRSM within one
inch of the blue dot (secure pairing spot) on the Mobile Mic
Gateway. Refer to Figure 2.10.
3 During pairing, the Audio Indicator LED blinks according to the
pairing status. Refer to Table 2.5 for pairing indicators.
NOTE: * You will hear Disconnected tone every 2 minutes after the
WRSM prompts “Disconnected”.
Volume
Toggle
Audio Indicator
Table 2.5: Pairing LED, Tone Indication and Voice Prompt
State
Audio Indication
LED
Tone
Indication
Voice Prompt
Not Paired Off
Pairing Ready
tone every
2 minutes
“Touch blue dots
together to
connect” every
2 minutes
Paired
Successfully
LED illuminated
Pairing
Successful tone
“Connecting”
Wireless Link
Connected with
Host
LED Heartbeat Connected tone “Connected”
Wireless Link
Disconnected
from Host
LED illuminated
Disconnected
tone every
2 minutes
“Disconnected” *
