Motorola PMMN4095 - Operating Instructions

DUAL-UNIT CHARGER PMLN6714_
English
26
Operating Instructions
Dual-Unit Chargers are intended for use only with the authorized
Motorola battery and power supplies listed in Table 4.1 and Table
4.2; usage with unauthorized products may prevent proper
operation and may damage the device.
The battery charger will accommodate a WRSM with an attached
battery or battery alone in either pocket. To charge a battery, use the
following procedure:
1 Plug the power supply cord into the barrel connector on the back of
the charger.
2 Plug the power supply into the appropriate AC outlet. The charger
LED will flash single green once to indicate a successful power-up.
3 Insert a WRSM with battery into the charger’s pocket by:
a Aligning the groove on each side of the battery with the
corresponding raised rail on each side of the charger pocket.
b Sliding the WRSM with battery into the charger pocket,
ensuring complete contact between the charger and battery
contacts.
4 When the WRSM with battery is properly seated in the pocket, the
charger LED will light in accordance with Table 4.3.
5 Insert a battery into the charger’s pocket by:
a Aligning the slot on each side of the battery with the
corresponding raised rail on each side of the charger pocket.
b Sliding the battery into the charger pocket, ensuring complete
contact between the charger and battery contacts.
6 When the battery is properly seated in the pocket, the charger LED
will light in accordance with Table 4.3.
NOTE: Charge new batteries overnight to ensure full charge. To
minimize charge time, it is recommended to turn the WRSM
OFF.
The Dual-Unit Charger is not designed to accommodate the
alkaline battery tray.

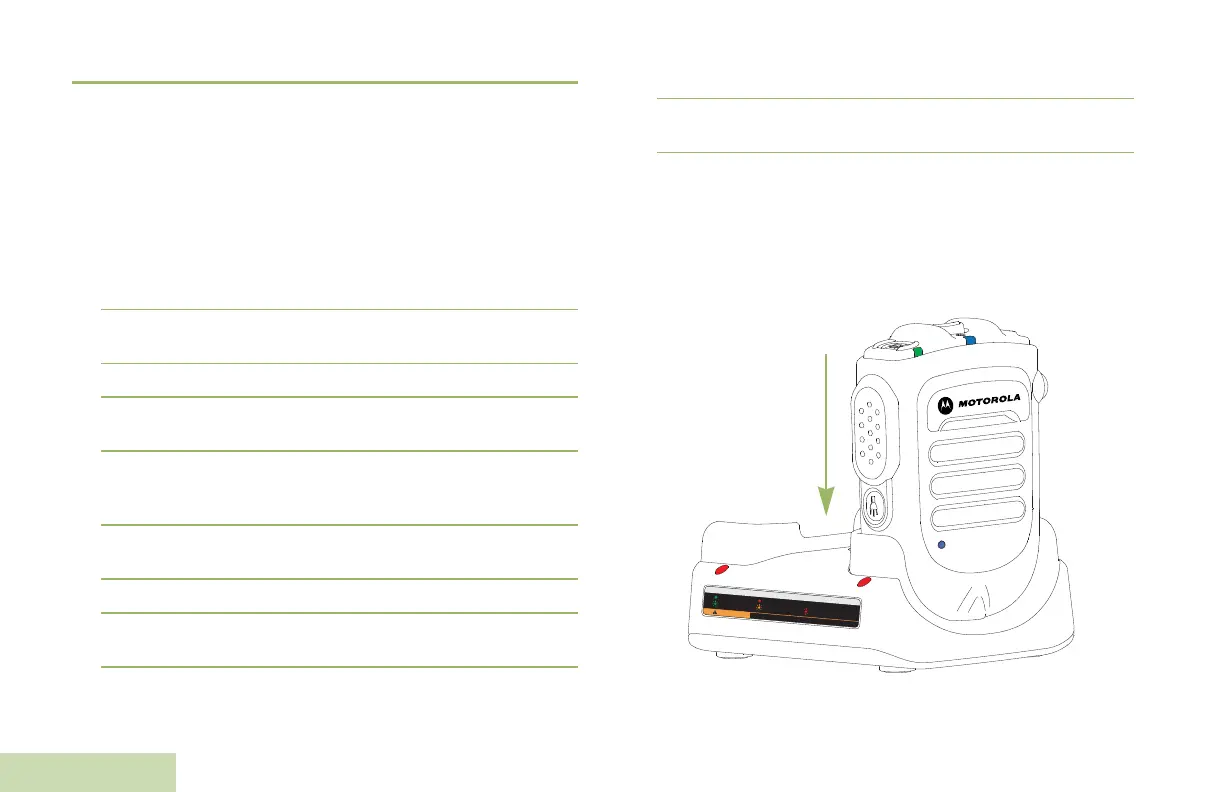

Figure 4.3: Charging posi ion of he WRSM on a Dual-Unit Charger
LED STATUS INDICATORS
Ready
>90%
CAUTION
Charging
Standby
SK A A A Y Y
Unable to Charge
