Motorola RFS6000 Series User Manual

Hardware Setup
11
4 Hardware Setup
4.1 Cabling Information

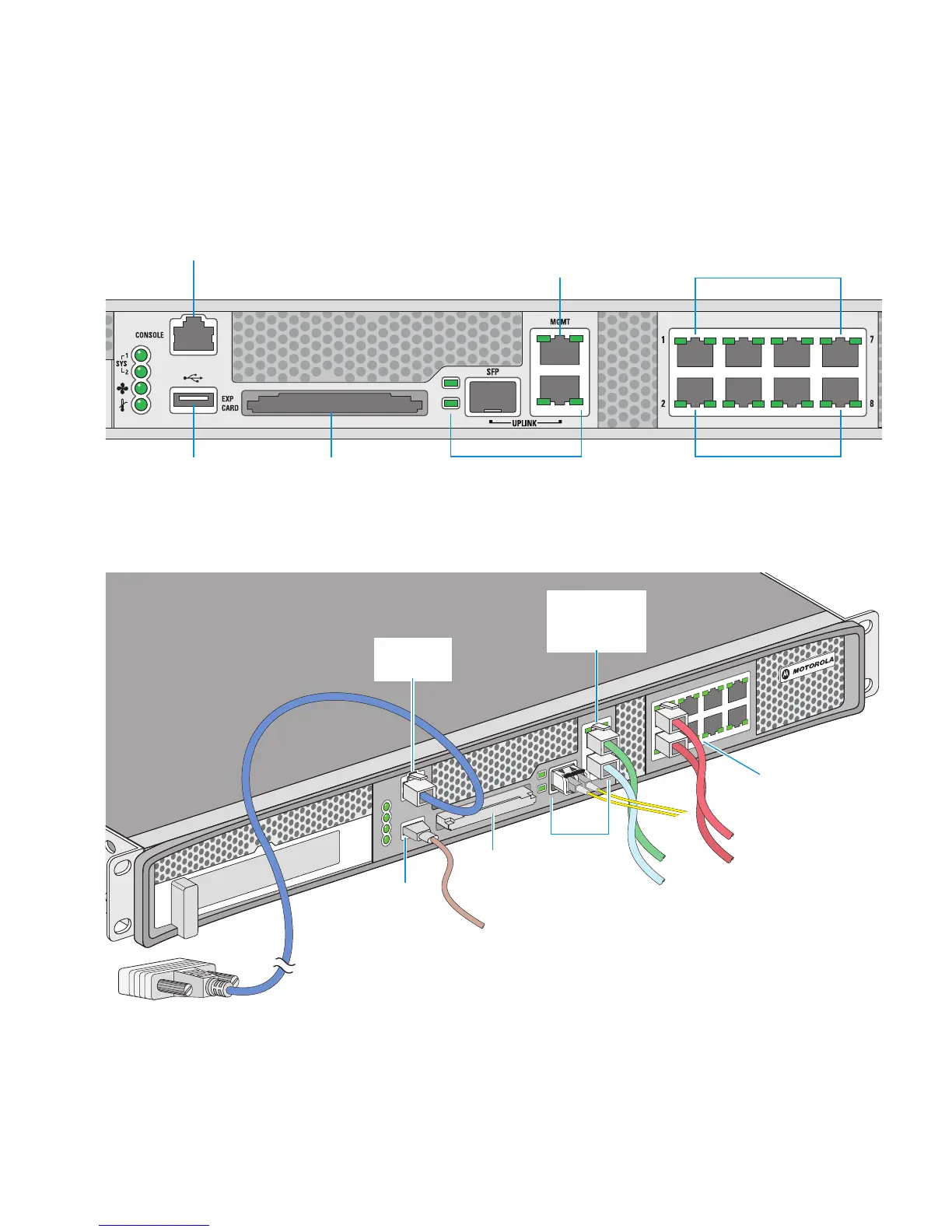

The RFS6010 RF Switch has nine RJ-45 Gigabit Ethernet ports, one Gigabit SFP (fiber) port, one Out-
of-band management port and one Console connector. The above diagram shows each of those ports
and the cables or devices attached to them. The sections that follow describe detailed connection
and cabling information for each port. The switch also includes an ExpressCard slot for future
Out-of-band
management
Console
USB
ExpressCard
UPLINK
PoE enabled gigabit ethernet
ports 1, 3, 5, 7
Ports 2, 4, 6, 8
Gigabit Ethernet
RJ-45 connectors
with per-port LEDs
and PoE
USB
port
Out-of-band
management
port
ExpressCard
UPLINK
Console
connector
