Motorola RFS6000 Series - Installing the Gigabit Ethernet SFP

Hardware Setup
13
4.2.1 Installing the Gigabit Ethernet SFP
1. Open the bail on the transceiver.
2. Insert the SFP transceiver into the corresponding port on the switch.
3. Once the SFP transceiver is properly seated in the port, close the bail to lock the transceiver in
place.

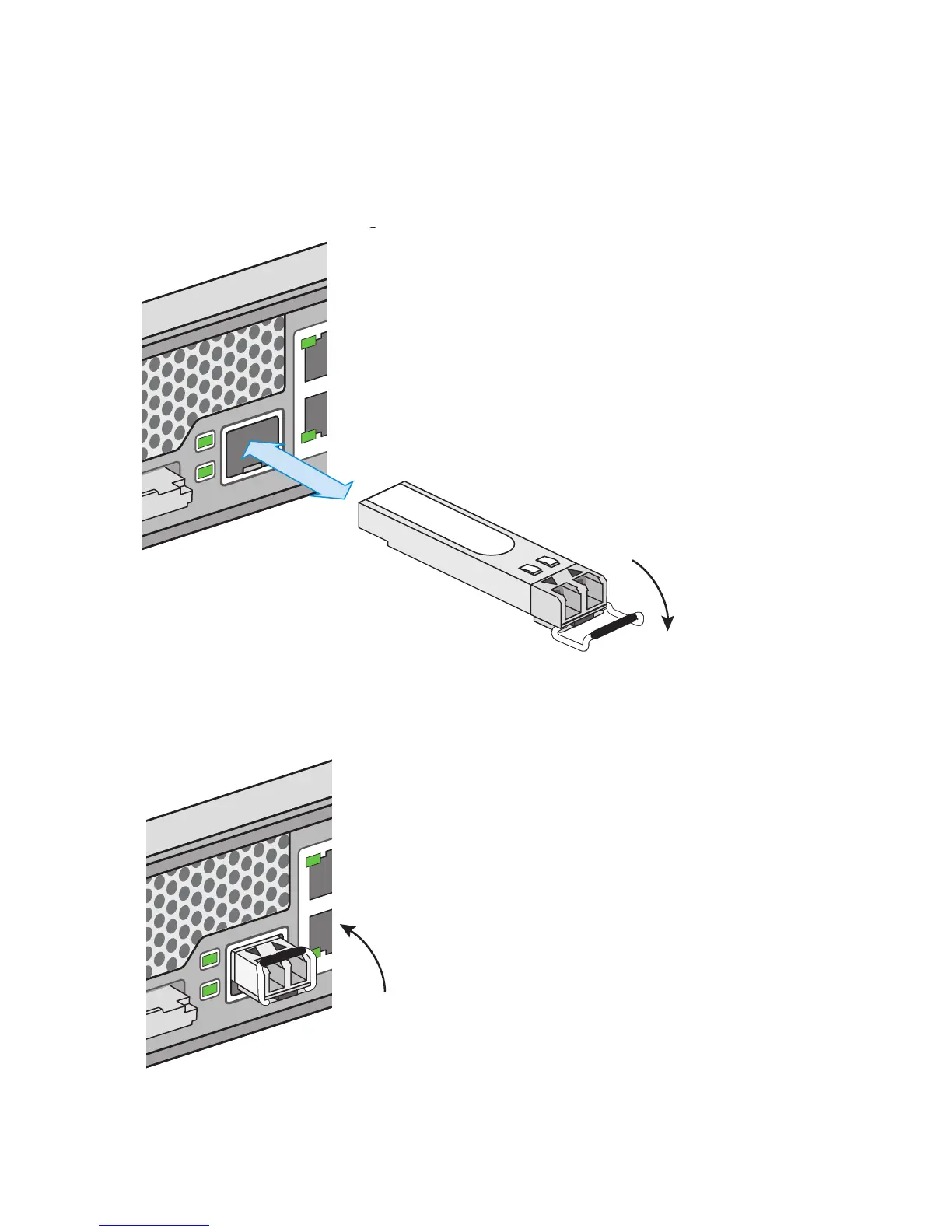

Open bail to insert or remove
SFP transceiver
Close bail to lock
SFP transceiver in place
