Wall Mounting the Modem
If you choose to mount the wireless modem on a wall, do the following before starting:
• Locate the unit as specified by the local or national codes governing residential or
business cable TV and communications services.
• Follow all local standards for installing a network interface unit/network interface
device (NIU/NID).
• Disconnect the AC power plug is from the wall outlet and verify that all cables are
removed from the back of the modem before starting the installation.
• Decide if you are mounting the modem horizontally or vertically.
• Gather the following items:
Wall-mounting template
Applicable screwdriver: Phillips or flathead
Two M3.5 (#6) screws with a flat underside and maximum screw head diameter
of 9.0 mm to mount the gateway.
Note: Contact a qualified installer to determine the appropriate screw length
needed for mounting the gateway.

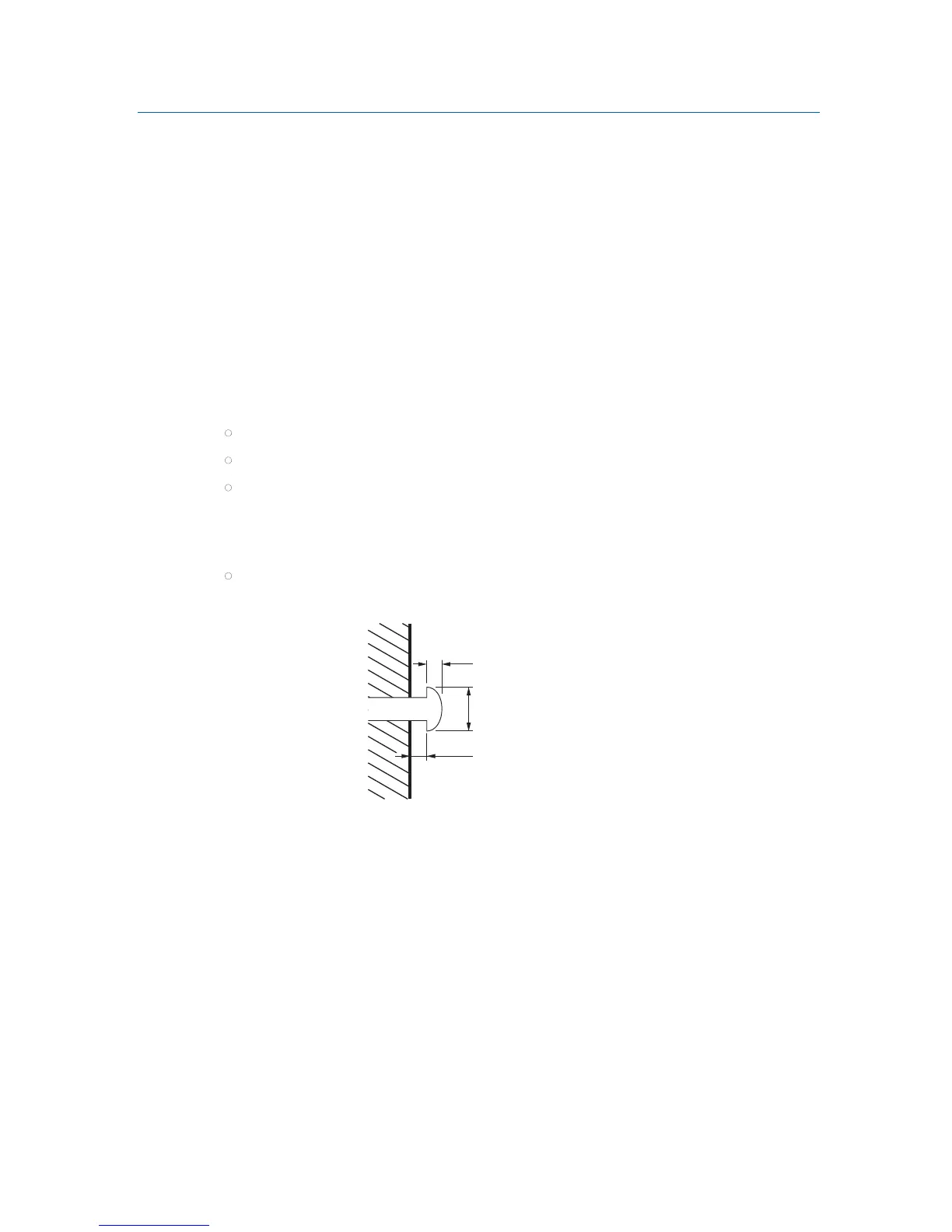

See the dimensioned view below for the spacing needed between the screw
head and wall:
9.0 mm (0.35”) maximum
screw head diameter
2.6 mm (0.10”) maximum
screw head thickness
2.5 mm (0.10”) minimum
screw head to wall spacing
Note: If possible, mount the modem to concrete, masonry, a wooden stud, or some
other solid wall material. Use anchor bolts if necessary (for example, if you mount the unit
on drywall).
Installing the Modem •
Motorola SURFboard • User Guide 6
