Replacing the 2,940 mAh Battery
To replace the 2,940 mAh battery:
1. Press the Power button until the menu displays.
2. Touch Power off.
3. Touch OK.

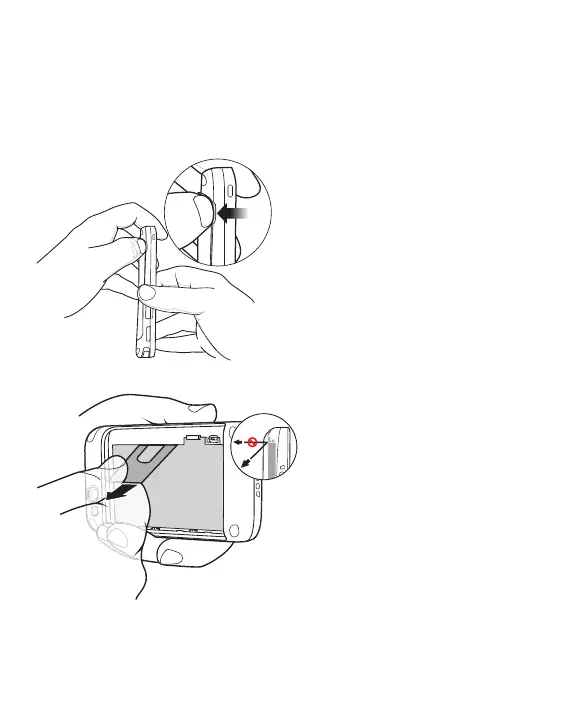

4. Place thumbnail at battery cover notch and lift the battery cover.
5. Pull the battery tab down at a 45° angle.
6. Remove the battery out of the battery compartment.
7. Align the three tabs on the bottom of the replacement battery with the three slots
in the battery compartment.
8. Press the battery down and rotate until it locks into place.
