12 VC70 Vehicle Computer
Mounting onto an Over-Head Cage Example

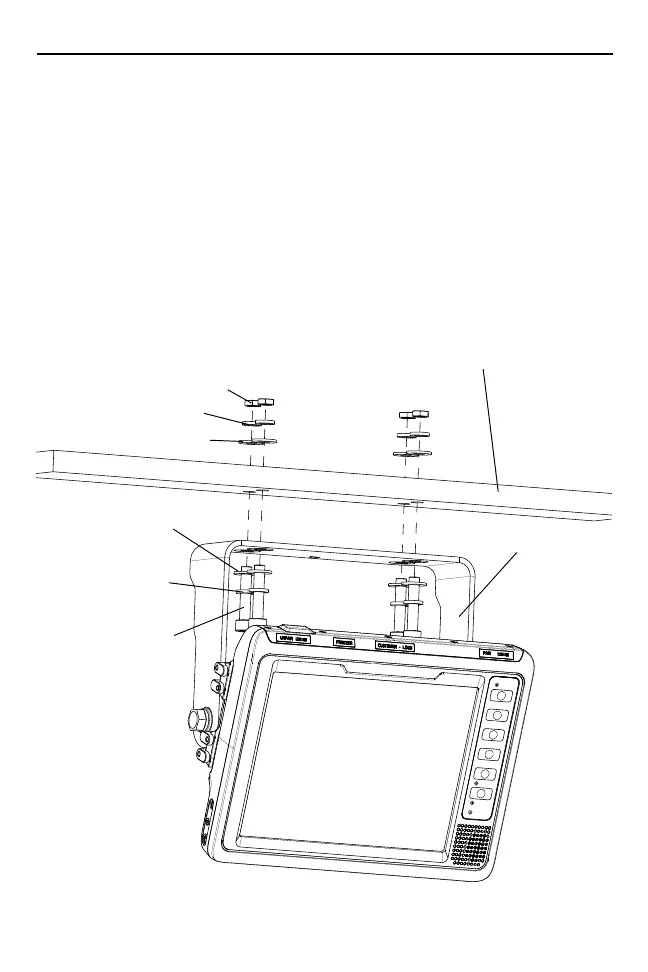

The diagrams below illustrates a typical installation where the vehicle
computer is mounted on an overhead cage. A customer supplied
mounting plate must be used that can withstand the weight of the vehicle
computer under vibration and shock. The plate must be made of
stainless steel or hardened steel with the following dimensions: 3.0 in.
(76.0 mm) wide, 8.66 in. (220.0 mm) long and 0.2 in. (5.0 mm) thick. The
plate must be secured with hardware or to the underside of the cage by
welding.
Customer Supplied Mounting Plate or Customer
Supplied Mounting Plate Welded to Beams
Nuts
Flat Washers
Allen Head Screws
U-mount
Lock Washers
Lock Washers
Flat Washers
To Next Page
