Installing the VC70 on a Cart, a Wall, or a Desktop
To mount the vehicle computer on a cart, a wall, or a desktop:
• Install the U-mount to the desktop.
• Connect the vehicle computer to the AC power supply.
Mounting the Bracket on a Desktop
CAUTION If mounting to a thin surface such as drywall or
plywood, a reinforcing plate is required.
NOTE The VC70 ships with four No. 8 Allen head screws
(M10x50mm) for securing the mounting bracket. If the
supplied cap screws are not long enough, use M10 - X
stainless steel Allen head screws where X represents the
length in millimeters of the required screws.

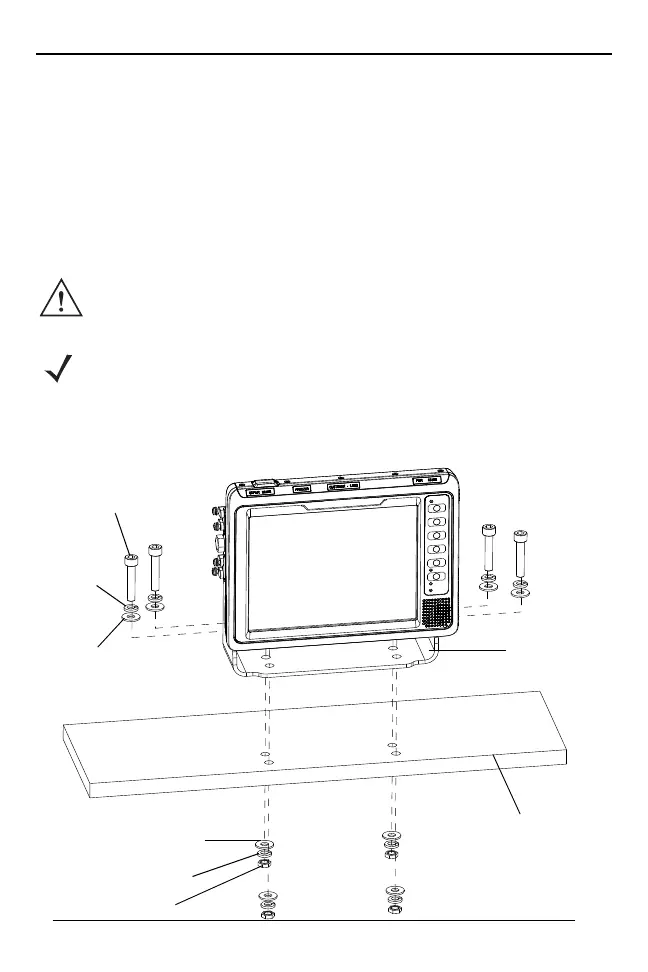

Nuts
Lock Washers
Allen Head Screws
U-mount
Mounting Surface
Flat Washers
Lock
Washers
Flat Washers
To Next Page
