14 VC70 Vehicle Computer
Installing the Optional QWERTY/AZERTY Keyboard
The keyboard kit contains the following items:
• Keyboard
• Right and left mounting arms
• Four Torx head screws with flat and lock washers
• Six screws with captive flat and lock washers (for keyboard fastening)
• Two locking knobs, two flat washers and two lock washers.
1. Position the keyboard on the tray and fasten six M4x10mm screws.
2. Attach the left and right mounting arms to both sides of the VC70,
using the M5x14mm Torx head screws with flat and lock washers.
Only tighten the cap screws three turns.

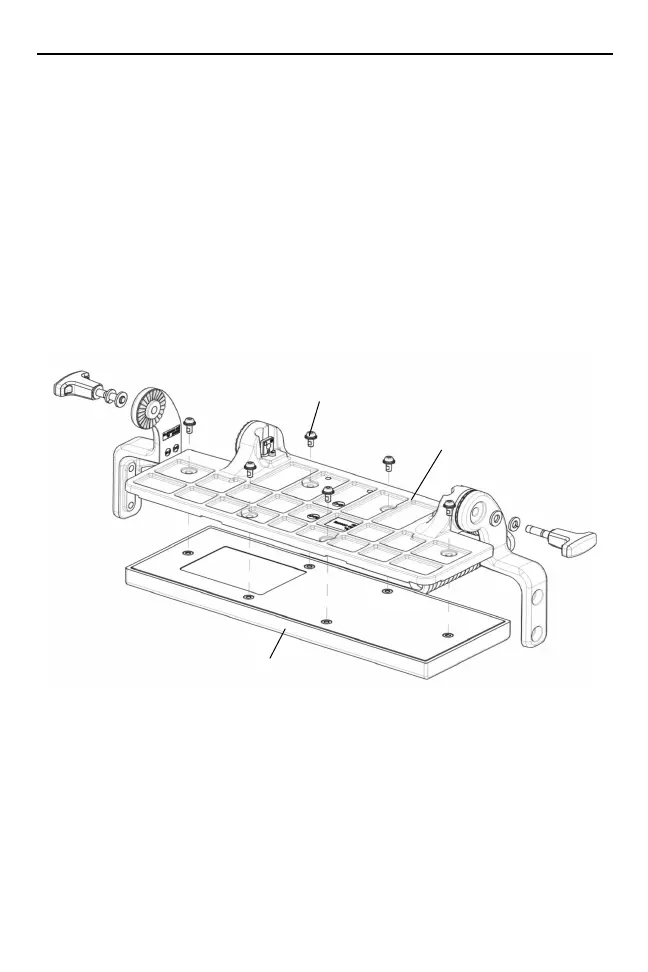

6 Screws with captive washers
Tray
Keyboard
To Next Page
