6816985H01-F February 14, 2012
700/800 MHz Troubleshooting Waveforms: PP18 RX RF Input at Antenna Switch 7.4-23

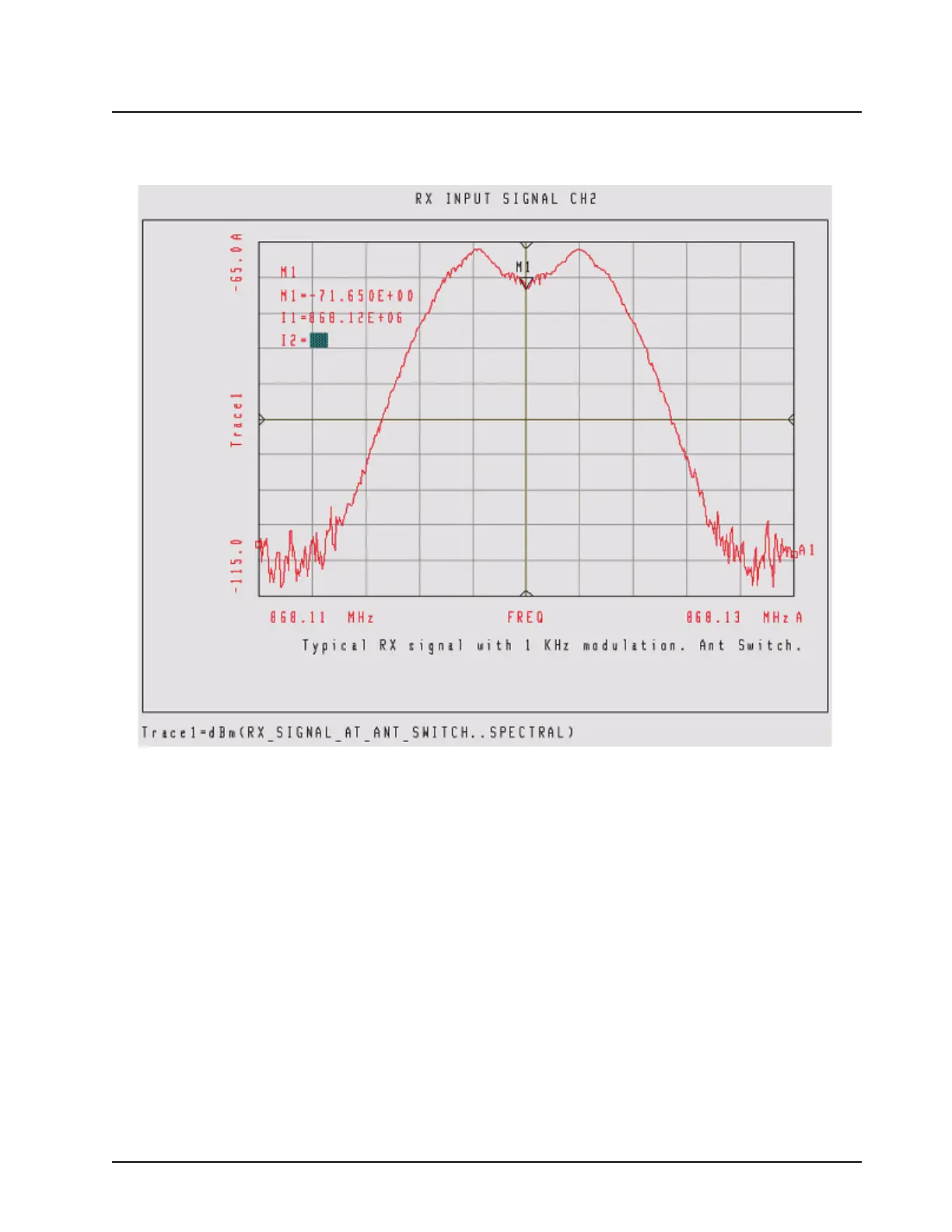

7.4.22PP18 RX RF Input at Antenna Switch
Probe point: FL1, pin 1.
Typical RX signal with 1 kHz modulation. Display shows modulation components of carrier.
