6816985H01-F February 14, 2012
Troubleshooting Waveforms: TP10 TRB 7.5-15
7.5.14TP10 TRB
Test point: TP001.

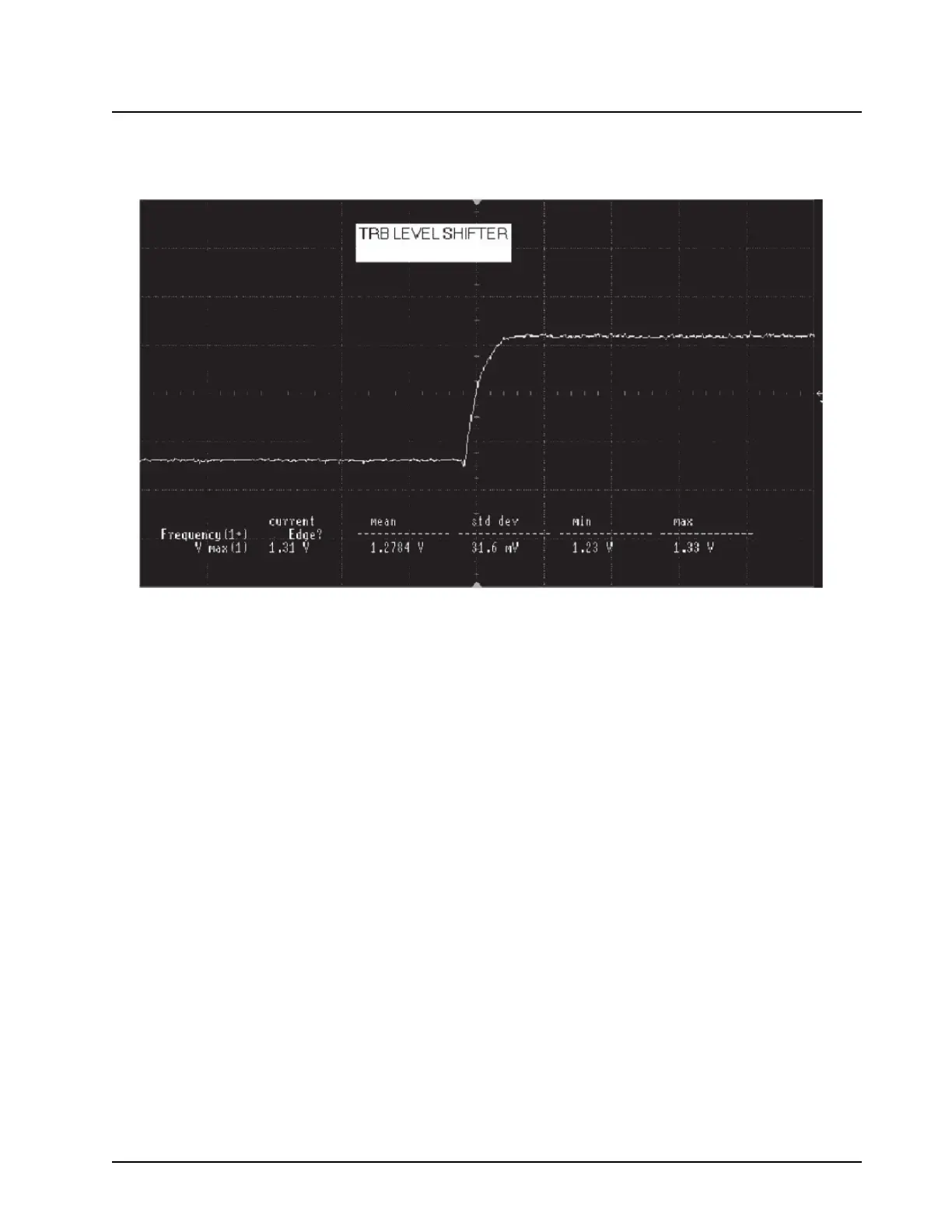

Signal shows transition between RX mode (low) and TX mode (high).
