CSD Series Variable Frequency AC Drive
MOTORTRONICS
- 67 -

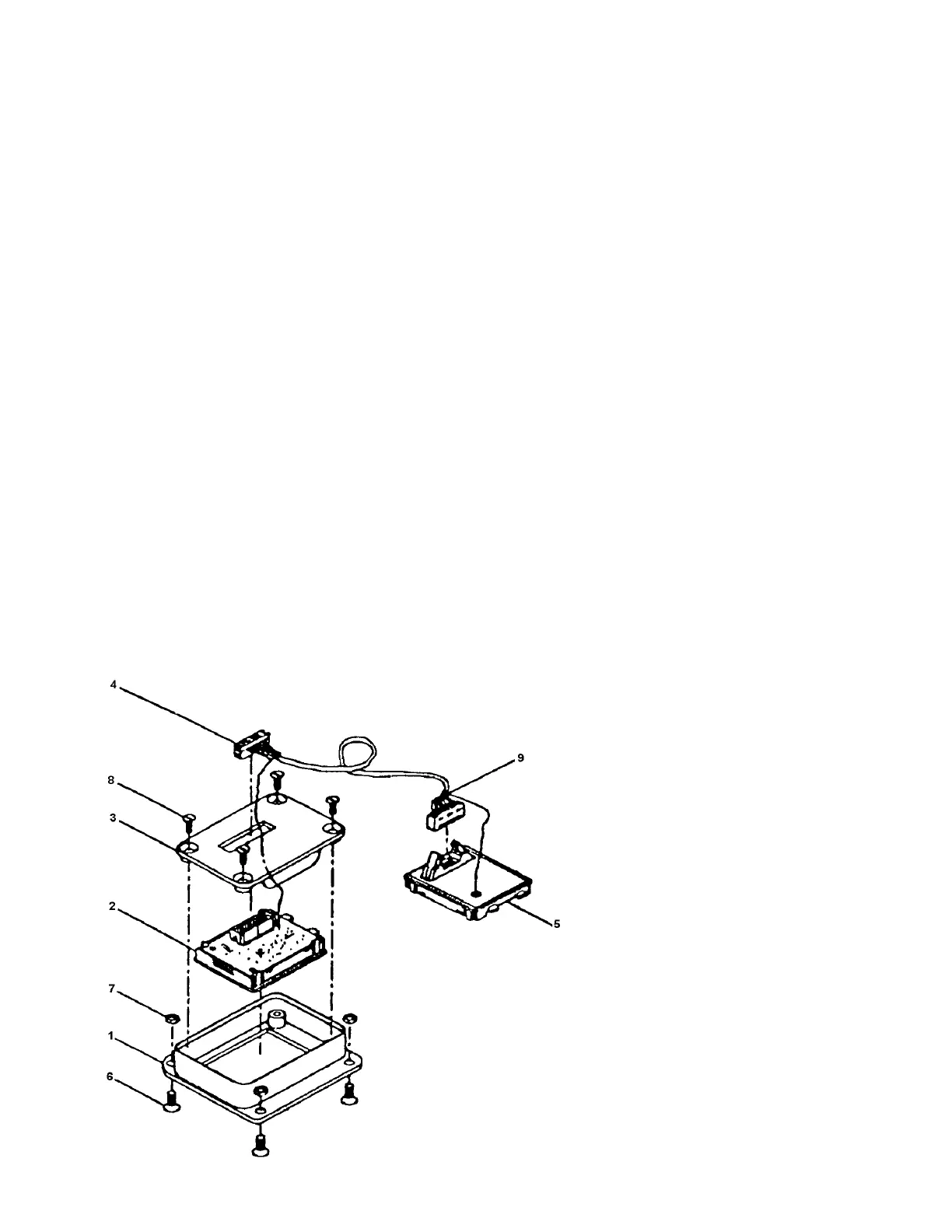

9.4.1Digital Operator Remote Cable Connection (CSDW300X)
A. Plastic housing for digital operator
front side 1
rear side 3
B. Digital Operator 2
C. Remote cable 4
CSDW 3001 (1 meter)
CSDW 3002 (2 meter)
CSDW 3003 (3 meter)
D. Remote cable adapter 5
E. Accessory screws 6, 7, 8
• Turn off the power to the unit and verify that the power LED is
extinguished.
• Remove the digital operator 2 and grounding wires (PE) from the
unit.
• Place the digital operator 2 into plastic housing c and e then use
screw 8 to assemble the housing.
• Put the remote cable adapter 5 into the unit.
• Connect the remote cable terminal 4 to the digital operator, and
connect the grounding wire.
• Connect the second remote cable terminal 9
to the remote cable adapter 5 and connect the grounding wire.
• Use accessory screws 6 and 7 to attach the remote operator to the
panel.
• Proper grounding on the unit is necessary to prevent interference.
(Grounding resistor must be less than 100 ohm, and the diameter of
the grounding wire must be larger than 2mm
2
.)
Figure 9 - 4
CSD300X Connection
