Mounting Dream MD2298 - Step 2: Attach Wall Plate to Wall; Parts and Hardware for Wall Mounting; Wood Stud Wall Installation (2 A)

For wood stud installation, follow STEP 2A
For concrete installation, follow STEP 2B on PAGE 6
<16mm
(5/8")
24"(609.6mm)
/18"(457.2mm)
/16"(406mm)
Min. Wood Stud Size:
nominal 2"(51mm)
actual 1 1/2"(38mm)
Min. Wood Stud Size:
nominal 4"(102mm)
actual 3 1/2"(89mm)

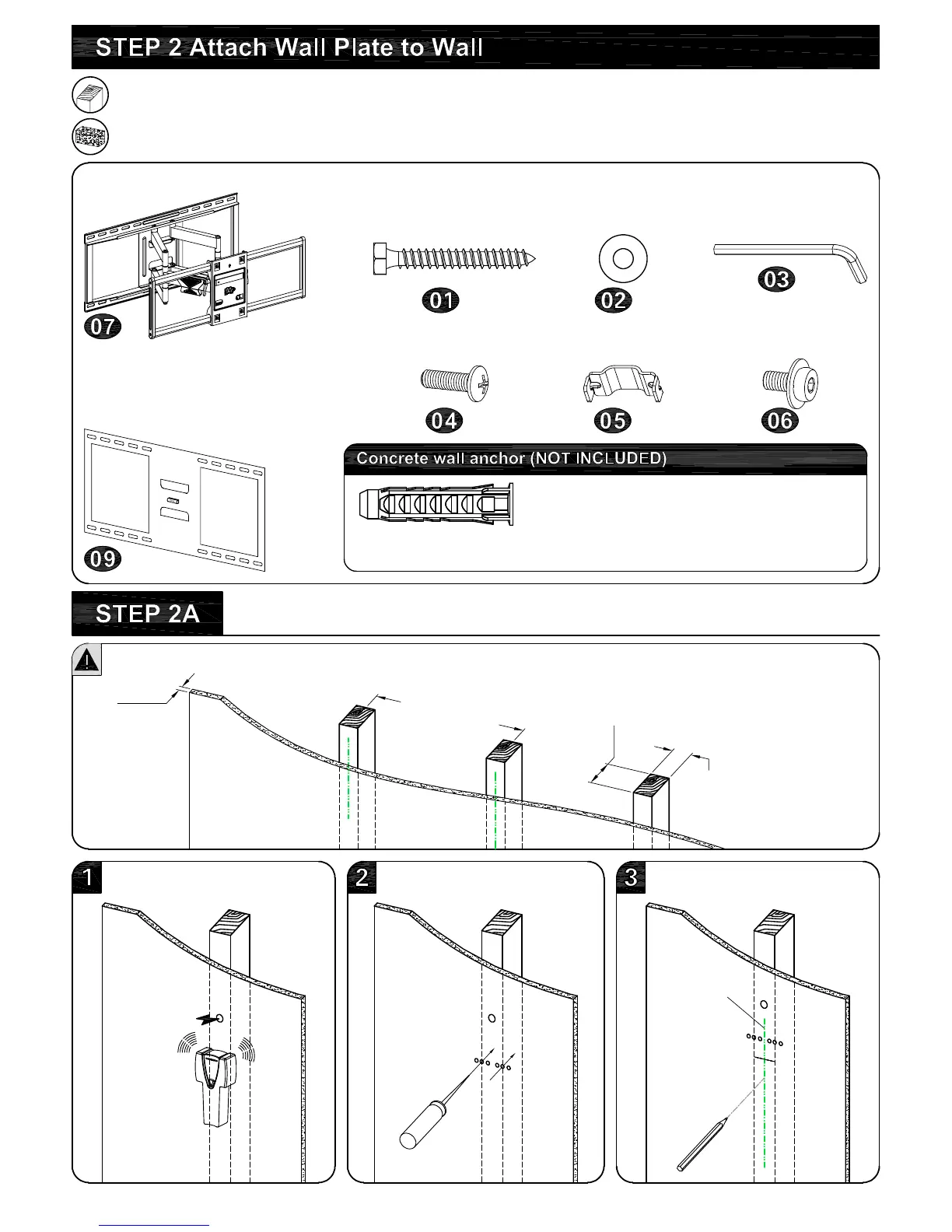

Parts and Hardware
Lag Bolt M8x60mm
M8 Washer
Wood Stud Installation
O
x4 x4
4
Centre line
Wall Plate
Unit
Contact us at telephone (626) 604-9048 (USA)
Mon - Fri 10am - 6pm (Pacific Time) or email us by
customerservice@mountingdream.com to have
these additional pieces shipped directly to you.
Concrete Wall Anchor
4pcs
Allen Key
x1
M5x12mm Bolt
x4
x1
x1
Mounting Template
Tube Clip
x2
M6X12 Bolt
(Pre-assembled)
x2
