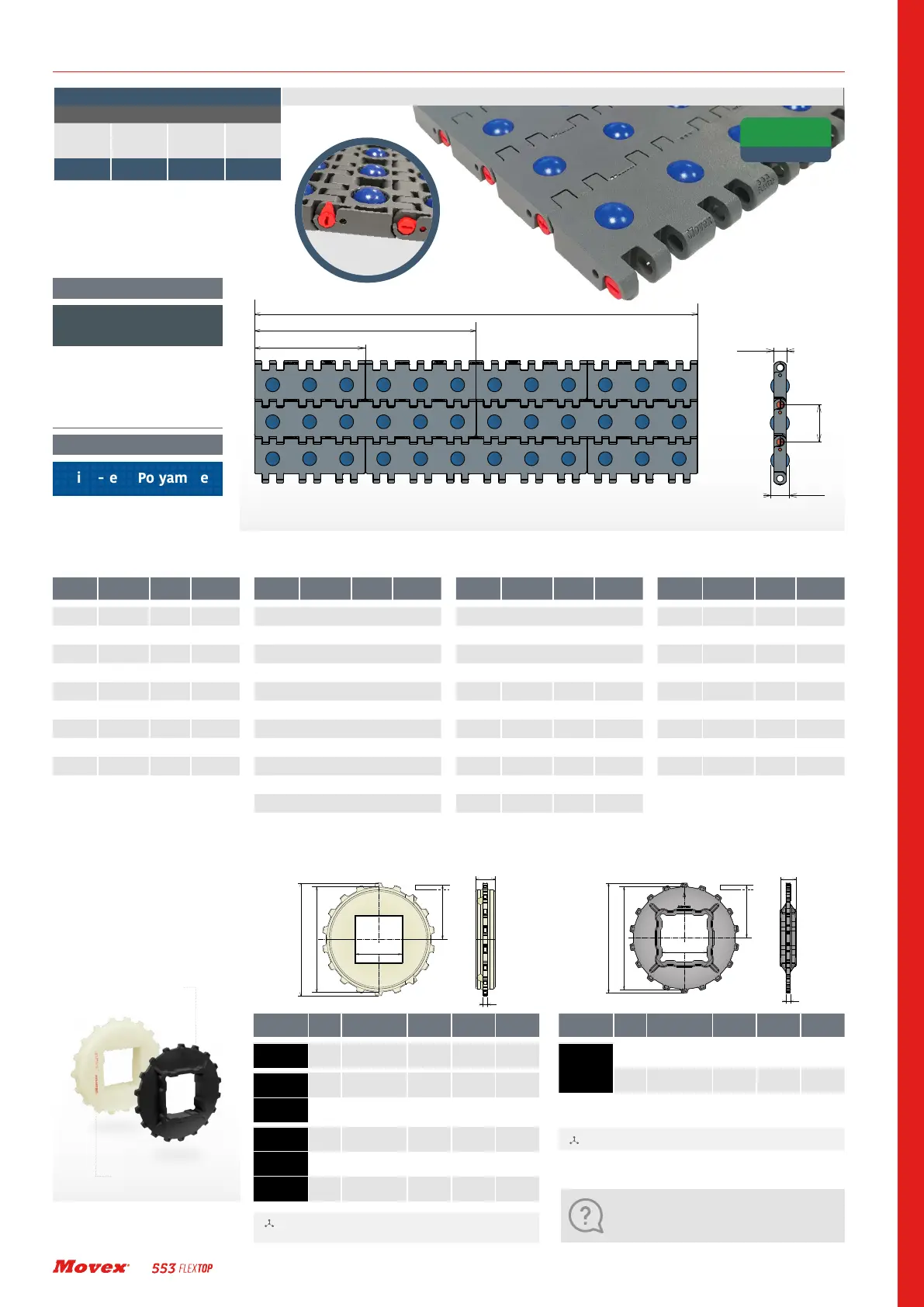

Movex 553 FLEXTOP - Belt and Sprockets Specification

15
ENGINEERING MANUAL
Supplied coil length: Width ≤ 30” : 1.524 m (60 pitches) - Width > 30” : 1.016 m (40 pitches)
On request wider belts are available with 3” increments.
25,4 1.00
8,7
0.34
6”
W (inch)
M=3”
12,7
0.5
25,4
1.00
8,7
0.34
6”
W (inch)
M=3”
12,7
0.5
Material
LFG - Code 27
Low friction Acetal
Sphere material
High-tech Polyamide
Max working load:
Weight:
Temp. range dry:
Temp. range wet:
Pin material:
Belt available also in RAL 5005 (Blue)
Max working load:
Sphere Diameter:
27500 N/m (1850 lbs/ft)
10 Kg/m² (2.04 lbs/ft²)
-40÷80 °C (-40÷176°F)
-0÷65 °C (+32÷149°F)
PBT white
15 N (3.37” lbs)
12,7 mm (0.50”)
Belt and Sprockets specification
Backflex radius min.: 25 mm
25.4 mm
PITCH
Version A - Standard
Continue >>
Series Material Width Version
5530 27 0003 A
5530 27 0006 A
5530 27 0009 A
5530 27 0012 A
5530 27 0015 A
5530 27 0018 A
5530 27 0021 A
5530 27 0024 A
5530 27 0027 A
5530 27 0030 A
5530 27 0033 A
Continue >> Continue >>
Series Material Width Version
5530 27 0069 A
5530 27 0072 A
5530 27 0075 A
5530 27 0078 A
5530 27 0081 A
5530 27 0084 A
5530 27 0087 A
5530 27 0090 A
5530 27 0093 A
5530 27 0096 A
5530 27 0099 A
Series Material Width Version
5530 27 0102 A
5530 27 0105 A
5530 27 0108 A
5530 27 0111 A
5530 27 0114 A
5530 27 0117 A
5530 27 0108 A
5530 27 0111 A
5530 27 0114 A
5530 27 0117 A
CODE STRUCTURE GUIDE
(Example)
5530 27 0042 A
Series
*Material
Width Version
Art-Nr. Z-
Bore
(mm-in)
PD
(mm-in)
OD
(mm-in)
S
(mm-in)
166108
12
40x40
1.57x1.57
98,1
3.86
97,6
3.84
44,5
1.75
166208
15
40x40
1.57x1.57
122,2
4.81
121,9
4.80
56,5
2.22
166210
60x60
2.36x2.36
166308
18
40x40
1.57x1.57
146,3
5.76
146,0
5.75
68,5
2.70
166310
60x60
2.36x2.36
166311
65x65
2.56x2.56
Material: Reinforced polyamide
Material: Polyamide
Screws: Stainless steel Nuts: Zinc plated steel
S
OD
PD
B
6
24
S
OD
PD
B
6
21
• Optimized hygenic
• Quick replacement
• Easy clean and installation
• Heavy duty design
Drive split sprockets - Machined and molded
Series Material Width Version
5530 27 0036 A
5530 27 0039 A
5530 27 0042 A
5530 27 0045 A
5530 27 0048 A
5530 27 0051 A
5530 27 0054 A
5530 27 0057 A
5530 27 0060 A
5530 27 0063 A
5530 27 0066 A
Machined sprockets with round
bore are available on request.
Art-Nr. Z-
Bore
(mm-in)
PD
(mm-in)
OD
(mm-in)
S
(mm-in)
166511
18
40x40
1.57x1.57
146,3
5.76
146,0
5.75
68,5
2.70
166510
