SORTER

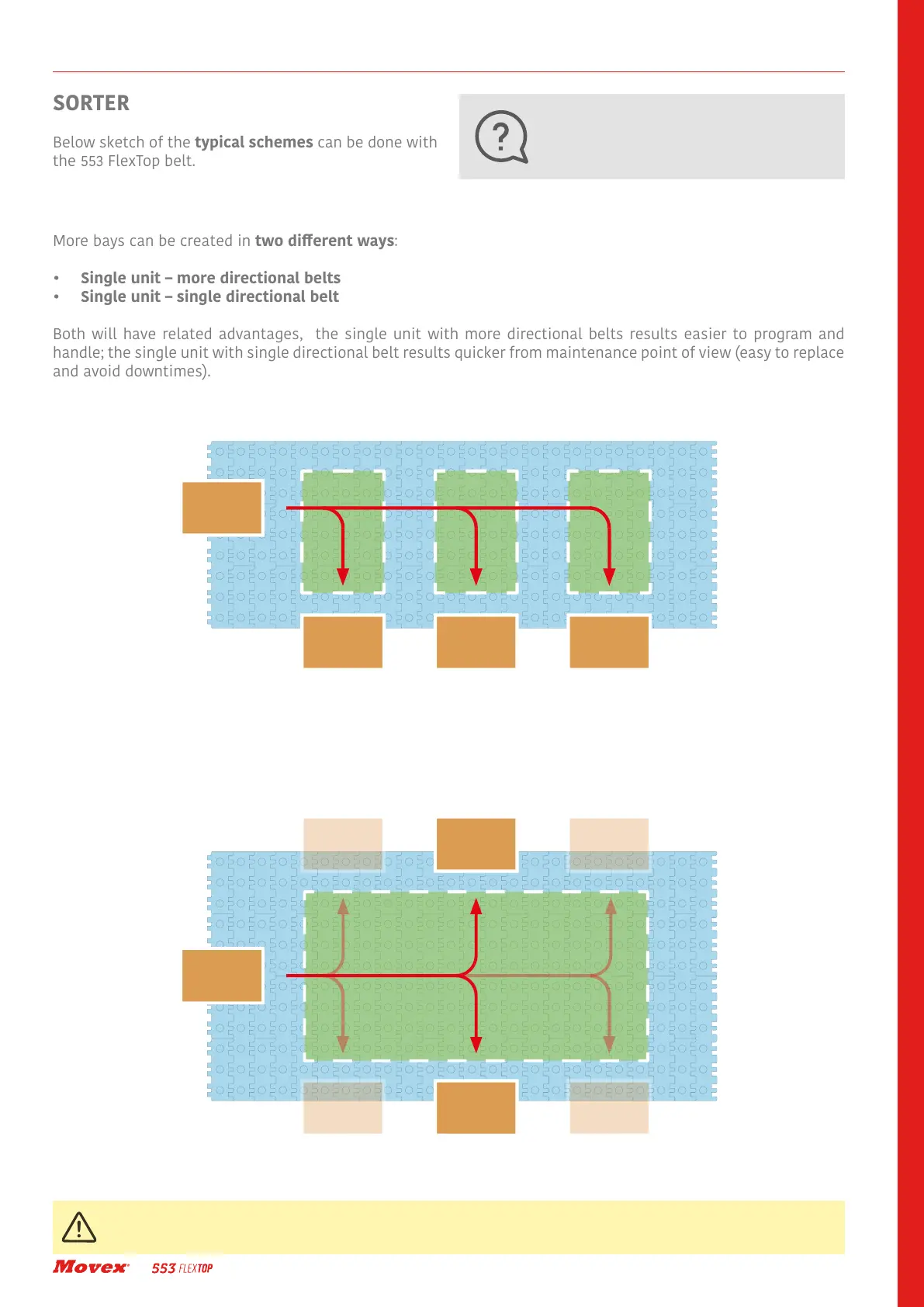

Below sketch of the typical schemes can be done with
the 553 FlexTop belt.
More bays can be created in two dierent ways:
• Single unit – more directional belts
• Single unit – single directional belt
Both will have related advantages, the single unit with more directional belts results easier to program and
handle; the single unit with single directional belt results quicker from maintenance point of view (easy to replace
and avoid downtimes).
90° SORTING - One side - more directional belts
1 553 FlexTop belt - 3 Directional belts
One side sorting can also be done with single directional belt (see the example below)
Two sides sorting can also be done with more directional belts (see the example above)
90° SORTING - Two sides - single directional belt
1 553 FlexTop belt - 1 Directional belt
When using a single directional belt, goods can take the exit only one by one and the next good can’t run over
the directional belt if the previous one is on its exiting direction (that will compromise its direction).
!
