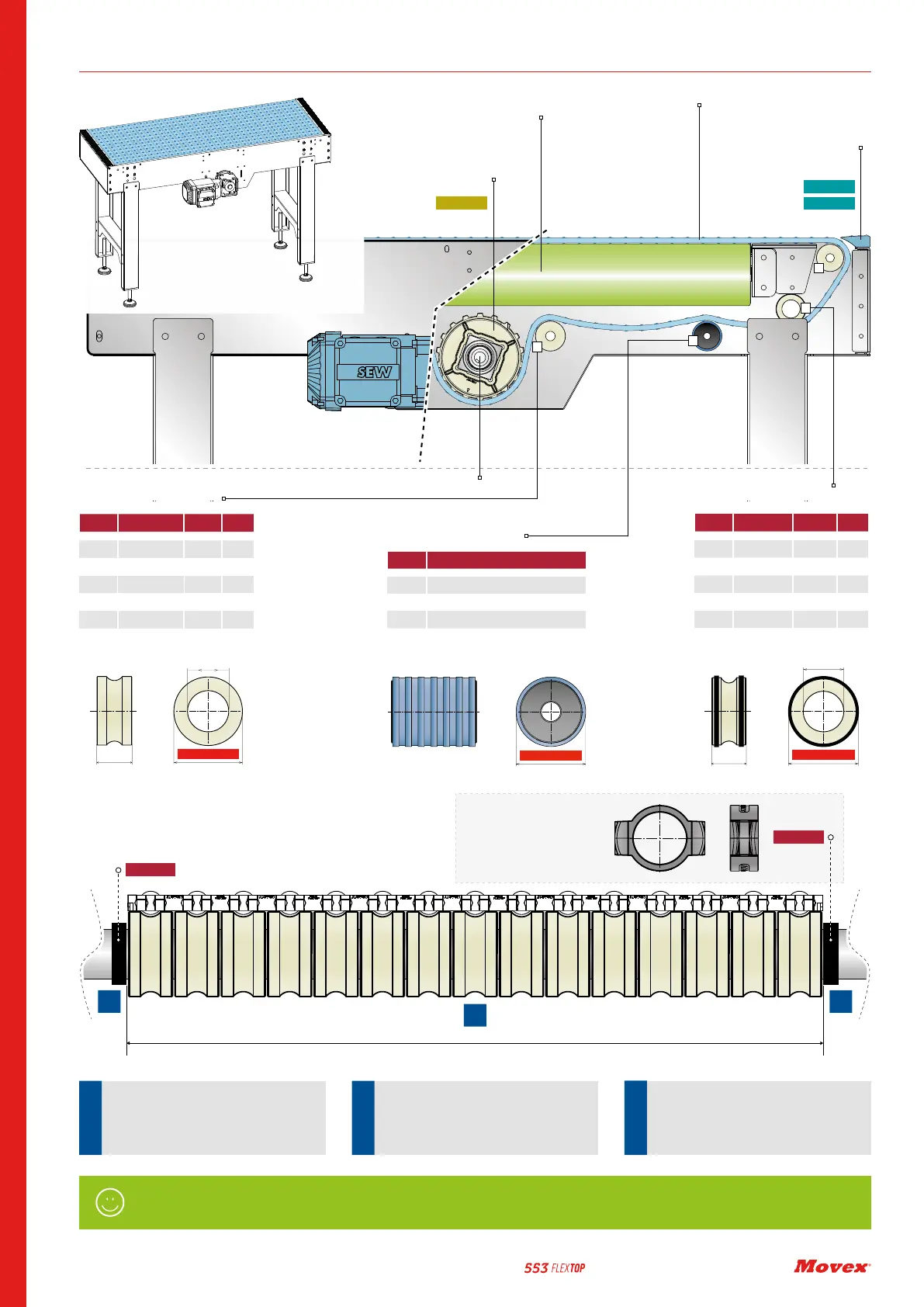

Movex 553 FLEXTOP - Return rollers

To Next Page

To Previous Page

Return rollers ﬁxation

Belt width + 2 mm

PART 215

See Movex General Catalog to ﬁnd the

article number that meets your needs.

Directional belt

or Rotating plate

553 FlexTop belt

Transfer module

with rollers

Drive shaft

Return rollers with rubber

ØE

Ø47 - Ø57 - Ø67

Part ØE

220 47

203 57

204 67

See Movex General Catalog to ﬁnd the

article number that meets your needs.

Return rollers with grooves

and seals

ØA

ØE

Ø53 - Ø63 - Ø73

25,4

Part Article ØE ØA

237 23701 53 25

237 23702 53 30

237 23703 63 25

237 23704 63 30

237 23705 73 25

237 23706 73 30

PART 166

Return rollers

Return rollers with grooves

Part Article ØE ØA

236 23601 50 25

236 23602 50 30

236 23603 60 25

236 23604 60 30

236 23605 70 25

236 23606 70 30

ØA

25,4 ØE

Ø50 - Ø60 - Ø70

553 FlexTop sprockets

PART 368

PART 369

ENGINEERING MANUAL

Fix the ﬁrst split collar on the shaft. Slide in the shaft required number of

Return Rollers (e.g. for belt width 15”, 15

rollers are required).

Fix the second split collar at a distance

of “Belt width +2mm” (this will guarantee

enough play between rollers and belt

spheres).

For our 553 FlexTop Conveyor solution, contact your sales representative.
