Movex 553 FLEXTOP - Wear Strips and Machined Plates

For the complete profile range, please see the Movex general catalogue.
PART 103
PART 1000/1002
PART 1060
6 12
25,4 25,4 76,225,4
ENGINEERING MANUAL 29

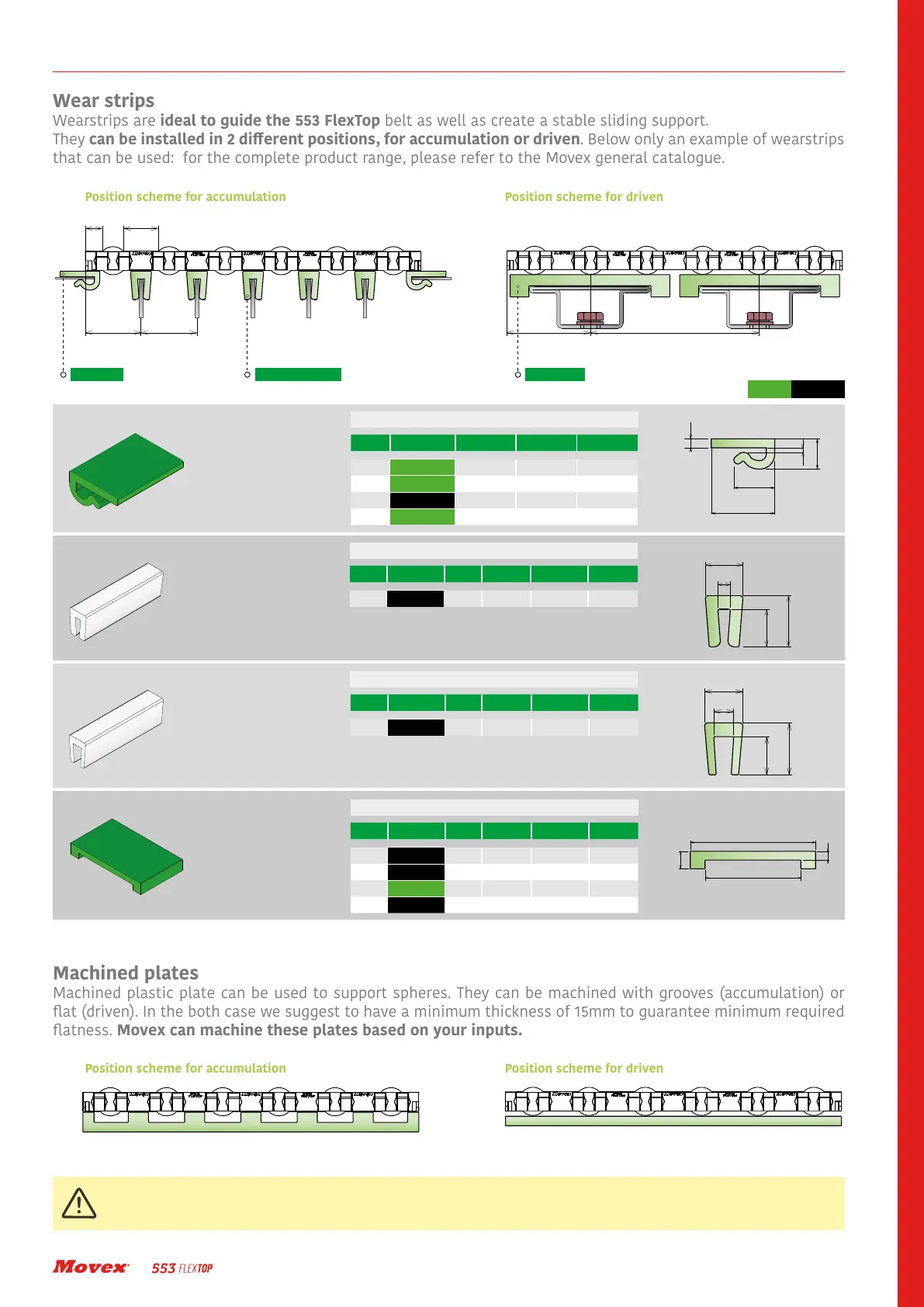

Wear Strips and Machined Plates
Wear strips
Wearstrips are ideal to guide the 553 FlexTop belt as well as create a stable sliding support.
They can be installed in 2 dierent positions, for accumulation or driven. Below only an example of wearstrips
that can be used: for the complete product range, please refer to the Movex general catalogue.
Position scheme for accumulation
Position scheme for driven
Position scheme for driven
Delivery: Easy Standard
Machined plates
Machined plastic plate can be used to support spheres. They can be machined with grooves (accumulation) or
flat (driven). In the both case we suggest to have a minimum thickness of 15mm to guarantee minimum required
flatness. Movex can machine these plates based on your inputs.
103
PART
21
13.5
3
10
1.5
Fit on 2,5 to 3,5 mm
Z-clip profile without nose
Part Article-Nr. Colour Availability Supply
103 10301 black Stock item 60 m coils
103 10302 green Stock item 60 m coils
103 10303 white Stock item 60 m coils
103
10300B-30
BluLub
Stock item 30 m coils
1000
PART
2
6.35
6.35
8.6
Part Article-Nr. L Colour Availability Supply
1000
100003-30
30 m white On request 30 m coils
Fit on 1.5 mm
Bar cap 1.5 mm
1060
PART
55
72
10
5
Part Article-Nr. L Colour Availability Supply
1060 106001C 3 m black Stock item 3 m bars
1060 106001 6 m black On request 6 m bars
1060 106002C 3 m green Stock item 3 m bars
1060
106002
6 m green On request 6 m bars
On request available in white color
U-profile
3.3
6.35
6.35
8.6
1002
PART
Fit on 3 mm
Bar cap 3 mm
Part
Article-Nr.
L Colour Availability Supply
1002
100203-30
30 m white On request 30 m coils
Position scheme for accumulation
Pay attention: different sliding material (directional belt and support plate) may have differences in friction, therefor
spheres may run with different speeds. To keep the same speed, it is suggested to use the same material (same hardness).
!
