3. PARTS DESCRIPTION

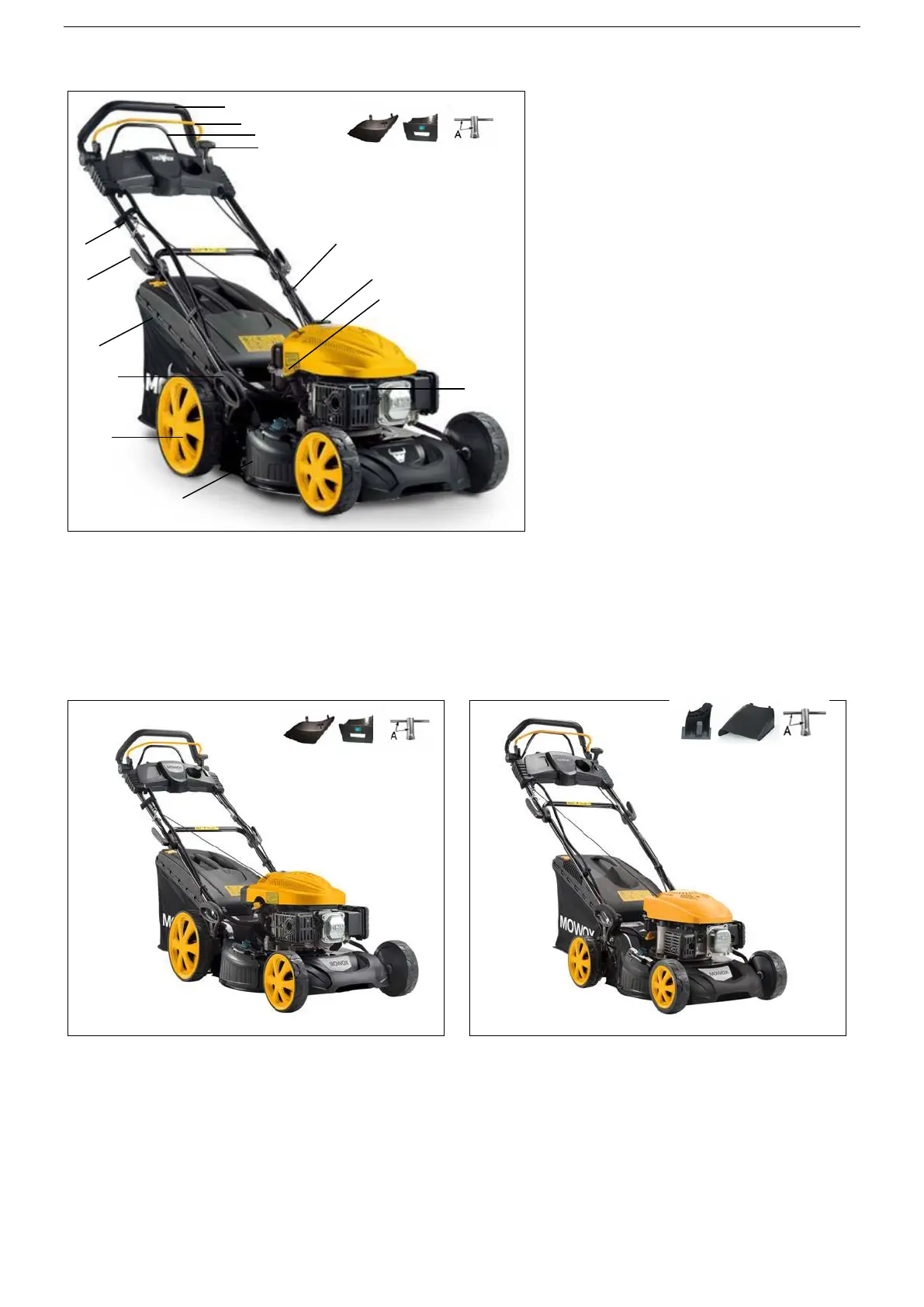

Fig.1A PM 4645 SEHW(DYM1676CD-3)
1. Starter handle 2. Locking lever 3. Grass catcher 4. Height adjusting lever
5. Wheel 6. Sideward flap 7. Spark Plug 8. Oil cap
9. Fuel cap 10. Cable clamp 11. Throttle choke lever 12. Self-drive control handle
13. Brake control handle 14. Upper handle 15. Side discharge channel 16.Mulching wedge
Including: A: Spark plug wrench
