Overview
NPort 5100A series device servers are compact, palm-sized data
communication devices that allow you to control RS-232 (NPort 5110A),
RS-422/485 (NPort 5130A), and RS-232/422/485 (NPort 5150A) serial
devices over a TCP/IP-based Ethernet.
“-T” indicates an extended temperature model.
Package Checklist
Before installing the NPort 5100A series device server, verify that the
package contains the following items:
• 1 NPort 5100A serial device server
• 100 to 240 VAC power adapter (excluding T models)
• 4 stick-on pads
• Quick Installation Guide
• Product Warranty Statement
Optional Accessories
• DK-35A: DIN-Rail Mounting Kit (35 mm)
Notify your sales representative if any of the above items are
missing or damaged.
The operating temperature of the power adapter in the box is
from 0 to 40°C. If your application is out of this range,
please
use a power adapter supplied by UL Listed External Power
Supply (The power output meets SELV and LPS and rated 12
-
48 VDC, minimum current 0.73 A). Moxa has power adapters
with wide temperature range (
-40 to 75°C, -40 to 167°F), the
PWR-12150-(plug type)-SA-T series, for your reference.
Hardware Introduction

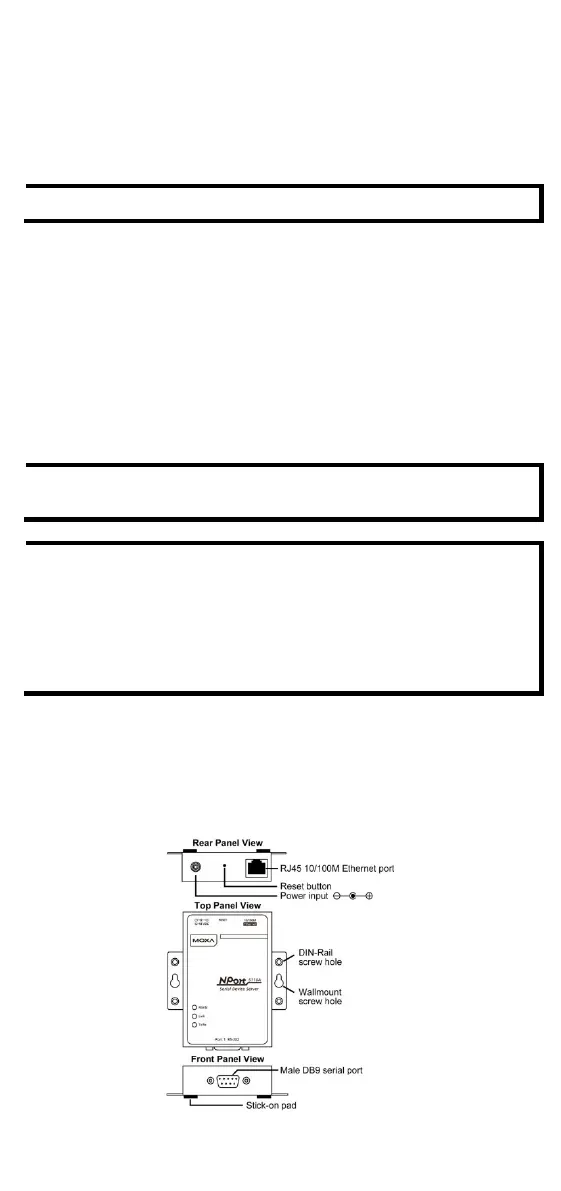

As shown in the following figures, NPort 5100A series device servers
have one male DB9 port for transmitting RS-232 (NPort 5110A), RS-
422/485 (NPort 5130A), or RS-232/422/485 (NPort 5150A) serial data.
