NPort 5000 Series User Manual
187

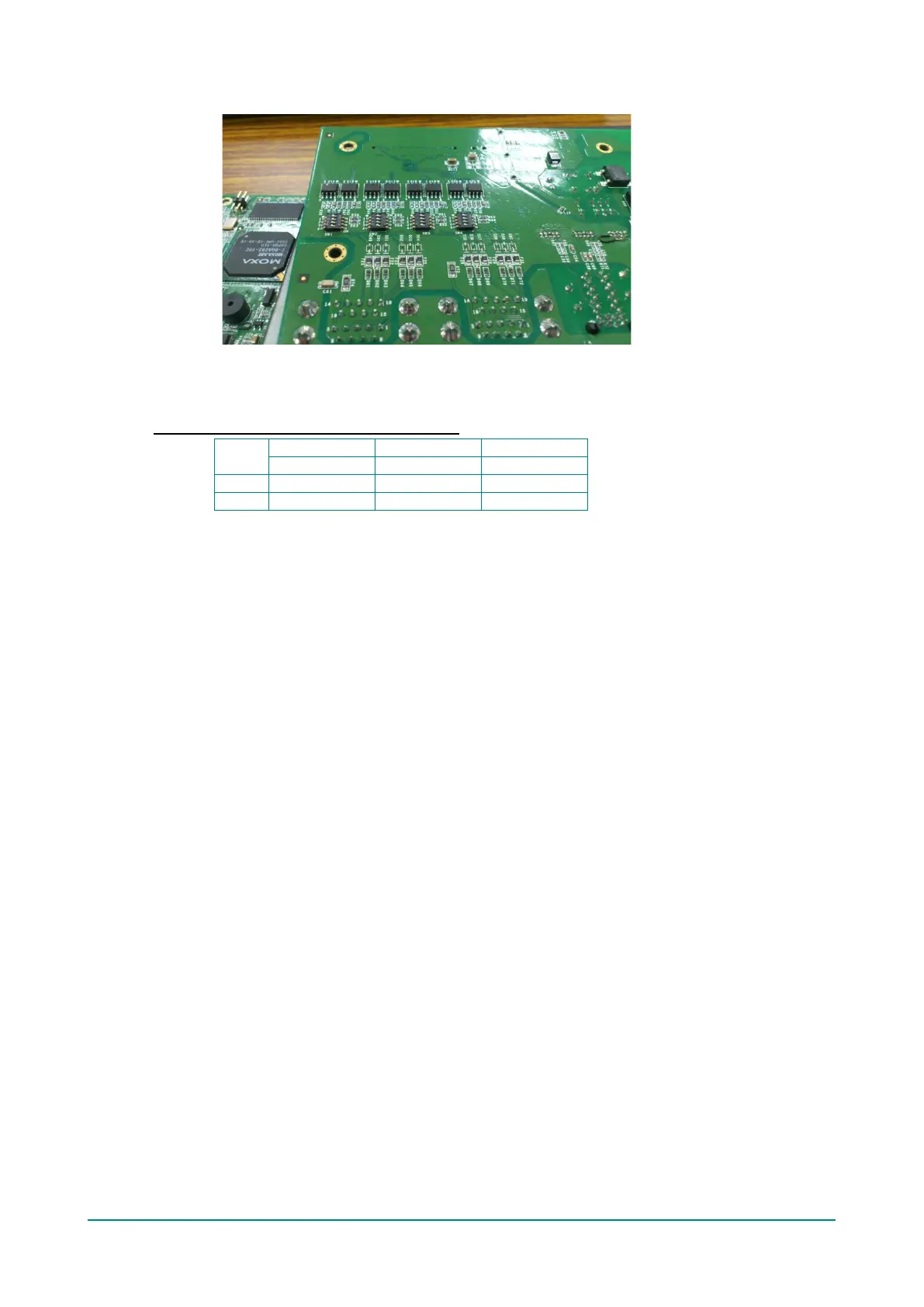

Step 4: Pull-high/low DIP switches are on the backside of the board
From right to left, the DIP switches are used for port 1 to port 4. SW1 is used for port 1, SW2 for port 2,
SW3 for port 3, and SW4 for port 4. The functions of DIP1, DIP2, and DIP3 are shown in the following table
(DIP4 is reserved).
Pull-high/low Resistors for the RS-485 Port
Default
SW
DIP1
DIP2
DIP3
Pull-high
Pull-low
Terminator
ON
1 kΩ
1 kΩ
120 kΩ
OFF
150 kΩ
150 kΩ
–
