Moxa Technologies NPort 5450AI-M12 Quick Installation Guide

- 4 -

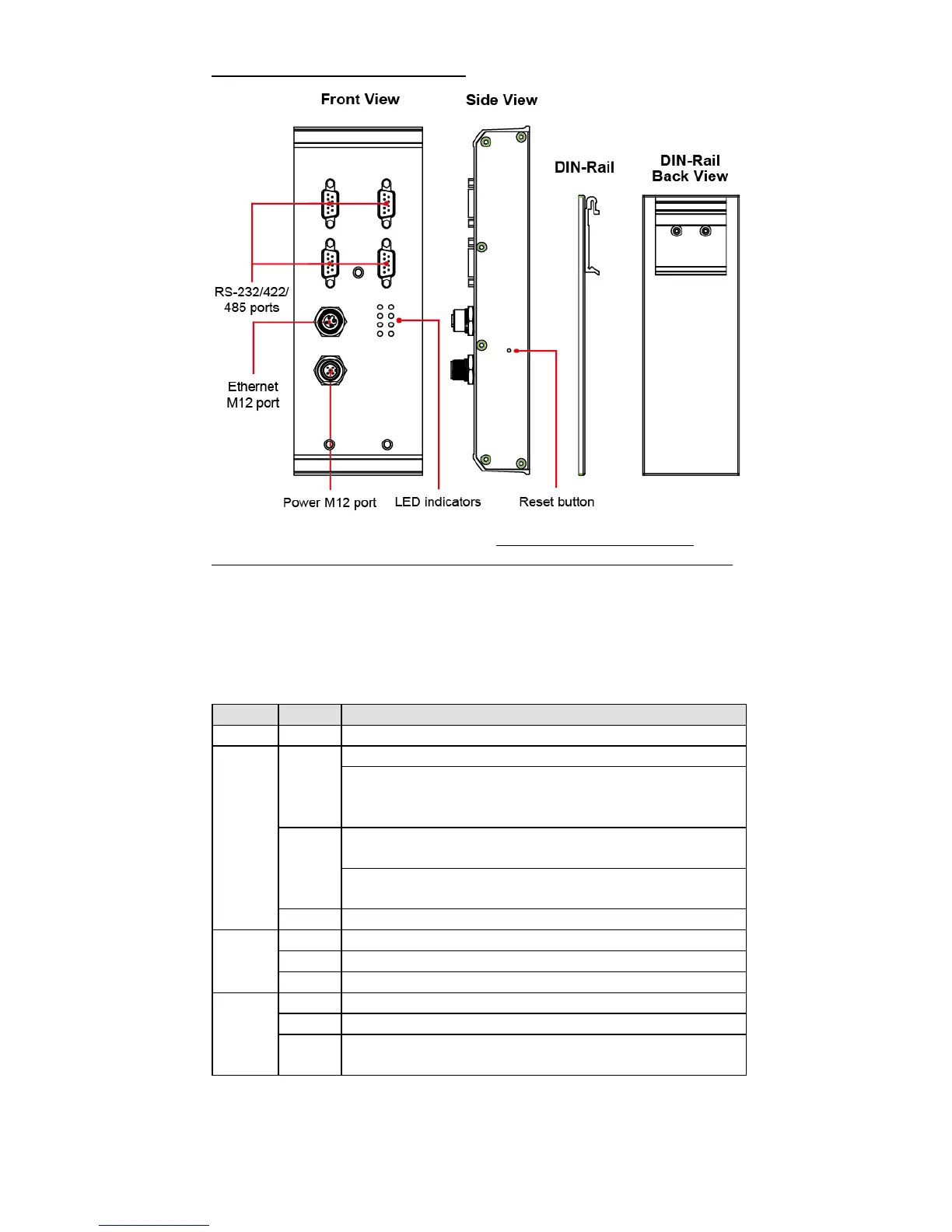

NPort 5450AI-M12 Appearance
The Reset to Default Button—Press the reset button to default
button for five seconds continuously to load the factory default settings.
Use a pointed object, such as a straightened paper clip or toothpick, to
press the reset button to default button. This will cause the Ready LED
to blink on and off. The factory default settings are loaded once the
Ready LED stops blinking (after about five seconds). At this point, you
can release the reset button to default button.
NPort 5000AI-M12 LED Indicators (front panel)
Name
Color
Function
PWR
green
Power is being supplied to the power input.
Ready
red
Steady on:
Power is on, and NPort is booting up.
Blinking:
Indicates an IP conflict, or the
DHCP/BOOTP server did not respond
properly.
green
Steady on:
Power is on, and NPort is functioning
normally.
Blinking:
The NPort has been located by NPort
Administrator’s Location function.
off
Power is off, or a power error condition exists.
10M,
100M
orange
10 Mbps Ethernet connection.
green
100 Mbps Ethernet connection.
off
Ethernet cable is disconnected.
P1, P2,
P3, P4
orange
Serial port is receiving data.
green
Serial port is transmitting data.
off
No data is being transmitted or received through the
serial port.

Moxa Technologies NPort 5450AI-M12 Specifications

General

Certification	CE, FCC, EN 55022 Class A, FCC Part 15 Subpart B Class A, EN 55024, EN 50155, EN 50121-4, IEC 60068-2-6
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
RS-422 signals	GND, RxD+, RxD-, TxD+, TxD-
RS-485 signals	Data+, Data-, GND, RxD+, RxD-, TxD+, TxD-
Flow control support	Yes
Serial interface type	RS-232/422/485
Serial ports quantity	4
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2, LLDP
Input voltage	12 - 48 V
Operating temperature (T-T)	-25 - 55 °C
Safety	UL 60950-1, EN 60950-1
Compatible operating systems	Windows 98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8 x86/x64, 2012 x64\\r SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac 10.3\\r Linux kernel 2.4.x, 2.6.x, 3.x

Weight and Dimensions

Weight	686 g
Dimensions (WxDxH)	80 x 216.6 x 52.9 mm
