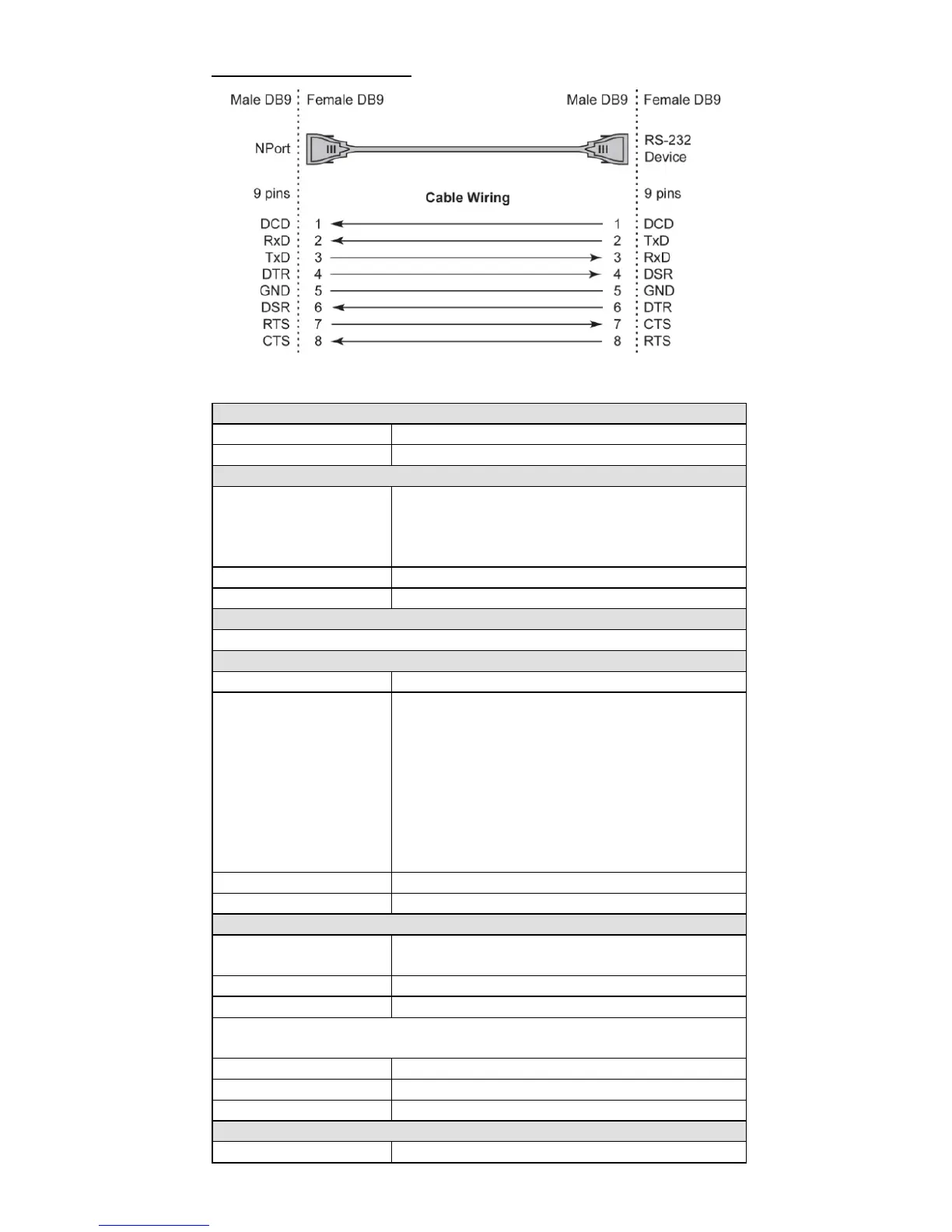

Female DB9 to Male DB9
Specifications
Physical Characteristics
Housing
Metal, IP40 protection
Dimensions
80 x 216.6 x 52.9 mm (3.14 x 8.53 x 2.08 in)
Environmental Limits
Operating Temperature
• Standard Models:
-25 to 55°C (32 to 140°F)
• Wide Temperature Models:
-40 to 75°C (-40 to 167°F)
Operating Humidity
5 to 95% RH
Storage Temperature
-40 to 85°C (-40 to 185°F)
Conformal coating
Available on –CT models
Power Input (Need to modularize)
Input Voltage
12/24/36/48 VDC (8.4 to 60 VDC)
Power Consumption
NPort 5150AI-M12: 310 mA @12V
NPort 5150AI-M12-CT: 310 mA @12V
NPort 5150AI-M12-T: 310 mA @12V
NPort 5250AI-M12: 360 mA @12V
NPort 5250AI-M12-CT: 360 mA @12V
NPort 5250AI-M12-T: 360 mA @12V
NPort 5450AI-M12: 440 mA @12V
NPort 5450AI-M12-CT: 440 mA @12V
NPort 5450AI-M12-T: 440 mA @12V
Connector
M12 5-pin male connector
Power Line Protection
Meets EN 50155 certification
Regulatory Approvals
EMC
CE (EN 55032 Class A, EN 55024) (EMI),
FCC Part 15 Subpart B Class A (EMS)
Safety
UL (UL60950-1)
Rail Traffic
EN 50155*, EN 50121-4
*Complies with a portion of EN 50155 specifications. Please contact
Moxa or a Moxa distributor for details.
Shock
IEC 61373
Vibration
IEC 61373
Freefall
IEC 60068-2-32
Reliability
Alert Tools
Built-in buzzer and RTC

Moxa Technologies NPort 5450AI-M12 Specifications

General

Certification	CE, FCC, EN 55022 Class A, FCC Part 15 Subpart B Class A, EN 55024, EN 50155, EN 50121-4, IEC 60068-2-6
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
RS-422 signals	GND, RxD+, RxD-, TxD+, TxD-
RS-485 signals	Data+, Data-, GND, RxD+, RxD-, TxD+, TxD-
Flow control support	Yes
Serial interface type	RS-232/422/485
Serial ports quantity	4
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2, LLDP
Input voltage	12 - 48 V
Operating temperature (T-T)	-25 - 55 °C
Safety	UL 60950-1, EN 60950-1
Compatible operating systems	Windows 98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8 x86/x64, 2012 x64\\r SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac 10.3\\r Linux kernel 2.4.x, 2.6.x, 3.x

Weight and Dimensions

Weight	686 g
Dimensions (WxDxH)	80 x 216.6 x 52.9 mm
